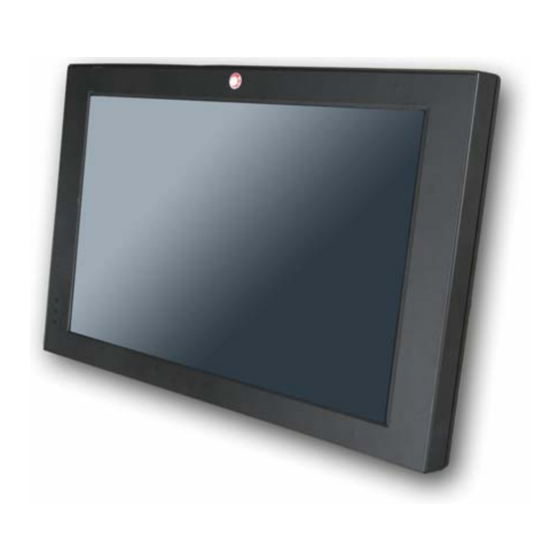

- Page 1 User’s Manual SPPC70-5B-C1G SPPC70-5B-C15G SPOS70-5B-C1G SPOS70-5B-C15G...
-
Page 3: Copyrights
Copyrights communications. However, there is no guarantee that interference will not occur in a particular ©2007 EBN Technology Corp. All rights reserved. The installation. If this equipment does cause harmful information in this document is subject to change without interference to radio or television reception, which... -
Page 4: Weee Notice
WEEE Notice The WEEE mark applies only to countries within the European Union (EU) and Norway. This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE). The Directive determines the framework for the return and recycling of used appliances as applicable throughout the European Union. -
Page 5: Table Of Contents
Contents Copyrights ....................i Liability Disclaimer ...................i Regulatory Information................i FCC Notices......................i CE Notice ......................i WEEE Notice......................ii Contents....................iii Introduction ....................1 Unpacking the Box...................2 Hardware Setup..................3 3.1. Quick Tour....................3 Front View...................... 3 Back Panel I/O ....................4 3.2. Battery Pack Installation................4 3.3. - Page 6 TouchKit Utility Quick Guide..............26 6.1. Launch Touchscreen V7.3.COM..............26 6.2. User interface ..................... 26 6.3. Serial Port Information ................27 6.4. Virtual Button Settings ................27 Virtual Button Option ..................27 Right Button Function .................. 28 Right Button Automatic Mode............... 29 6.5.
-
Page 7: Introduction
Introduction Features: Intel® low power consumption and high performance technology Durable ultra-slim & robust die-casting aluminum chassis Smart Battery Backup - supply voltage more than one hour without any external power supply 4 x USB 2.0,1 x RS-485/422/232, 3 x RS-232, Gigabit Ethernet port (RJ-45), cash drawer port (RJ-11) and 1 X parallel port equipped Video Module (Optional) Wireless LAN supported... -
Page 8: Unpacking The Box
Unpacking the Box Verify that the box contains the following items. Device X 1 Power Adaptor X 1 Power Cord X 1 Driver and utility CD X 1 Wall mount Kit x 1 Chapter 3... -
Page 9: Hardware Setup
Hardware Setup 3.1. Quick Tour Front View LED Indicator The Power indicator will glow green when power is on. The HDD indicator will blink green when the HDD is accessed. The LAN indicator will blink green when transferring data though the LAN. Chapter 3... -
Page 10: Back Panel I/O
Back Panel I/O Note: For details of I/O ports on the back panel, please refer to Chapter 7 – I/O Definition. 3.2. Battery Pack Installation Before power-on the device, please install the battery (optional accessory) to the mainboard: 1. Un-tighten four screws on the back panel anticlockwise. Chapter 3... - Page 11 2. Open the back panel. 3. Separate the back panel from the front panel by lifting up and lay it down carefully. 4. Un-tighten the two screws fixing the battery bracket. Chapter 3...
- Page 12 5. Insert the battery into the battery bracket as shown below. 6. Tighten the two screws to fix the battery bracket. 7. Plug the power cable to the 9-pin power connector in the correct orient. Chapter 3...
-
Page 13: Peripherals Installation
8. Close the back panel and tighten the four screws on the back panel. 3.3. Peripherals Installation Power Adapter Connect the 4-pin output jack of the adapter to the DC 19V jack on the back panel of the device. USB Mouse, USB Keyboard and USB ODD Connect your USB Mouse, USB Keyboard and USB ODD to USB ports on the back panel of the device. -
Page 14: Lan Cable
LAN Cable Connect one end of RJ-45 LAN cable to the LAN port on the back panel of the device, another end to your internet device. Cash Drawer Connect one end of RJ-11 cable to the Cash Drawer port on the back panel of the device, another end to your cash drawer. -
Page 15: Msr Installation
MSR Installation 1. Remove the three plastic covers from the device as shown below. 2. Open the device as steps describe in the section. 3.2. 3. Pass the MSR cable through the hole of the chassis as shown below. Chapter 3... - Page 16 4. Plug the MSR to the connector in the correct orient. 5. Tighten two screws of the MSR assembly as shown below. 6. Close the back panel and tighten the four screws on the back panel. 7. Finished. Chapter 3...
-
Page 17: Wall Mount Kit Installation
3.4. Wall mount Kit installation 1. Separate the wall mount kit. 2. Align the screw holes of the wall mount kit to the holes of the device and tighten the four screws. 3.4. Turn on the Device 1. Make sure all peripherals are connected properly. 2. -
Page 18: Driver And Utility Installation
Driver and Utility Installation 4.1. Before the installation All installation procedures described below are based on Microsoft Windows XP. 1. Connect an external USB CDROM drive to the USB port and insert the driver CD and turn on the device. The program autoruns and displays the DRIVER BANK screen. - Page 19 2. Click Next. 3.1. Click Next. 3.2. Read the License Agreement carefully and click Yes. 4. Click Next. Chapter 4...
-
Page 20: Vga Driver Installation
5.1. Select restart your computer right now or later. 5.2. Click Finish. 4.3. VGA Driver Installation 1. Click Graphic Driver. 2. Click VGA Driver for WIN2K/XP. Chapter 4... - Page 21 3. Click Next. 3.1. After files extracted, click Next on the welcome screen. 4. Read the License Agreement carefully and click Yes, and then the installation starts. 5.1. Select restart your computer right now or later. 5.2. Click Finish. Chapter 4...
-
Page 22: Lan Driver Installation
4.4. LAN Driver Installation 1. Click RTL81x0 LAN Driver. 1.1. On the welcome screen, click Next. 1.2. Click Install to begin the installation. 3. Click Finish. Chapter 4... -
Page 23: Audio Driver Installation
4.5. Audio Driver Installation 1. Click AC’97 Audio Driver. 2. Configures new software installation. 3. Click Configure Anyway. Chapter 4... -
Page 24: Wireless Lan Driver Installation
4. AC’97 drivers begins to install. 5.1. Select restart your computer right now or later. 5.2. Click Finish. 4.6. Wireless LAN Driver Installation 1. Click AC’97 Audio Driver. Chapter 4... - Page 25 2. On the welcome screen, click Next, and then the installation begins. 3.1. Select restart your computer right now or later. 3.2. Click Finish. Chapter 4...
-
Page 26: Power Management
Power Management The backup battery equipped on SPPC 70 series is as “smart” as the battery for Notebook or handheld device; you can adjust any power management option that your unique hardware configuration supports. 5.1. Enter Power Option Properties Sheet There are two alternatives to enter Power Options Properties property sheet. -
Page 27: How To Set Power Options
Option 2: 1. Click Start, click Settings, click Control Panel, and then double-click Power Options. 5.2. How to Set Power Options Power Schemes You can configure power settings under Power Schemes tab. Under Power schemes area, click the drop-down list to choose a power scheme to apply settings that fit the way you use SPPC 70. -
Page 28: Alarms
Alarms You can set two kinds of low battery warning you’ll receive when battery power gets low and what action will be taken for SPPC 70 under Alarms tab. Low battery alarm and Critical battery alarm Check the box to enable Low battery alarm and Critical battery alarm function. - Page 29 Click Alarm Action to enter alarm actions setting sheet. On alarm actions setting sheet, select the type of alarm notification, which action SPPC 70 will take and which program will launch when the alarm occurs. Chapter 5...
-
Page 30: Power Meter
Power Meter You can check power status under Power Meter tab. Check or uncheck the box to switch icon view and bar chart view. Under the icon mode, click the battery icon to show the detailed information about the battery. Chapter 5... -
Page 31: Advanced
Advanced You can specify power-saving settings by checking boxes in Options area and clicking drop-lists in Power button under Advanced tab. Hibernate Enable the hibernate function by checking Enable hibernation box. Chapter 5... -
Page 32: Touchkit Utility Quick Guide
TouchKit Utility Quick Guide 6.1. Launch Touchscreen V7.3.COM 1. Under Microsoft Windows XP, click “start” menu and select “Programs”, under ”Touchscreen V7.3.COM” menu, click “Touchscreen Control Panel V7.3.COM”, the control panel of the program shows. 6.2. User interface Serial Port Display serial port information of the system. -
Page 33: Serial Port Information
6.3. Serial Port Information Click Serial Port button, the serial port information shows. Click OK to back to the control panel. 6.4. Virtual Button Settings Click Virtual Button button, the dialogue box shows: The selected option will be in black. Virtual Button Option Under Virtual Button Option group box, there are four options: ˙Stream Mode... -
Page 34: Right Button Function
˙Touch Down Mode Under Touch Down Mode, one single-tapping equals one left mouse clicking. ˙Drag Drop Mode Drag Drop mode allows you to select an object on the screen by tapping, and then slide the selected object to a new location on the screen, the selected object will be dropped on the new location by releasing the touch. -
Page 35: Right Button Automatic Mode
Right Button Automatic Mode Toggle On time is the duration between the tapping on the screen and that the right mouse button is “virtually” pressed and held. Release the tapping from screen after toggle-on, the pop-up menu shows. The minimize value is 0.5 and maximum value is 5. This option defines how long the right button function will be off. -
Page 36: Tone
No any sound effect. Touch Down Only When this option is selected, there will be one “beep” sound when tapping on the screen. Lift Off Only When this option is selected, there will be one “beep” sound when releasing from the screen. Both Touch Down &... -
Page 37: Points, Mode 1
4 points, mode 1 a. The mark shows on the Left-up corner. b. Follow the instruction in green to touch the center of Cross Mark. c. When the instruction turns into yellow, releasing the tapping from the screen. d. Follow the instruction in green to touch the center of Cross Mark. e. -
Page 38: How To Use Event Selector
3. When the calibration procedure is completed, the message shows: To save the new calibration, click Yes, to restore the old calibration, click No. How to Use Event Selector 1. On the desktop of Windows, click icon. icon change to 3. -
Page 39: I/O Definition
I/O Definition Please refer the detailed technical information about all I/O ports as followings. 7.1. Power Connector Description Description +19V GROUND +19V GROUND 7.2. Serial Port COM Port 1/2/3/4 Description Description RI / 5V /12V Chapter 7... -
Page 40: Ps2/Com
7.3. PS2/COM PS2/COM Description Description PIN Description PC_CLK )KEYBOARD) KB_DAT KB_CLK RI / 5V /12V PC_DAT KB_EN (KEYBOARD) 7.4. Cash Drawer Connector Description Description D_OUT D_IN Chapter 7... - Page 41 Cash Drawer Control Status Address Value Open 280H Bit 4 = 0 Close 280H Bit 4 = 1 Read Status 281H Bit 0 = 0/1 Chapter 7...
-
Page 42: Specification
Specification Chapter 8... - Page 43 Main Board ® Intel Ultra Low Voltage Celeron M 1GHz w/o L2 cache ® Intel Celeron M 1.5GHz L2 cache 1M Chipset Intel 852GM + ICH4 System Memory SO-DIMM DDR266/333, 128MB up to 1GB Thermal Solution Fan-less Microsoft Windows XP Professional, XPE, WEPOS, Windows CE, Linux Storage Device 1 x SATA , 2.5"...
- Page 44 Chapter 8...
