Summary of Contents for EBN POS50A-5B-LX800

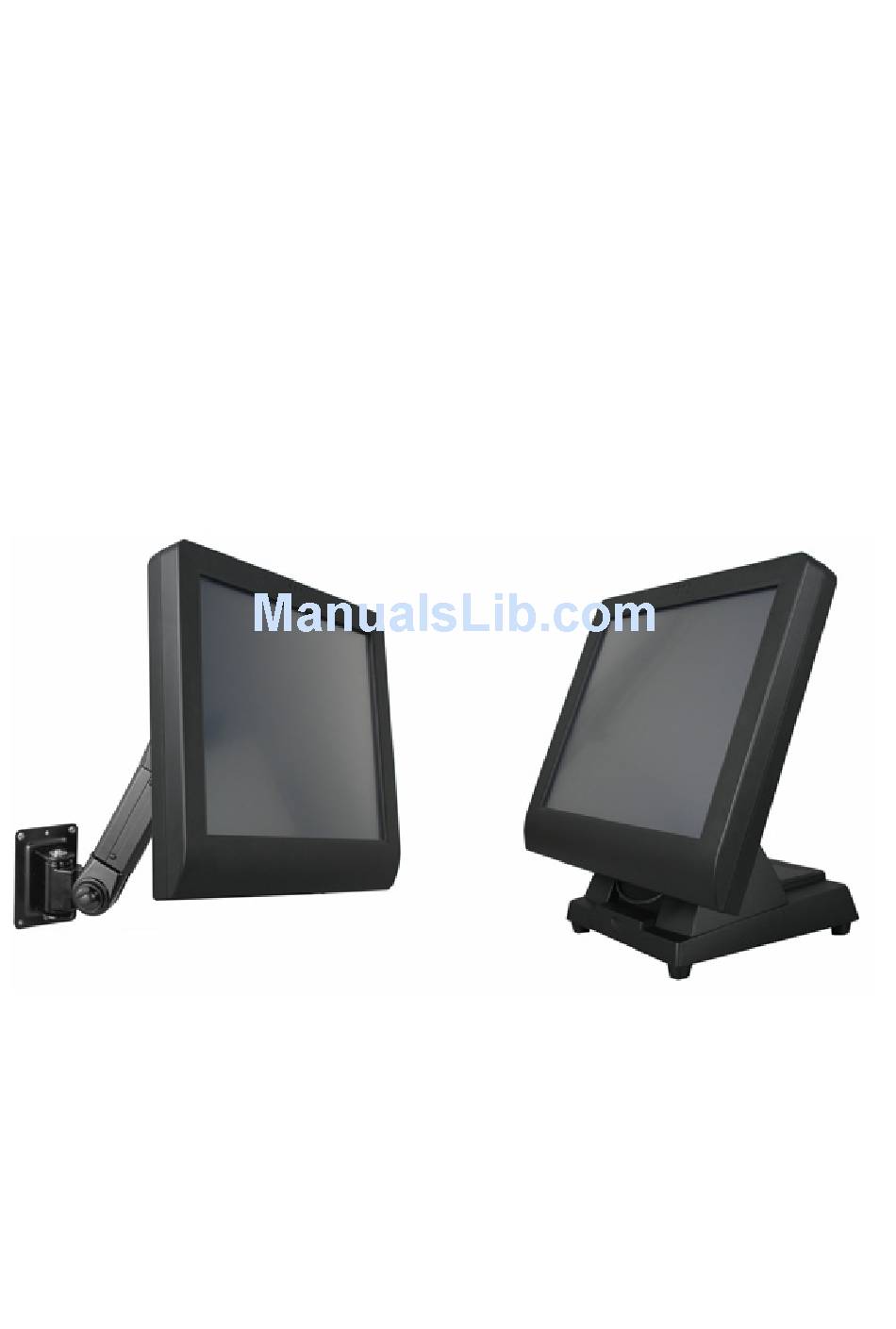

- Page 1 Service Manual...
-
Page 2: Liability Disclaimer
Copyrights ©2007 All rights reserved. The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer. This document contains proprietary information protected by copyright. -
Page 3: Table Of Contents
Contents Copyrights ....................i Liability Disclaimer ...................i Contents....................ii Before You Start ..................1 Base Unit Dissemble ( POS50A-Series Only ) .........2 POS50A-Series Only The Main Uni t ....................7 The Main Unit 3.1. Opening the Device..................7 3.2. HDD Disassemble ..................8 3.3. EMI AD Cover Disassemble................. 8 3.4. -
Page 4: Before You Start
Before You Start 1. Please unplug the power cable before you start to work. 2. Please read and follow the instructions in this document carefully. Failure to follow these instructions could damage your device and void the warranty. 1.1. Tools Suggested All procedures in this document require the following tools: #0 Phillips screwdriver #1 Phillips screwdriver... -
Page 5: Base Unit Dissemble ( Pos50A-Series Only )
Base Unit Dissemble ( 1. Adjust the main unit to the position as shown below. 2. Unplug the power adapter connecter. 3. Loosen and remove the four screws fixing the base unit by #1 Phillips screwdriver. Chapter 2... - Page 6 4. Remove the right hinge cover, left hinge cover and support cover as shown below. 5. Remove the base unit. 6. Loosen the four screws to remove the four rubber pads by #1 Phillips screwdriver. Chapter 2...
- Page 7 7. Remove the base chassis. 8. Unplug the AC inlet as shown below. 9. Loosen and remove the two screws fixing the power adapter bracket by #1 Phillips screwdriver. Chapter 2...
- Page 8 10. Remover the power adapter and the power adapter bracket. 11. Loosen and remove the two screws fixing the AC inlet bracket by #1 Phillips screwdriver. 12. Loosen and remove the screw fixing the grounding wire by #1 Phillips screwdriver. Chapter 2...
- Page 9 13. Remove the AC inlet. Chapter 2...
-
Page 10: The Main Uni The Main Unit T
3.1. Opening the Device 1. Loosen and remove the twelve screws fixing the back cover by #1 Phillips screwdriver. 2. Remove the back cover. Chapter 3... -
Page 11: Hdd Disassemble
3.2. HDD Disassemble 1. Disconnect the IDE cable and loosen the four screws fixing the HDD as shown below. 3.3. EMI AD Cover Disassemble 1. Loosen and remove the twelve screws fixing EMI AD cover by #1 Phillips screwdriver. Chapter 3... - Page 12 2. Loosen and remove the four hexagonal bolts fixing COM ports by hexagon socket spanner. 3. Open the EMI AD cover. 4. Unplug the power switch to remove the EMI AD cover. Chapter 3...
-
Page 13: Led Indicator Disassemble
5. Unplug the IDE cable. 3.4. LED Indicator Disassemble 1. Unplug the LED indicator connecter from the main board. 2. Unplug the three green LED indicator from the LED bracket. Chapter 3... -
Page 14: Speaker Assembly Disassemble
3.5. Speaker Assembly Disassemble 1. Unplug the Speaker Assembly connecter from the main board. 2. Remove the two screws fixing the speaker. 3. Remove the two screws fixing the speaker. Chapter 3... -
Page 15: Inverter Disassemble
3.6. Inverter Disassemble 1. Unplug the inverter cable. 2. Unplug the connecter as shown below. 3. Unplug the connecter as shown below. 4. Loosen and remove the two screws fixing the inverter by #1 Phillips Chapter 3... -
Page 16: Ram Replacement
screwdriver. 3.7. RAM Replacement 1. Open the tow ejectors on the slot by pushing them, and remove the RAM from the slot. 2. Remove the old RAM and install a new one. 3. Align and insert the new RAM in the slot and push both ends of the RAM down until the ejectors snap into place. -
Page 17: Main Board Disassemble
3.8. Main Board Disassemble 1. Unplug the LCD cable. 2. Unplug the touch panel connecter as shown below. Chapter 3... -
Page 18: Lcd Panel Assembly Dissemble
3. Loosen and remove the four screws fixing the main board by #1 Phillips screwdriver. 4. Remove the LX-800 main board. 3.9. LCD Panel Assembly Dissemble 1. Loosen the two screws fixing the LED lens by #1 Phillips screwdriver as shown below. - Page 19 2. Loosen and remove the ten screws fixing the back cover by #1 Phillips screwdriver. 3. Remove the LCD panel assembly as shown below. 4. Loosen the four screws as shown below. Chapter 3...
- Page 20 5. Loosen the three screws fixing the touch panel other sides as shown below. 6. Remove the touch panel. 7. Remove the LCD panel. Chapter 3...
