Summary of Contents for EBN DNPOS70P-5BTH-N3700

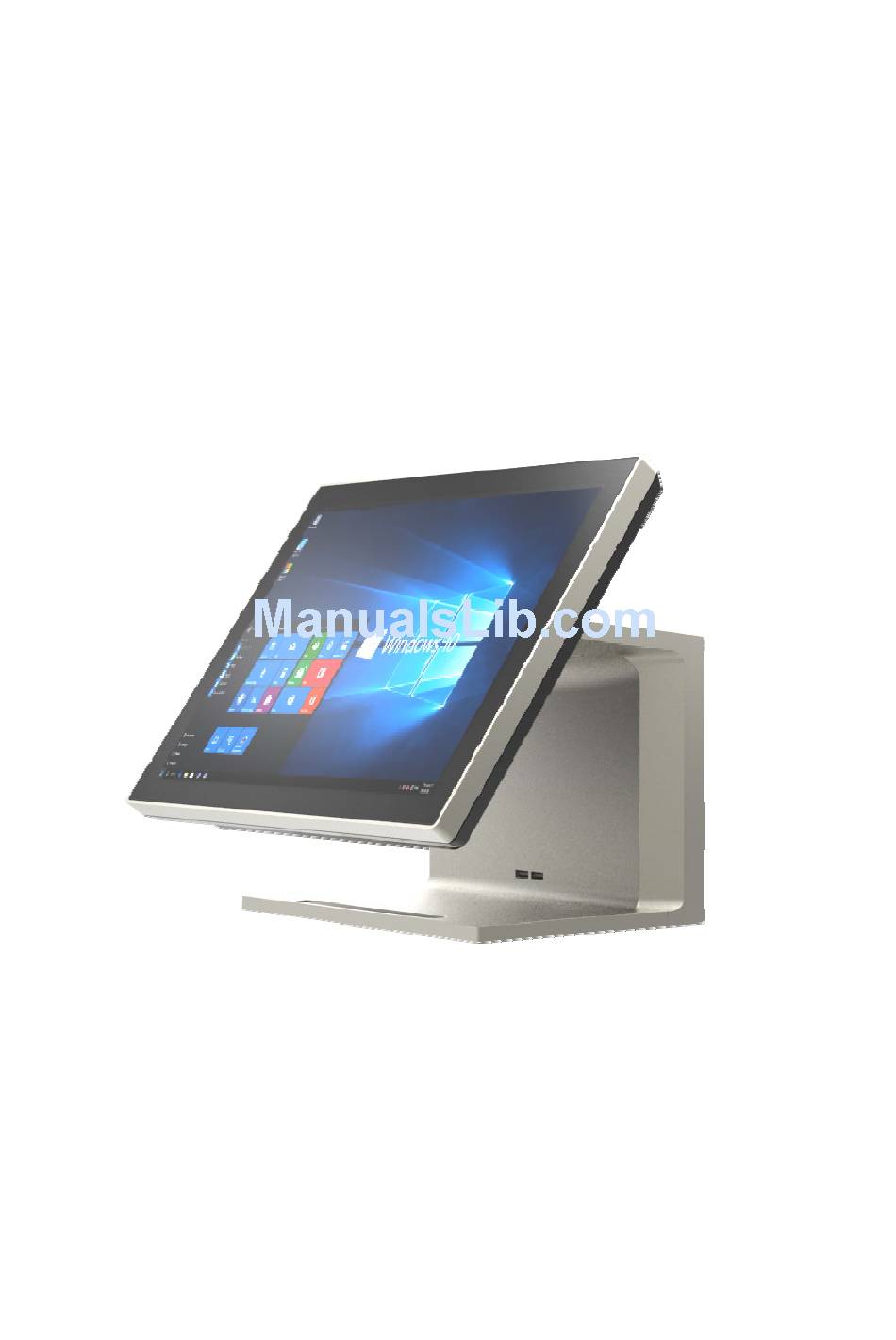

- Page 1 User’s Manual DNPOS70P-5BTH-N3700 DNPOS70P-5WTH-N3700 DNPOS70P-5BT-N3710 DNPOS70P-5WT-N3710 DNPOS70P-5BT-J3710 DNPOS70P-5WT-J3710...
-
Page 2: Liability Disclaimer
Copyrights in accordance with the instructions, may cause harmful interference to radio communications. ©2016 All rights reserved. The information in this However, there is no guarantee that document is subject to change without prior notice interference will not occur in a particular in order to improve reliability, design and function installation. -
Page 3: Weee Notice
WEEE Notice The WEEE mark applies only to countries within the European Union (EU) and Norway. This appliance is labeled in accordance with European Directive 2002/96/EC concerning waste electrical and electronic equipment (WEEE). The Directive determines the framework for the return and recycling of used appliances as applicable throughout the European Union. -
Page 4: Table Of Contents
Contents Copyrights ....................ii Liability Disclaimer .................. ii Regulatory Information ................ii FCC Notices ......................ii CE Notice ......................ii WEEE Notice....................... iii Contents ....................iv 1. Hardware Setup ..................5 1.1. Packing Contents ..................5 ... -
Page 5: Hardware Setup
Hardware Setup 1.1. Packing Contents 1. Dynasty X 1 4. Drive and Utility DVD X 2 2. Power Adapter X 1 3. Power Cord X 1 Chapter 1... -
Page 6: Quick Tour
1.2. Quick Tour Power Switch LED Indicator The Power indicator will glow green when power is on. Back Panel I/O Chapter 1... -
Page 7: Basic Peripherals Installation
1.3. Basic Peripherals Installation All cables and wires from peripherals to the POS device are recommended to connected as the direction as shown below. Tight two screws on the cable cover if necessary. Power Adapter Important! Plug the AC adapter into the POS/PPC, and then connect to the mains power supply. -
Page 8: Usb Mouse, Usb Keyboard And Usb Odd
Connect the 2-pin radio jack of the adapter to the DC 19V jack on the back panel of the device. USB Mouse, USB Keyboard and USB ODD Connect your USB Mouse, USB Keyboard and USB ODD to USB ports on the back panel of the device. -
Page 9: Cash Drawer
Cash Drawer Connect one end of RJ-12 cable to the Cash Drawer port on the back panel of the device, another end to your cash drawer. Customer Display 1. Remover the customer display mounting hole cover from the device and pull out the connector from the device. - Page 10 2. Adjust the hinge of the custom monitor (2 display), and then connect to the device as shown below. Recommended installation Optional installation by different SKU Optional installation by different SKU Chapter 1...
- Page 11 3. Mount the customer display to the device and tighten the two PHILLIPS M3 screws as shown below. 4. Finished. Chapter 1...
-
Page 12: Customer Vfd
Customer VFD 1. Remover the customer VFD mounting hole cover from the device and pull out the connector from the device. Chapter 1... -
Page 13: Msr
B. Power Supply Configuration Power up the device and hit the DEL key to enter the BIOS. When the BIOS screen appears use the TAB key to select Advanced. Use the arrow keys to select Super IO Configuration then type ENTER. The screen below will appear. Use the arrow keys to select Serial Port 6 RI/12V depending on what port the customer display is connected to. - Page 14 2. Connect the cable of the ibutton with MSR assembly to the device. 3. Tighten the two PHILLIPS M3 screws to fix the MSR assembly as shown below. 4. Finished. Note: The MSR is powered by USB, Chapter 1...
-
Page 15: Adjust Angle
1.4. Adjust Angle 1.5. Turn on the device 1. Make sure all peripherals are connected properly. 2. Press and hold the power switch until the power indicator on the power switch glow green. Chapter 1... -
Page 16: I/O Definition
I/O Definition Please refer the detailed technical information about all I/O ports as followings. 2.1. RJ50 RJ50_COM1 Signal Name Signal Name XRIA_N XRXDA XDSRA_N XRTSA_N XCTSA_N XDTRA_N XTXDA XDCDA_N RJ50_COM2 Signal Name Signal Name XRIB_N XRXDB XDSRB_N XRTSB_N XCTSB_N XDTRB_N XTXDB XDCDB_N Chapter 5... - Page 17 RJ50_COM3 Signal Name Signal Name XRIB_N XRXDB XDSRB_N XRTSB_N XCTSB_N XDTRB_N XTXDB XDCDB_N COM 3 : RS232/422/485, Pin RI with RI/5V/12V selectable by BIOS R232 RS422 RS485 RJ50_COM4 Signal Name Signal Name XRIB_N XRXDB XDSRB_N XRTSB_N XCTSB_N XDTRB_N XTXDB XDCDB_N Chapter 5...
-
Page 18: Cash Drawer
2.2. Cash Drawer Description Description 12V / 19V D_OUT0 D_OUT1 D_IN Cash Drawer Control The Cash Drawer Controller use one I/O addresses to control the Cash Drawer. Register Location: 48Ch Attribute: Read / Write Size: 8-bit BIT7 BIT6 BIT5 BIT4 BIT3 BIT2 BIT1... - Page 19 Reserved BIT7: Cash Drawer “DIN bit0” pin input status. BIT6: = 1: the Cash Drawer opened = 0: the Cash Drawer closed or no Cash Drawer Reserved BIT5: Reserved BIT4: Cash Drawer “DOUT bit1” pin output control. BIT3: = 1: Opening the Cash Drawer = 0: Allow close the Cash Drawer Cash Drawer “DOUT bit0”...
-
Page 20: 2Nd Hdd
2.3. 2nd HDD GROUND GROUND GROUND GROUND GROUND 2.4. Distributed Display Head Connector Pin Define Pin Define Pin Define Pin Define IN_D0 LVDS1_CLK XCTS_N5 IN_D2 P3V3 XRTS_N5 XDSR_N5 IN_D0# HPD1_R LVDS1_DAT XRXD5 IN_D2# P3V3 XTXD5 XRTS_N5 22 DDI0_DISP_ON_3V 39 XTXD5 XDTR_N5 XDTR_N5 IN_D1... -
Page 21: Specification
Specification Chapter 5... - Page 22 Windows Embedded POSReady 7 (64bit only) Windows 7 Professional for Embedded Systems (64bit only) Windows Embedded 8 Industry (64bit only) Linux kernel 3.0+ & associated distributions Windows 10 EBN-specified embedded controller Display Display Size 15" 4:3 Industrial grade panel (Option 15.6” 16:9)
- Page 23 USB 2.0 x 2 Giga LAN Gigabit Ethernet by RJ-45 x 2, support Wake on LAN RJ-12 x 1, support 12V / 24V DC cash drawer Cash Drawer 2W Speaker x 1 Audio mini DP x 1 Display Port Option: Cable @ DP-to-VGA, DP-to-DVI, DP-to-HDMI 19~24V DC input, Radio jack x 1 DC-in 24V PoweredUSB x 1...
