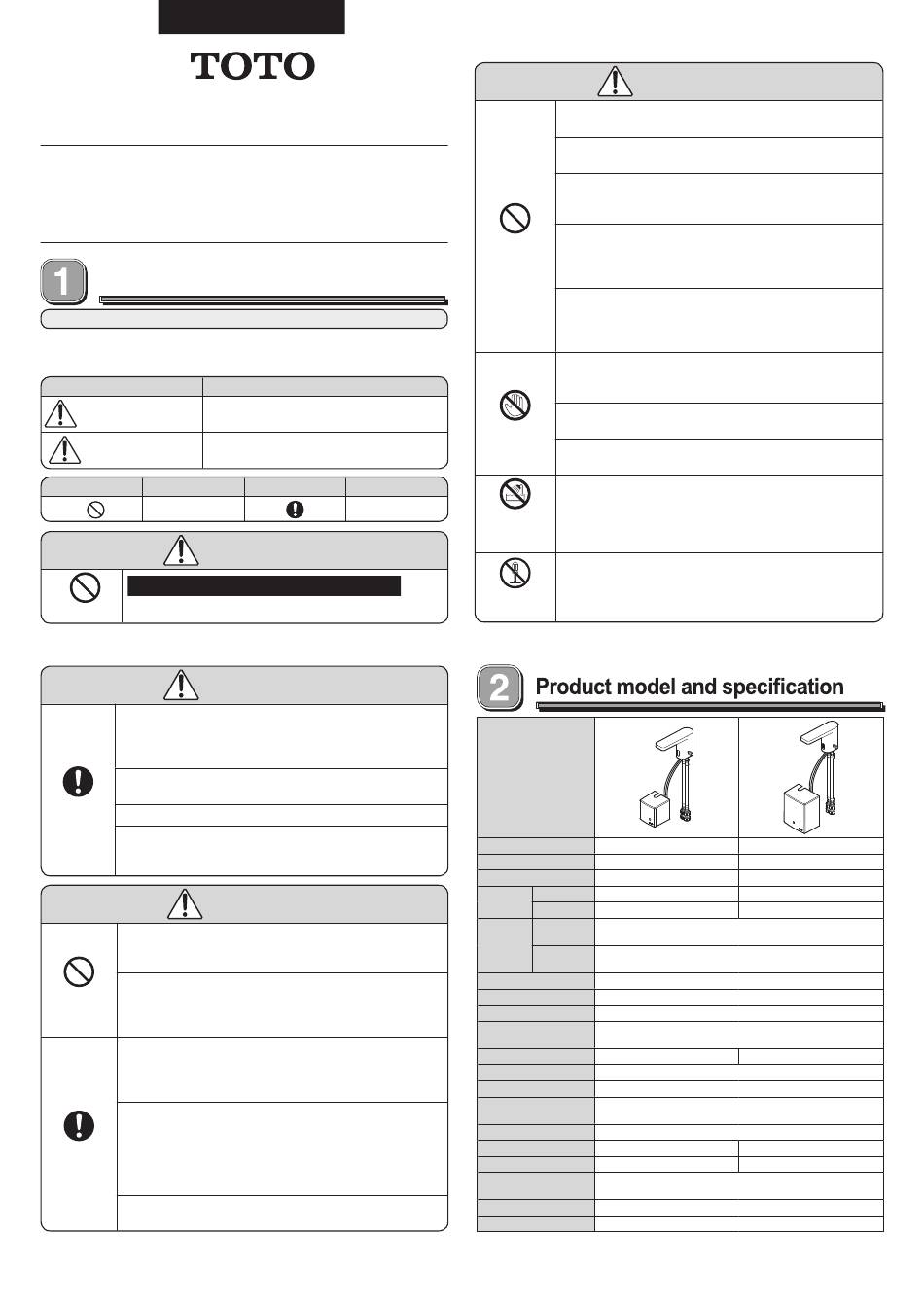

Toto DLE127BSK Construction Manual

Construction manual
0G494X

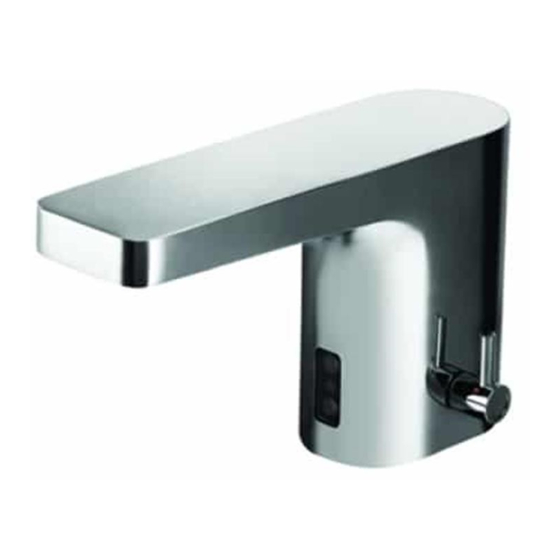

Automatic faucet
To fully take advantage of this product, please correctly install it according to this
■
manual.
After Installation, please introduce using methods to customers in detail.
■
This product is supplied with Operation manual (Guarantee). If you have any problem
■
in use, please call the national after-sale service hotline of Toto (China) Co., Ltd. at
8008209787 or 4008209787 (for mobile phones) free of charge.

Safety instructions

For safety reasons, please carefully read the safety instructions and install the product correctly.
To ensure this product is installed correctly and avoid injuries or property damage to
●
customers or others, this manual lists many symbols.
These symbols and their meanings are listed as follows.
Symbol
Ignoring this symbol and operating incorrectly
WARNING
may cause death or serious injuries.
Ignoring this symbol and operating incorrectly
CAUTION
may cause injuries and property damage.
Symbol Meaning
Prohibited
WARNING
Do not use power supplies of other than AC 220V.
Or it may cause fire and electric shocks.
Prohibited
WARNING
When you unplug the power plug, please grasp the plug to
unplug it.
If you pull and drag the power cable, the power plug or the power
cable may be damaged, causing fire or electric shocks.
Please plug the power plug into place.
Or it may cause fire and electric shocks.
Mandatory
Please assign qualified professionals to install this product.
Disabled persons, mentally challenged persons and persons
who lack common sense (including children) should use this
product under the supervision of a special person.
CAUTION
Do not exert strong force or impacts.
Or damage to the internal parts may cause injuries or faults and
water leakage.
Do not install this product outdoors or in places where icing
may occur.
Prohibited
Or family property may be soaked due to damage of this product
and water leakage, resulting in property damage.
The cold water supply pressure must be higher than or
equal to the hot water supply pressure to ensure normal use
of this product.
Or the temperature cannot be adjusted normally.
When cleaning the filtering screen, please close the angle
valves for water supply (2 places) and make sure the part of
the filtering screen at the hot water supply side won't burn
Mandatory
your hands.
Or hot water spilled out may cause scalding or family property may
be soaked due to water leakage, resulting in property damage.
Apply silica gel to the power plug to avoid any water
entering it.
2016.08
(Please follow them for safety reasons)
Meaning
Symbol Meaning
Mandatory
1
3
WARNING
Do not use loose sockets.
Or it may cause fire and electric shocks.
Do not pour water onto the power plug or the functional part.
Or it may cause fire and electric shocks.
Do not perform harsh actions for the power cable (bend, put
heavy objects, etc.).
Or it may cause fire.
The actual power mustn't exceed the rated power of the
Prohibited
socket or traversing unit.
If octopus traversing mode, etc. is used, causing the actual
power exceeding the rated power, overheating may cause fire.
The water supply temperature should not exceed 85°C.
Or it may shorten the service life of the product, damage the
product, cause scalding or cause property damage due to water
leakage.
Do not touch angle valves and pipes for water supply at the
hot water supply side directly.
Or it may cause scalding.
Do not plug or unplug the power plug with wet hands.
Or it may cause electric shocks.
No touching
Do not touch the power plug when lightening occurs.
Or it may cause electric shocks.
Do not install it in damp places such as bathrooms.
Do not use
Or it may cause faults or electric shocks.
it in damp
places
Do not disassemble, repair or modify the product.
Or it may cause fire or electric shocks.
Do not
disassemble
Appearance
Model No. DLE127BSK
Type Dry cell
Supply voltage Dry cells (2 AA cells)
Standby
Consumed
power
Operating
Minimum water
pressure
Water supply
pressure
Maximum water
pressure
Water type
Hot water supply temperature
Operating ambient temperature
Sensing distance
(sensing distance is set automatically according to the installed wash basin)
Length of wire
Length of conductors for sensor
Outflow rate
Specification of thread
connection for water supply
Water efficiency
Net weight
Gross weight
Packaging dimension
(Length*Width*Height)
Safe service life
Applications For washrooms of public areas and conventional residential housing
2
DLE127BE
Alternating current
AC 220V 50/60Hz
0.2mW 0.4W
- 0.6W
0.05MPa
1.0MPa
Tap water or potable well water
60 ~ 85°C
1 ~ 55°C
180mm
- 850mm
0.85m~1.6m
2L/min
G 1/2
Grade 1
2.2kg 2.5kg
3.2kg 3.5kg
440mm×305mm×125mm
10 years
