Related Manuals for iXchange UA-42QT-V
Summary of Contents for iXchange UA-42QT-V

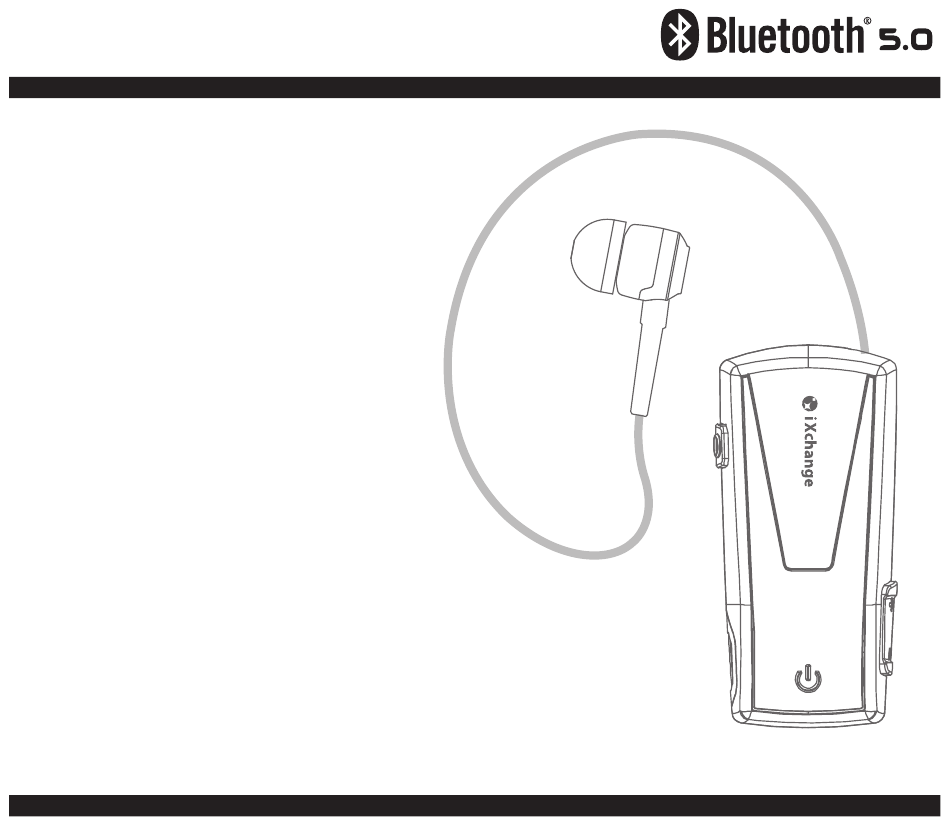

- Page 1 UA-42QT-V Retractable Stereo Headset User Manual Further Enchance Your Headset Through iXchange UP APP...
-
Page 3: Table Of Contents
Contents .... 3 Components .... 4 UA-42QT-V Overview .... 5 Retractable Mechanism .... 6 How to Wear Your Headset .... 7-9 Charging Your Headset .... 10 Getting Started .... 11 Pairing Your Headset with a Bluetooth ® wireless technology enabled device .... - Page 4 Bluetooth Bluetooth 5.0 ® ® Bluetooth Qualcomm Bluetooth Low Energy ® ® secure conection,HFP v1.7,HID v1.1, A2DP v1.3.1, AVRCP v1.6,HSP v1.2, QTIL’s proximity pairing and QTIL’s proximity connection Operating Distance: 10 meters with no obstructions Operating Temperature: 0-50 degree celsius Charging Time*: Around 1.5 hours Talk Time*:...
-
Page 5: Components
Components Thank you for choosing the iXchange UA-42QT-V Retractable Stereo Bluetooth® Headset. We hope you enjoy it! Inside the package, you should find: 1 UA-42QT-V headset 1 Manual 1 USB Cable 1 Neck Strap 1 Earphone cable with the micro USB plug 1 Micro USB / 3.5mm female plug connector... -
Page 6: Ua-42Qt-V Overview
UA-42QT-V Overview 1. Rewind Button 2. Status Indicator 3. Multi-function Button (MFB) 4. Volume Button 5. Microphone 6. Earpiece 7. Clip 8. Micro USB Charging Socket 9. Neck Strap hole... -
Page 7: Retractable Mechanism
Retractable Mechanism The earpiece cord can be extended by gently pulling on the cord. The cord can be retracted (shortened) by pressing the Rewind Button. PULL PRESS... -
Page 8: How To Wear Your Headset
How to Wear Your Headset UA-42QT-V is designed, A. to clip onto your clothing, or... - Page 9 How to Wear Your Headset (cont’d) B. fasten by a neck strap to wear comfortably and securely around your neck Step 1. Loop the thin end of the neck strap through the slot on the Headset. Step 2. Loop the thicker side of the neck strap through the loop created by the thin wire and pull until snug.
- Page 10 How to Wear Your Headset (cont’d) To release the strap, hold the strap and pull outwardly. (See the picture on left) • Use the provided neck strap only. • It may be necessary to bring the microphone closer to your mouth for lowering background noise.
-
Page 11: Charging Your Headset
Charging Your Headset Before using your UA-42QT-V (”Headset”) for the first time, please plug the charger into the power source and connect the other end to micro USB charging socket of headset to charge the battery fully. Status Status Indicator Audio (Earpiece) 1. -
Page 12: Getting Started
3. Ensure the headset is OFF. 4. To activate the device’s pairing mode, press and hold the MFB until the 5. Search the headset, select “UA-42QT-V” and enter the passcode “0000”. If your device supports “Simple Pairing” function, no code is required. -
Page 13: Pairing Your Headset With Two Bluetooth ® Wireless Technology Enabled Devices (Multi-Point)
® devices (Multi-point) UA-42QT-V supports a Multi-point function to allow simultaneous pairing of the headset with two devices. 1. Pair the headset with the first device (follow the step in “Pairing Your Headset with a Bluetooth wireless technology enabled device”). -
Page 14: Reconnecting Your Headset
Reconnecting Your Headset 1. If the headset has been powered off, it will reconnect to the phone auto- matically after turning on the headset, if not, press reconnect on the phone. 2. If the phone has been powered off and headset is then disconnected, reconnect the headset by phone’s menu when phone turns on again. -
Page 15: Using Your Headset
Using Your Headset Function Button Audio and Status Indicator Vibration Ringtone from speaker and Incoming Call Blue light flashing 3 Vibrate for every 3s (Music will stop durung times in every 3 seconds incoming call) Answer a Call Press MFB once to accept During the call, blue (Standby mode / light flashes in every 5... - Page 16 Using Your Headset (cont’d) Function Button Audio and Status Vibration Indicator Voice Dialing Press and hold the MFB ‘Do’ tone until a short beep once • After you hear a short beep, say the voice tag, and you must have the voice tag record on your mobile phone. •...
- Page 17 Using Your Headset (cont’d) Function Button Audio Status (Speaker) Indicator Miss call alert Blue and red light flashing 2 times in every 3 seconds Release miss call “Do” tone Press the MFB once alert once Adjust Volume Press the Volume +/- “Do”...
- Page 18 Using Your Headset (cont’d) UA-42QT-V is designed to work with the mobile phones with Bluetooth Handsfree • profiles (or Bluetooth devices), the compatibility of some features are not guaranteed for some phones in different operating system. In order to have a better and clear reception, there should have no obstacle to the headset while talking.
-
Page 19: Listening The Music
Listening the music Enjoy the music in two ways: A. By a earphone cable (provided) Step 1: Connect the provided earphone cable to the micro USB socket Step 2: Enjoy the music with the earphone and the retractable earpiece B. By your own headphone Step 1: Connect the provided micro USB / 3.5mm female plug connector to the micro USB socket Step 2: Enjoy the music with your own 3.5mm headphone... - Page 20 Listening the music (cont’d) Function Button Audio Status (Speaker) Indicator Play a music Press directly Music No indicator light from phone Stop playback Press the hold MFB for 2 seconds Forward / Press and hold Backward during the Vol + / - for playback about 2 seconds...
-
Page 21: Troubleshooting
Troubleshooting I cannot pair with my mobile phone - Ensure your headset is power on and fully charged - Ensure the Bluetooth setting is activated on your phone - Ensure the headset is at pairing mode (flashes blue and red alternately) - Ensure the headset is not out of range of your phone If the above steps do not solve the problem, please turn off the headset and recharge the headset, and then try again. - Page 22 Troubleshooting (cont’d) My phone cannot be auto-reconnected with the headset - Manually connect the headset from your mobile phone - Turn off the mobile then turn on again - Turn off the headset then turn on again If the above steps do not solve the problem, turn off the headset and reset it, pairing the headset again.
-
Page 23: Safety Precautions
Safety Precautions 1. Unintentional depression of the retractable button could result in an injury from the force of the earpiece cord retraction. 2. Be careful when retracting the length of the earphone. Keep a safe distance between your face and the headset. 3. -
Page 24: Maintenance
Maintenance 1. Do not yank or forcibly pull the earphone cord. 2. Consider turning your headset off before placing it in your pocket or bag. If the MFB is accidentally pushed, your mobile phone may place an unin- tended call. 3. -
Page 25: Declaration Of Conformity
Declaration of Conformity We, iXchange, declare that the following product: Model No.: UA-42QT is in conformity with the following essential requirements of Council Directive 1999/5/EC (referred to as R&TTE Directive): Article 3.1a, 3.1b and 3.2 and the product is manufactured in accordance with Article 11 of the directive. -
Page 26: Fcc Compliance Statement
FCC Compliance Statement (cont’d) 15.105(b) This equipment has been tested and found to comply with the limits for Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. - Page 28 Made in China...
