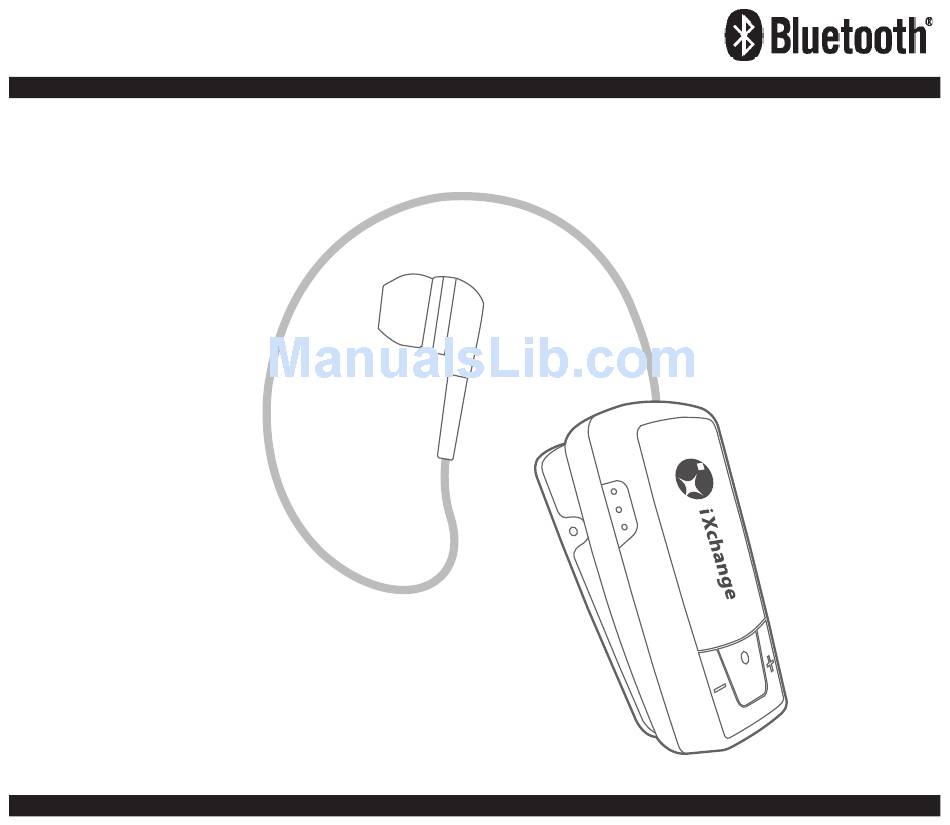

- Page 1 UA-06XB Beeper Bluetooth Headset ® User Manual...
- Page 2 Contents Product Specifications .... 3 Components .... 3 “Beeper” Overview .... 4 Retractable Mechanism .... 5 Ringer and Anti-Lost Function .... 6 Wearing Style .... 7-10 Charging Your Headset .... 11 Getting Started .... 12 Pairing Your Headset with a Bluetooth ®...
-
Page 3: Product Specifications
Product Specifications Bluetooth Specification: v2.1+EDR ® Bluetooth Profiles Supported: Headset and Handsfree ® Operating Distance: 10 meters Operating Temperature: 0-50 degree celsius Charging Time: Around 1.5 - 2 hours Talk Time*: Up to 7 hours Standby Time*: Up to 240 hours Battery Type and Capacity: Rechargeable Li-Polymer 100mAh Dimension:... - Page 4 Beeper Overview 1. Rewind Button 2. Status Indicator 3. Multi-function Button (MFB) 4. Volume Button 5. Microphone 6. Speaker 7. Clip 8. Micro USB Charging Socket 9. Neck Strap hole...
-
Page 5: Retractable Mechanism
Retractable Mechanism The earpiece length can be extended by gently pulling the cord. The length can be retracted (shortened) by pressing the rewinding button. -
Page 6: Ringer And Anti-Lost Function
Ringer and Anti-Lost Function Beeper has a built-in buzzer, which supports A. Ringer B. Anti-Lost Beeper will have “Beep” sound when Beeper has an out of range alert, you have an incoming call, to prevent reminds you that your mobile phone missing any important call. -
Page 7: Wearing Style
Wearing Style Beeper is designed, A. to clip on your clothing, or... - Page 8 Wearing Style (cont’d) B. fasten by a neck strap to wear comfortably and securely around your neck Step 1. Step 2.
- Page 9 Wearing Style (cont’d) Done...
-
Page 10: Wearing Style
Wearing Style (cont’d) To release the strap, just hold the strap by two hands and pull outwardly. (See the picture) • Use the provided neck strap only. Lower background noise requires you to put the microphone near your mouth. -
Page 11: Charging Your Headset
Charging Your Headset Before using your Beeper (“Headset”) for the first time, please insert the charger into the power source and connect the other end to micro USB charging socket of headset to charge the battery fully. Status Status Indicator Audio 1. -
Page 12: Getting Started
4. To activate the headset’s pairing mode, press and hold the MFB until the status indicator flashes blue and red alternately. 5. Search the headset, select “UA-06XB” and enter the passcode “0000”. If your mobile phone supports Bluetooth v2.1 “Simple Pairing” function, no code is required. -
Page 13: Pairing Your Headset With Two Bluetooth Wireless Technology Enabled Phone (Multi-Point)
Pairing Your Headset with Two Blue- tooth wireless technology enabled ® phone (Multi-point) Beeper supports a Multi-point function to allow simultaneous pairing of the headset with two mobile phones. 1. Pair the headset with the first phone (follow the step in “Pairing Your Headset with a Bluetooth mobile phone”). -
Page 14: Reconnecting Your Headset
Reconnecting Your Headset 1. If the headset has powered off, it will be reconnected to the phone auto- matically after switching on the headset, if not, press MFB once to reconnect. 2. If the phone has powered off and headset is then disconnected you need to press MFB once to reconnect when phone turns on again. -
Page 15: Using Your Headset
Using Your Headset Function Button Audio Audio Status (Headset) (Speaker) Indicator Incoming Call 3 Beep Ringtone for every 2 seconds Answer a Call Press MFB once to accept. Answer a 1. Press MFB once to Second Call terminate the first call 2. - Page 16 Using Your Headset (cont’d) Function Button Audio Audio Status (Headset) (Speaker) Indicator Voice Dialing Press the MFB once A short Beep • When you hear a short beep, say the voice tag, and you must have the voice tag record on your mobile phone. •...
-
Page 17: Using Your Headset
Using Your Headset (cont’d) Function Button Audio Audio Status (Headset) (Speaker) Indicator Call Transfer During a conversation, Blue light (from headset to press the MFB twice keeps flashing mobile phone / or when a call vice versa) is transferred from headset Standby mode Blue light without mobile... -
Page 18: Troubleshooting
Troubleshooting I cannot pair with my mobile phone - Ensure your headset is power on and fully charged - Ensure the Bluetooth setting is activated on your phone - Ensure the headset is at pairing mode (flashes blue and red alternately) - Ensure the headset is not out of range of your phone If the above steps do not solve the problem, please turn off the headset and recharge the headset, and then try again. -
Page 19: Troubleshooting
Troubleshooting (cont’d) My phone cannot be auto-reconnected with the headset - Manually connect the headset from your mobile phone - Turn off the mobile then turn on again - Turn off the headset then turn on again If the above steps do not solve the problem, turn off the headset and reset it, pairing the headset again. -
Page 20: Safety Precautions
Safety Precautions 1. Unintentional depression of the retractable button could result in injury from the force of the earpiece cord retraction. 2. Be careful when retracting the length of the earphone. Keep a safe distance between your face and the headset. 3. -
Page 21: Maintenance
Maintenance 1. Do not yank or forcibly pull the earphone cord. 2. Consider turnning your headset off before placing it in your pocket or bag. If the MFB is accidentally pushed, your mobile phone may place an unin tended call. 3. - Page 22 Made in P.R.C...
- Page 24 FCC ID: WD31516 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
