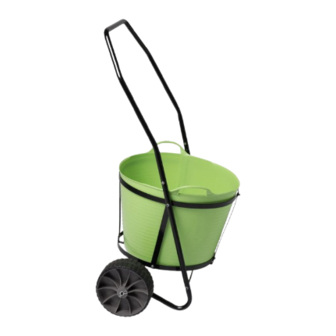

Garden tub cleanup cart

Advertisement

FRAME PIECES
WHEEL AXLE
NUT
1. Insert the FRONT SUPPORT BAR and WHEEL AXLE into
FRAME PIECES as shown. Then, secure the FRONT SUPPORT
BAR with a NUT on each end.
HANDLE
SMALL
PHILLIPS
WASHER
HEAD BOLTS
NUT
FRAME
PIECES
#8600329
Garden Tub Cleanup Cart

Parts List

(2) FRAME PIECES
(1) HANDLE
(1) WHEEL AXLE
(2) PHILLIPS HEAD BOLTS
(1) LARGE RING
(2) LONG BOLTS
(1) BASKET U SUPPORT
(2) BASKET SIDE BRACES
(2) WHEELS
(2) SMALL WASHERS
NUT
FRONT SUPPORT BAR
(with tab)
3. Slide the HANDLE on
top of the FRAME PIECES.
Place the PHILLIPS HEAD
BOLTS through the lined
up holes and slide a
SMALL
SMALL WASHER onto the
WASHER
end. Screw a NUT onto
each of them.
NUT
8% of our profits
Learn more at gardeners.com/
(4) LARGE WASHERS
(2) COTTER PINS
(1) FRONT SUPPORT BAR
(7) SHORT BOLTS
(1) SMALL RING
(13) NUTS
WRENCH

Tools required

Phillips screwdriver
WHEEL
LARGE
WASHER
WASHER
COTTER PIN
2. Slide a LARGE WASHER, a WHEEL, and then another
LARGE WASHER onto each end of the WHEEL AXLE. Place
the COTTER PINS through the holes in the WHEEL AXLE
and spread the ends to secure them into place.
LARGE RING
SHORT BOLTS
BASKET U
SUPPORT
SMALL RING
4. Align two holes in the SMALL RING with the bottom holes
in the BASKET U SUPPORT and secure with SHORT BOLTS and
NUTS. Align two holes in the LARGE RING with the top holes in
the BASKET U SUPPORT and again secure with SHORT BOLTS
and NUTS.
go back to our communities.
FoRCE-FoR-GoOD
1-800-876-5520 • gardeners.com
info@gardeners.com
WHEEL
WHEEL AXLE
NUTS
1345V Rev 06/2020
