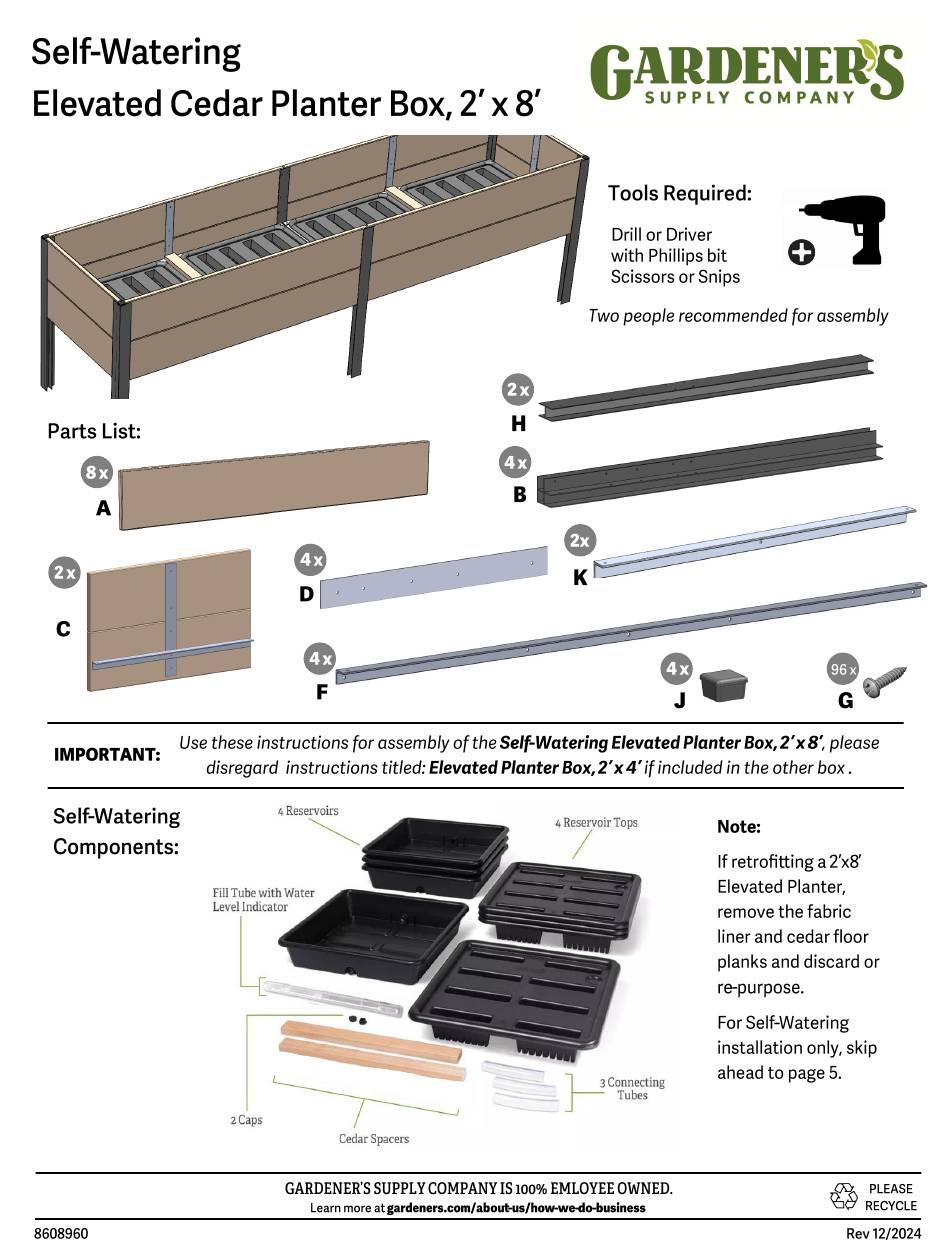

- Page 1 1-800-876-5520 • gardeners.com info@gardeners.com...
- Page 2 1. Press a cap (J) into the top of each of the four legs (B) using a mallet if necessary. The top side of each leg (B) has holes as shown. —> 2. Lay two long boards (A) on a flat surface and align the ends. 3.
- Page 3 11. Lay two platform supports (F) and align the holes with the open holes in legs (B) and center support (H) and secure with one screw (G) on in each of the 4 holes circled below: 12. Slide two flat stock (D) under each platform support (F), align the holes as shown below, and secure to the platform support with one screw (G) in each hole as shown below: 13.
- Page 4 15. Slide an end panel (C) into the leg (B) and align the top boards. The pre-attached cross support (C) sits below the platform support (F) as shown below. 16. Check that the tops of each board are aligned and secure end panel (C) with a screw (G) in each hole - 4 screws per leg as shown at right: 17.
- Page 5 20. Install two cross supports (K) as shown with one screw on each side (4 screws total). Install a screw (G) in each cor- ner as shown in step 15. Each hole should now have a screw and it is normal to have extras. 1.
