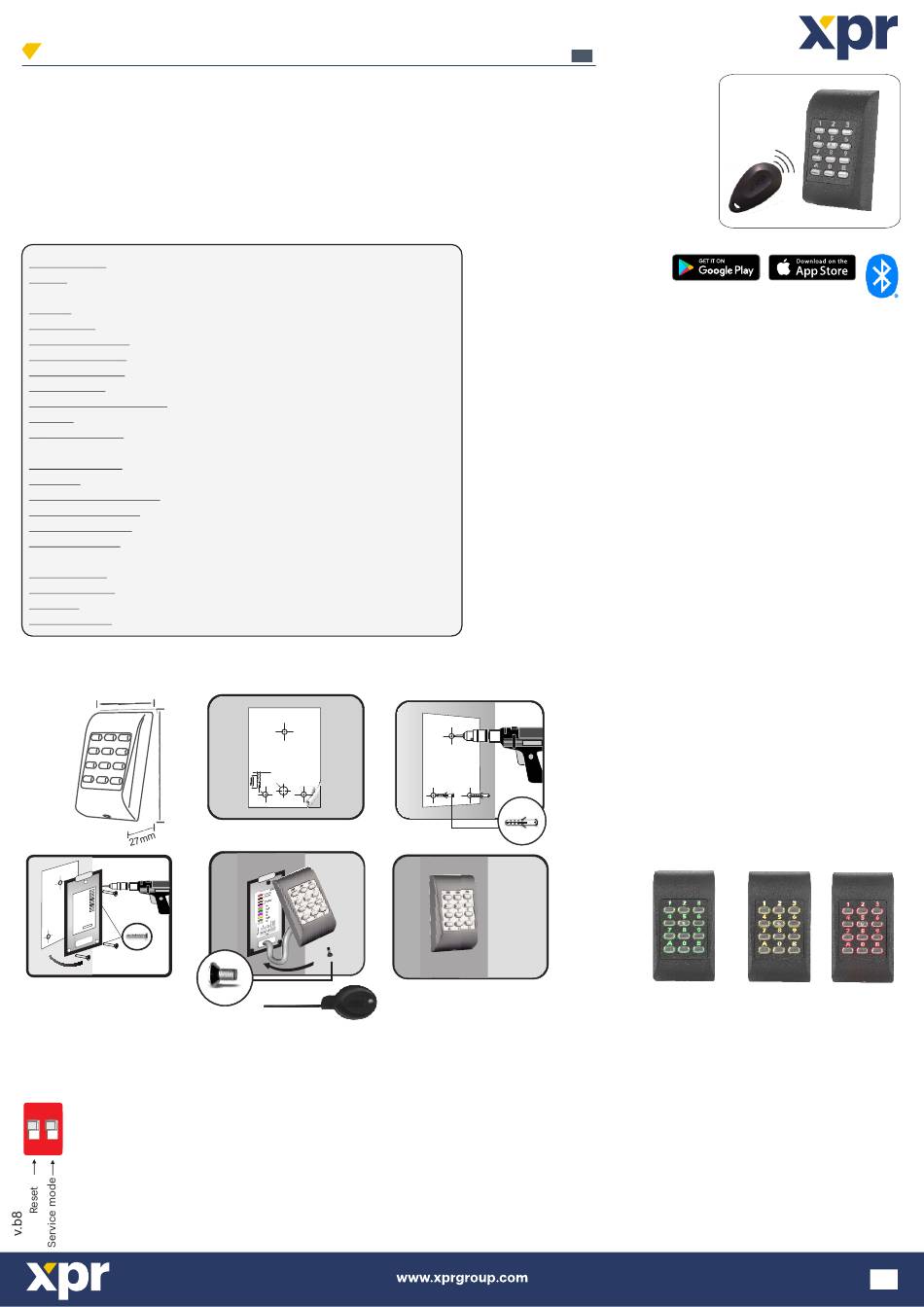

xpr MTPADP-BT-EH-SA User Manual

MTPADP-BT-EH-SA

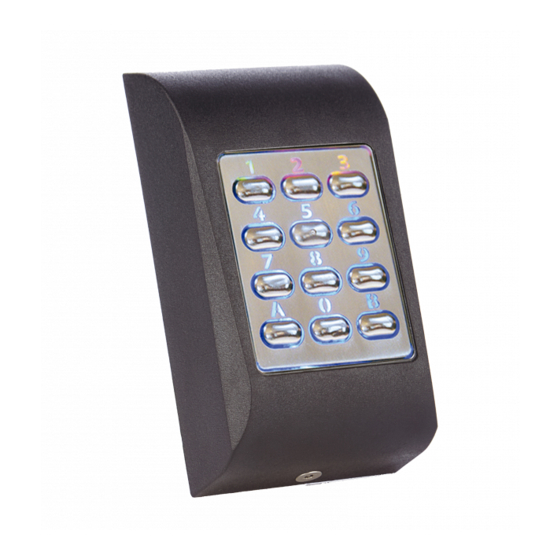

Bluetooth® standalone keypad with integrated RFID reader
1. SPECIFICATIONS
User capacity:
Relays:
Output: RS-485, Wiegand
Entry mode: PIN Code, Card, PIN Code or Card
RFID reading type: EM 4002/4100 and HID (125kHz)
Reading distance: up to 4cm
PIN Code Length: 6 Digits
Power supply: 12 VDC; max. 100mA
Buzzer, backlight control: Yes, ON/OFF via XPR Smart Admin
Tamper: Yes
RS-485 interface: Yes, for connecting I/O boards like
RU1, RTT, RU2, DINRTT
Door Open Time: 0 to 255 sec. or toggle (ON/OFF mode)
IP Factor: IP65
Operating Temperature: 20ºC to +50ºC
Operating Humidity: 5% to 95% RH without condensation
Firmware upgrade: Yes, via
Wiegand output: Wiegand 24, 26, 32, 34, 56, 58 bits
or 4, 6, 8 bit per key for the keypad
Programming: via XPR Smart Admin
Door operation:
via XPR Smart Access
Holidays:
24
Event capacity:
4000
2. MOUNTING
51mm
92mm
1 2 +
V
g n
d
d 0
d 1
x x
x x
x x
x x
3 (3 x 30mm)
3. RESET READER TO DEFAULT
1. Turn the device OFF
2. Put dipswitch 1 to position ON
ON
3. Turn the power ON
4. Wait approx. 15 seconds until continuous beeps.
1 2
5. Put dipswitch 1 to OFF
6. Wait for long beep and orange back light led.
USER'S MANUAL
100 Cards and 100 PIN Codes
1 or 2 depending on the remote relay unit
1 with RTT and RU1 and 2 with RU2 and DINRTT
Bluetooth® wireless technology
Ø6.0
Cable
1 (M3 x 6mm)
EN
Important note:
The Bluetooth reader comes with RU1 remote relay ®
unit.
Make sure to make firmware update with the latest
available firmware.
5mm
Access Granted
(Output 1 or 2)
The reset procedure will bring the reader to default.
The password will be deleted, all the users and the
reader will be unpaired from the remote relay unit.
Unpairing the reader after reset, prevents
unauthorized reset and keeps the unit in high
security state.
Tricolor indication LED
Idle Mode Access Denied
1
