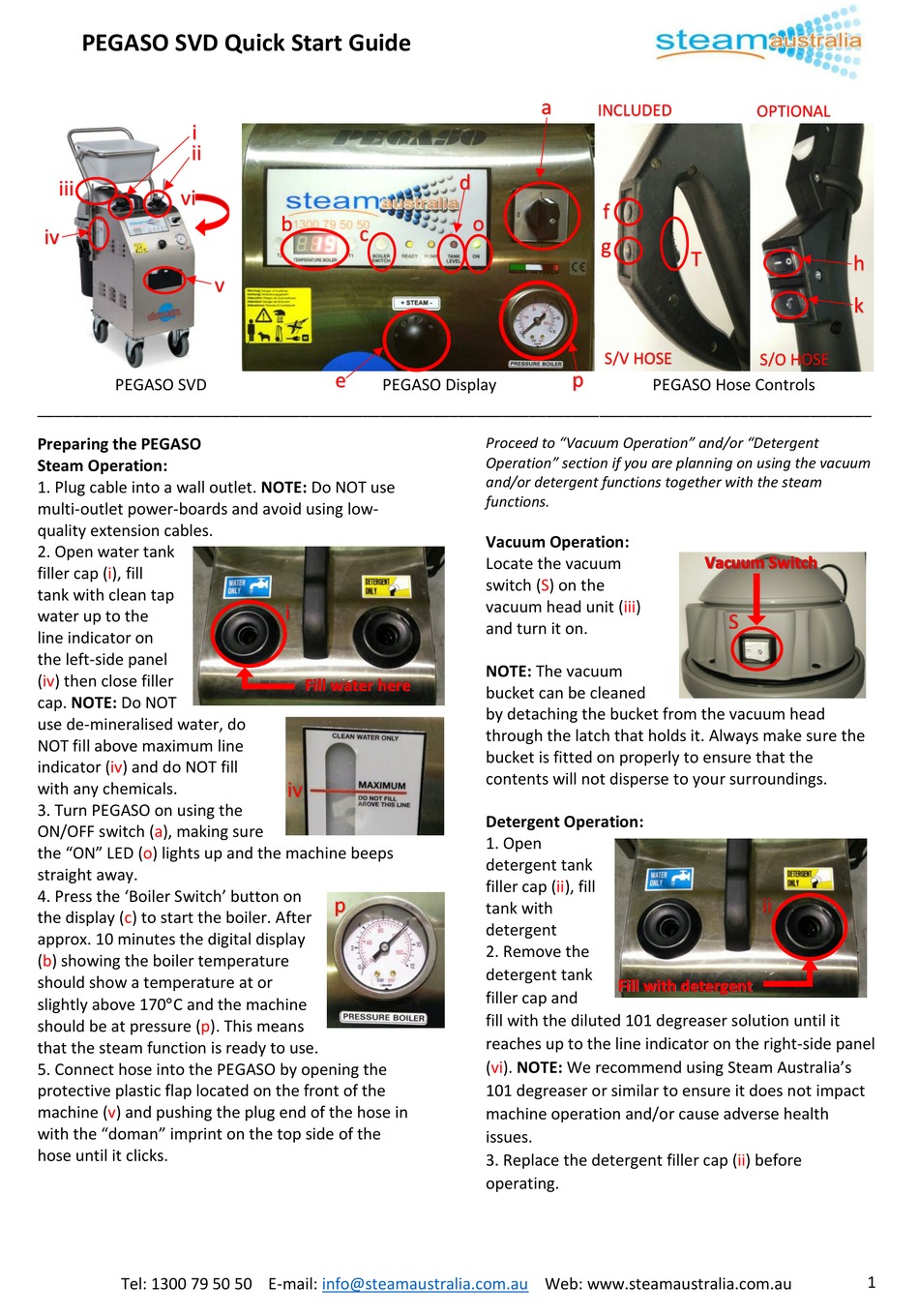

PEGASO SVD Quick Start Guide
i
ii
iii
vi
iv
PEGASO SVD
_______________________________________________________________________________________________

Preparing the PEGASO

Steam Operation:
1. Plug cable into a wall outlet. NOTE: Do NOT use
multi-outlet power-boards and avoid using low-
quality extension cables.
2. Open water tank
filler cap (i), fill
tank with clean tap
water up to the
line indicator on
the left-side panel
(iv) then close filler
cap. NOTE: Do NOT
use de-mineralised water, do
NOT fill above maximum line
indicator (iv) and do NOT fill
with any chemicals.
3. Turn PEGASO on using the
ON/OFF switch (a), making sure
the "ON" LED (o) lights up and the machine beeps
straight away.
4. Press the 'Boiler Switch' button on
the display (c) to start the boiler. After
approx. 10 minutes the digital display
(b) showing the boiler temperature
should show a temperature at or
slightly above 170C and the machine
should be at pressure (p). This means
that the steam function is ready to use.
5. Connect hose into the PEGASO by opening the
protective plastic flap located on the front of the
machine (v) and pushing the plug end of the hose in
with the "doman" imprint on the top side of the
hose until it clicks.
Tel: 1300 79 50 50 E-mail:
b
c
v
e
PEGASO Display
i
iv
p
info@steamaustralia.com.au
a
INCLUDED
d
f
o
g
S/V HOSE
p
Proceed to "Vacuum Operation" and/or "Detergent
Operation" section if you are planning on using the vacuum
and/or detergent functions together with the steam
functions.
Vacuum Operation:
Locate the vacuum
switch (S) on the
vacuum head unit (iii)
and turn it on.
NOTE: The vacuum
bucket can be cleaned
by detaching the bucket from the vacuum head
through the latch that holds it. Always make sure the
bucket is fitted on properly to ensure that the
contents will not disperse to your surroundings.
Detergent Operation:
1. Open
detergent tank
filler cap (ii), fill
tank with
detergent
2. Remove the
detergent tank
filler cap and
fill with the diluted 101 degreaser solution until it
reaches up to the line indicator on the right-side panel
(vi). NOTE: We recommend using Steam Australia's
101 degreaser or similar to ensure it does not impact
machine operation and/or cause adverse health
issues.
3. Replace the detergent filler cap (ii) before
operating.
Web: www.steamaustralia.com.au
OPTIONAL
T
S/O HOSE
PEGASO Hose Controls
S
ii
h
k
1
