Related Manuals for Steam Australia SV8D
Summary of Contents for Steam Australia SV8D
- Page 1 SV8D User Manual www.steamaustralia.com.au – info@steamaustralia.com.au – 1300 79 50 50...
-
Page 2: Table Of Contents
Water Quality ................................7 Filling with Water ................................7 Attaching/Removing the Hose ............................7 Using Your Appliance ................................ 7 Turning on the SV8D ..............................7 Steam Operation ................................7 Vacuum Operation ................................ 8 Detergent Operation ..............................9 Accessories Guide ................................10 Maintenance ................................... -
Page 3: Safety Precautions
Safety Precautions • Carefully read all the safety warnings and precautions in these instructions as they provide important information for the safe assembly, use and maintenance of the steam generator. • After removing the packaging, check that the steam generator is undamaged. If in any doubt, do not use the appliance and instead contact an authorised service agent. -
Page 4: Steam Cleaner Description

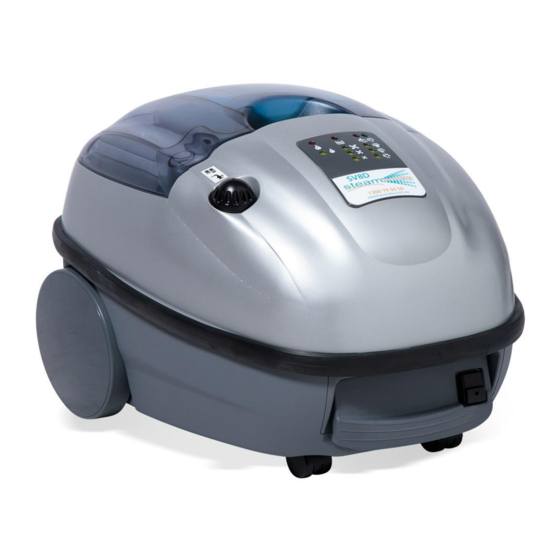

Steam Cleaner Description The SV8D permits cleaning and sanitising without the need to use chemicals. Steam cleaning is hygienic and helps us reduce our water and chemical consumption making us more environmentally responsible. High temperature steam removes dirt, kills bacteria and dust mites. -
Page 5: Components
Components 1. Transparent Cover 2. Carry Handle 3. Water Tank Cap 4. Wheels 5. Display Lights 6. Mains ON/OFF Switch 7. Steam Hose Socket Accessories Standard Accessories 1. AC8000135: Hose SVD 2.5m 2. AE0000011: Extension Tube S/V 500mm 3. AC8000047: Extension Tube S/V Short 250mm 4. -
Page 6: Optional Accessories
Optional Accessories AC8000084 SV8D Trolley w/ 5L Water Bottle…………………………………………………………………………… AC8000094: Trolley SV8D Skywalker Infinite Grey………………………………………………………………… AC0010023 Brush Round Stainless Steel 30mm……………………………………………………………………… AC0010020 Brush Round Brass 30mm…………………………………………………………………………………… AC8000040 Mop Head Wall 250mm + AC0020001 Microfibre Mop Pad Wall 250mm…………………………………. AC8000016 Mop Head Floor 390mm + AC0020002 Microfibre Mop Pad Floor 390mm…………………………. -
Page 7: Before Switching On
Multi-outlet power boards typically do not have the capacity to accommodate equipment rated at high- wattage, therefore making it not suitable for use with the SV8D. If you need to use an extension cable with the SV8D, make sure that the wire thickness on the extension cable is identical to the wire thickness of the SV8D’s power cable. -
Page 8: Vacuum Operation
The vacuum uses a tank that filters dirt using a water-filtered system. To operate the vacuum, the SV8D uses a magnetic-float sensor that senses if water is present in the vacuum tank. If there is no water, not enough water or too much water the vacuum will not turn on and the “Check Vacuum Tank”... -
Page 9: Detergent Operation
Remove the detergent filler cap and fill with diluted detergent. The recommended detergent is Steam Australia’s 101 degreaser and gum remover. This is to ensure that the SV8D operates at optimal conditions without causing machine issues or adverse health issue. The “Low Detergent” light will stop flashing and the “Detergent ON”... -
Page 10: Accessories Guide
Accessories Guide Floor Steam + Vacuum Tool For hard floor surfaces such as: - Tiles - Marble AC8000034 Floor Tool S/V 300mm - Most sealed hardwood - Linoleum & Vinyl AC8000025 Insert Dual - Carpets Squeegee 300mm - Non-slip surfaces AC8000012 Insert S/V First, use high steam pressure to lift Carpet Glider 300mm... - Page 11 Detailing Extension For cleaning and sanitizing areas such as: - Sinks AC8000024 Nozzle Detail - Toilets w/Extension - Car interior & exterior - Hard to reach nooks & crannies 150mm S/V Head As window squeegee function: Attach the AC8000029 squeegee insert.
- Page 12 S/V Detailing Nozzle + Small Nylon Brush For detail cleaning in kitchens, bathrooms and other areas: - Tile grouts (walls and floors) - Drains - Cooktops AC8000023 Nozzle S/V - Bathtubs Detail For best results, hold brush on angle 2 x AE0000011 to clean sides of the grout line, and Extension Tube S/V then tilt in other direction to clean...
- Page 13 Floor Mop Head + Microfibre Mop Pad (Optional Accessory) AC8000016 Mop Head Floor 390mm For cleaning non-carpeted hard- AC0020002 Microfibre Mop floor surfaces. Pad Floor 390mm Use medium steam flow and move AC8000041 Adapter S/V to forwards and backwards quickly over the floor surface.
-
Page 14: Maintenance
(Fig. 3). This will expose the brass boiler plug (Fig. 4). Prepare the pan or container by placing it underneath the SV8D to catch any water that will drain later. -
Page 15: Servicing
Follow the steps in “Boiler Maintenance” to drain the boiler. If problem persists, contact your local authorised service agents. If you are unsure about any symptoms you should stop use of the steam cleaner and contact Steam Australia or your local authorised repair agent.
