Step 8: Place the Lower Support Bracket over the Lower Actuation
System. Ensure the Nexus 21 Logo is not upside down and the 90
degree bend is on the right hand side.
9
10

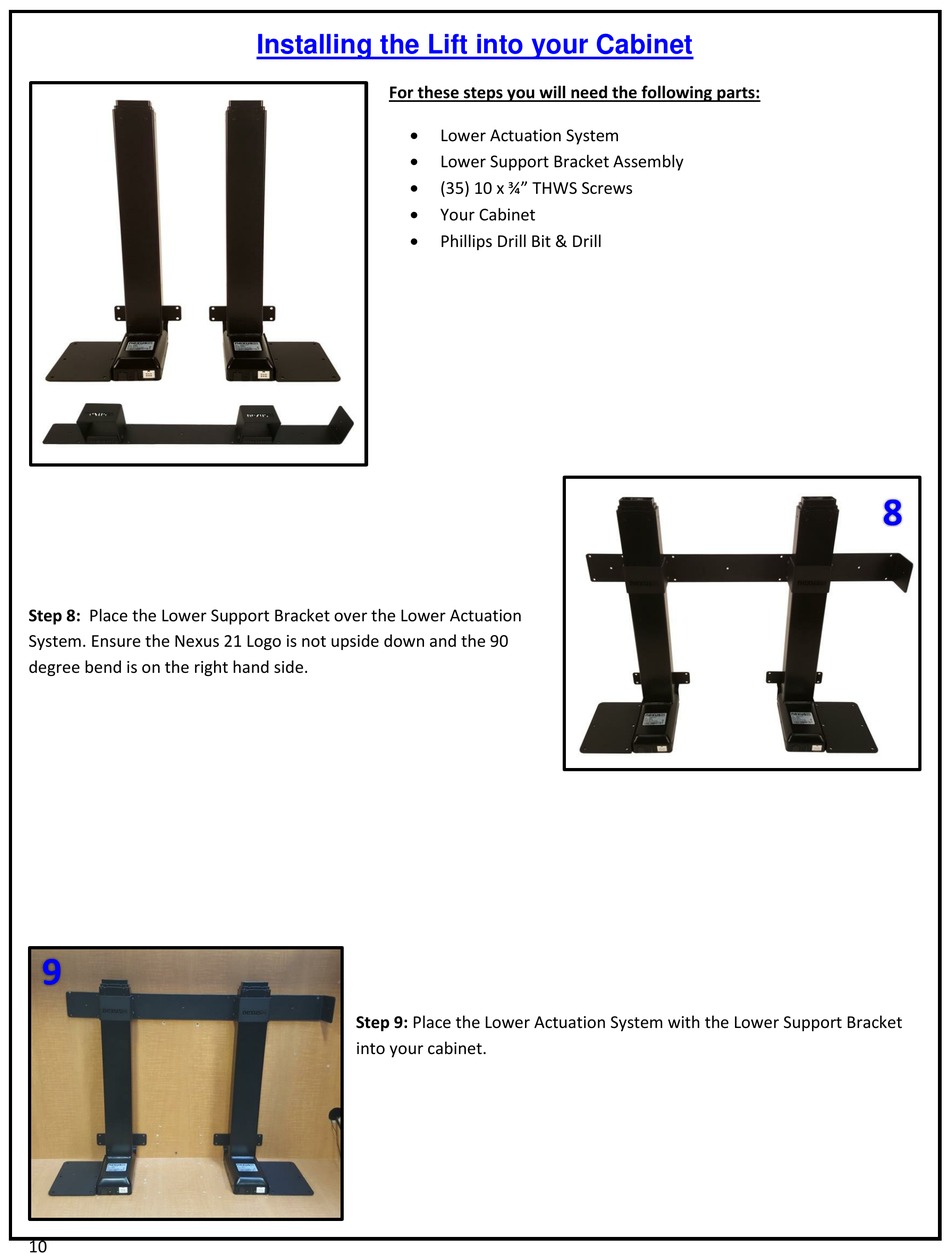

Installing the Lift into your Cabinet
For these steps you will need the following parts:





Step 9: Place the Lower Actuation System with the Lower Support Bracket
into your cabinet.
Lower Actuation System
Lower Support Bracket Assembly
(35) 10 x ¾" THWS Screws
Your Cabinet
Phillips Drill Bit & Drill
8
