Team C T4 Manual

1:10 scale 4wd electric pro racing buggy
Hide thumbs Also See for T4:

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com
1:10 SCALE 4WD ELECTRIC PRO RACING BUGGY

Advertisement

loading

Related Manuals for Team C T4

Summary of Contents for Team C T4

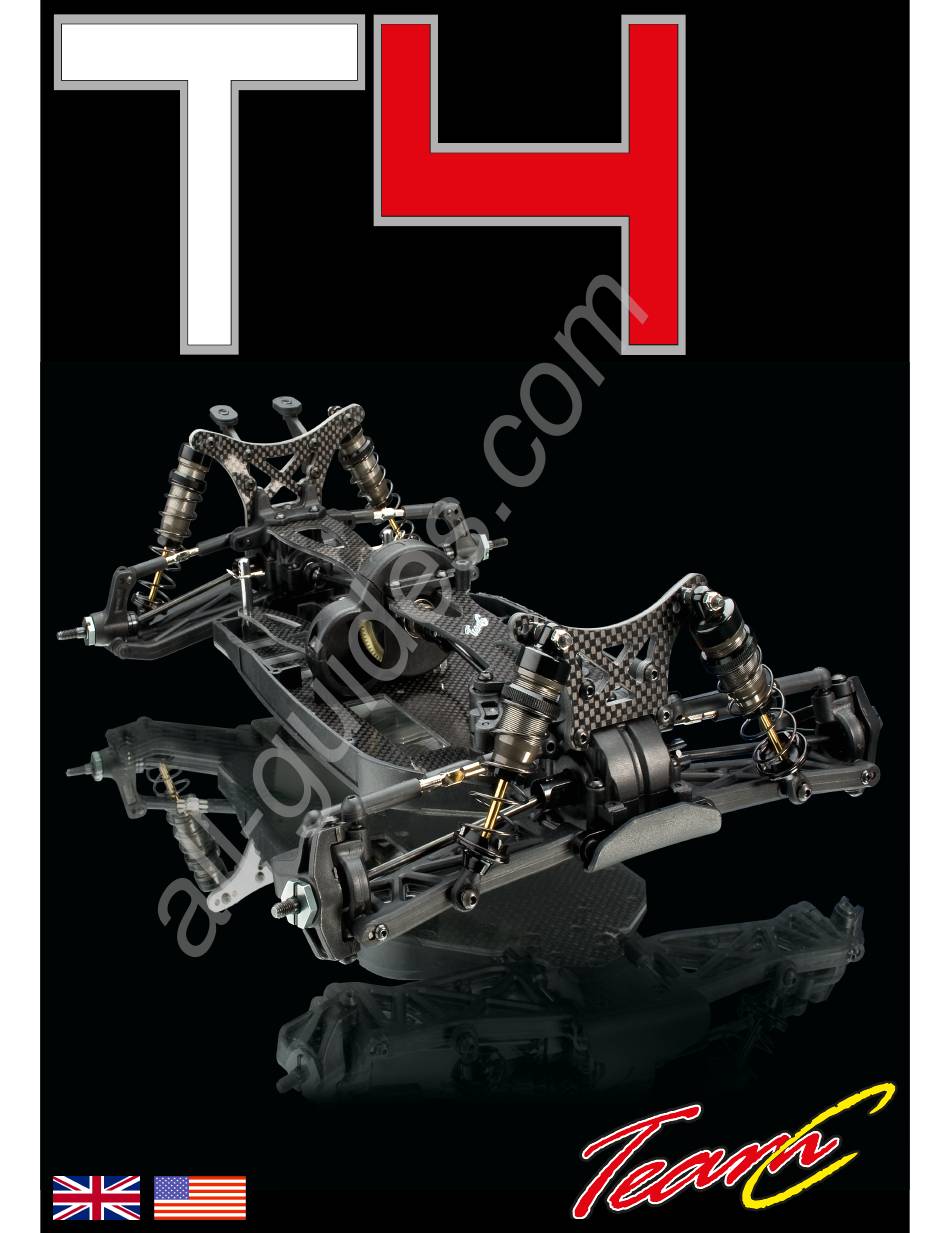

  • Page 1 All manuals and user guides at all-guides.com 1:10 SCALE 4WD ELECTRIC PRO RACING BUGGY...
  • Page 2 Notice Thank you for purchasing this T4 Competition Buggy by Team C. This manual shows instructions and tips to built and maintain your T4. Please take some time to read through to get familiar with the shown steps. We continually improve our products, due to that, actual parts my be different to the illustrations.

  • Page 3: Transmitter Preparation

    All manuals and user guides at all-guides.com Transmitter Preparation Power Switch 27MHzTransmitter Crystal （TX） Antenna Transmitter crystal(TX) Receiver crystal(RX) Extend the antenna to the maximum Length for best performance The crystal can be replaced to change frequencies. Note : You must also change receiver crystals! Do not use AM crystals Battery Level Indicator Good Batteries...

  • Page 4: Tools Required

    All manuals and user guides at all-guides.com Transmitter Preparation A new Ni-MH battery must be charged before it is used.Refer to the charger instruction manual for charging. Set up the radio control system as indicated below. Motor Battery Electronic Speed Controller DIGITAL PROPORTIONAL...
  • Page 5 T04052 All manuals and user guides at all-guides.com TU0418 Suspension Mount/Side plate Battery Mount Rear Arm Mount-Front T04051 Side plate-Right T04051 Side plate-Left TU0416 Front Arm Mount-Rear T04050 Chassis TR4058 M3x8 TR4058 M3x8 Screw ……………14 Diff-gear Box / Motor Mount TR4016 Center Gear-box-lower TU0415...
  • Page 6 All manuals and user guides at all-guides.com T04037 F/R Differential Diff Nut T02099 10x15x4 Ball Bearing T02047 T04033 Differential Spring Diff connecting Cup-Long T02099 …………4 TR4057 10x12x0.2 Washer T02098 ………………4 T02050 2.6x6x3 Stop push ball bearing TR4039 ………………2 T02048 TR4028 T02050 T04037 2.6x26 Differential screw Diff Gear-39T...
  • Page 7 All manuals and user guides at all-guides.com F/R Gear-Box TR4059 M3x10 TR4059 M3x8 T04039 TR4059 M3x10 Rear Gear-box-cover TR4059 M3x8 TR4002 Front Gear-box-cover TR4059 M3x8 Screw TR4059 M3x10 Screw ………4 ………8 Mid Gear TR4059 M3x5 T04023 T04021 TR4027 Center Shaft Mid Connecting Hub-R Supr Gear-85T T04020...
  • Page 8 All manuals and user guides at all-guides.com Center Gear Steering Servo T02081 TR4059 M3x10 T04005 Servo Mount T02093 TR4059 M2.6x8 Screw Steering Servo ……………1 TR4059 M3x10 Screw Select the servo horn matching the servo being used. ……………4 T02093 Ball stud-Short TR4059 M2.6x8 ……………1 T04006...
  • Page 9 All manuals and user guides at all-guides.com Steering Servo TR4058 M3x8 Screw ………………2 TR4058 M3x8 Buffer T04003 Servo Saver-left TR4049 Servo Saver Body T02092 T04003 Servo Saver-Top T04038 M3 T04004 T04003 Steering Rack T02092 Servo Saver-Bottom TR4049 T02092 Ball stud-Long Servo Saver Spring T04038 M3 …………3...
  • Page 10 All manuals and user guides at all-guides.com Buffer 17.5mm T04024 T04014 ▲Projection.Note direction T04014 T04057 4.1x6x2.1 Washer T04031 T04057 4.1x6x2.1 Washer …………………2 TR4058 M3x8 Screw ………………2 TR4049 T04031 4x7x2.5 Ball bearing …………………4 T04014 4.8mm Ball End-Long ……2 T04024 3x40 Turnbuckle TR4058 M3x8 …………1 Screw...
  • Page 11 All manuals and user guides at all-guides.com Upper Deck-Rear / Rear Upper Suspension Arm Mount TR4059 M3x10 T04053 Upper Deck-R TR4004 Upper Suspension Arm Mount-R T02092 TR4059 M3x10 Screw …………3 TR4059 M3x12 Screw …………2 T02092 Ball stud-Long …………2 Front Shock Tower TR4059 M3x8 Screw ……………2 TR4059 M3x12 Screw...
  • Page 12 All manuals and user guides at all-guides.com Rear Shock Tower TR4059 M3x10 T04012 Wing Brack TU0429 TR4059 M3x10 Screw Carbon Rear Shock Tower …………4 Rear Shock Tower TR4059 M3x8 TR4059 M3x12 TR4059 M3x8 Screw …………2 TR4059 M3x12 Screw …………2...
  • Page 13 All manuals and user guides at all-guides.com Spur Gear Cover TR4059 M3x12 TR4016 Center Gear-box-cover T04057 3.1x5.5x1.0 Washer TR4059 M3x12 Screw …………4 Front Hub Carrier TR4007 TR4007 TR4011 1.6x11 Spring Pin Front Hub Carriers Front Hub Carriers 10 Degree-Right 10 Degree-Left ……………2 TR4008 TR4008...
  • Page 14 All manuals and user guides at all-guides.com < L > Front Hub Carrier TR4059 M2.5x4 Screw …………………2 TR4046 2.5x30 Arm Pin ………………2 T04007 Front Lower Arm < R > TR4059 M2.5x4 TR4046 Front Suspension Arm T04002 T04002 Brace bushing ……………2 TR4059 M3x10 Screw T04034 ……………2...
  • Page 15 All manuals and user guides at all-guides.com Front upper Rod-L Turnbuckle 23.5mm 1:1 x1 ▲Projection.Note direction 3x45 Turnbuckle Front upper Rod-R 前上拉杆-右 T04024 3x45 23.5mm T04014 ▲Projection.Note direction T04014 4.8mm Ball End-Long 3x45 Turnbuckle ……12 Steering Rod T04024 3x40 18.5mm T04024 3x40 Turnbuckle ▲Projection.Note direction 3x40 Turnbuckle...
  • Page 16 All manuals and user guides at all-guides.com Rear Hub Carrier < L > TR4011 2.5x6x1 Washer …………………4 TR4059 M2.5x4 Screw T04008 Rear Lower Arm-L …………………2 TR4011 2.5x6x1 TR4046 2.5x30 Arm Pin ………………2 < R > TR4059 M2.5x4 TR4046 Rear Suspension Arm T04035 3x51 Arm Pin ………………2 TR4058 M3x10 Screw...
  • Page 17 All manuals and user guides at all-guides.com Rear Turnbuckle Shock Absorber TU0250-8 Spring TU0250-8 1mm Washer-Black TU0250-3 TU0250-8 TU0250-8 Spring Front Shock Absorber Body-Short 2.8x1.9 O-ring TU0250-4 ……………………4 TU0250-8 Rear Shock Absorber Body-Long 2.5mm Washer-White TU0250-8 1mm Washer-Black TU0250-8 …………………4 2.8x1.9 O-ring TU0250-8 1mm Washer-White TU0250-8...
  • Page 18 All manuals and user guides at all-guides.com Shock Absorber TU0250-7 Front Piston-Black Rear Piston-White TU0250-1/TU0250-2 2.3 E-ring …………………8 Front For Short Rear For Long TU0250-7 Front Shock Piston-Black TU0250-1/TU0250-2 TU0250-8 2.3 E-ring 12x1 O-ring ……………4 TU0250-7 Rear Shock Piston-White ……………4 TU0250-1/TU0250-2 2.3 E-ring TU0250-8 12x1 O-ring...
  • Page 19 All manuals and user guides at all-guides.com Front Shock Absorber TU0250-6 TR4059 M3x22 T02084 M3 TR4059 M3x12 TU0250-6 Shock cap ball TU0250-6 3.1x5.5x2.0 Aluminium Washer T02084 M3 Nylon Nut TR4059 M3x12 Screw TR4059 M3x22 Screw ………………2 ………………………………2 …………2 ……2 ……2 Rear Shock Absorber TR4059 M3x22 TU0250-6...
  • Page 20 All manuals and user guides at all-guides.com Battery Column TR4058 M3x10 Screw ……………4 T04054 Battery Column TR4058 M3x10 Motor Motor TU0415 Motor Cam TR4059 M3x8 H481 M3x3 Screw H475 M3x3 ……………………1 H481 TR4059 M3x8 Screw 21T Pinion Gear ……………2 Must be purchased separately...
  • Page 21 All manuals and user guides at all-guides.com H380 T04013 Motor Fan Mount T04013 M2.5x13 TR4059 M3x10 TR4059 M3x8 Screw TR4059 M3x12 ……………1 TU0415 TR4059 M3x10 Screw Motor Clamp ……………1 TR4059 M3x12 Screw ………1 Tighten the screws with one sheet of paper TR4059 M3x8 inserted between both gears.
  • Page 22 All manuals and user guides at all-guides.com Battery TU0426 Carbon Battery Plate T02086 Small clip T02086 ……………4 T02086 Battery Wheel < Front > < Rear > TR4035 Rear-tyre TR4034 Front-tyre TR4035 Rear sponge TR4034 After fitting wheels to tyres, Front sponge apply instant glue as shown TR4033 Rear Rim...
  • Page 23 All manuals and user guides at all-guides.com Wheel T02084 M4 Flanged Nylon Nut T02084 ……………4 Wing TR4058 T04012 TR4858 M3x10 Screw T04016 Wing ……………2 T04012 Wing washer ……………2 T04012 Wing angle shim-3° T04012 Wing angle shim-3° ……………2 +3 deg 3° 3°...
  • Page 24 All manuals and user guides at all-guides.com Before you install the buttom cover, Bottom Cover you need to disassemble some parts. T04058 Bottom Cover Body T04017 Mask the windows from the inside. Paint the body shell from the inside using pc spray colors.
  • Page 25 All manuals and user guides at all-guides.com Body-Velcro Tape TR4053 TR4053 Velcro Tape Velcro Tape 魔鬼粘 TR4053 TR4053 Velcro Tape Velcro Tape Body T02086 T02086 T02086 Small clip T02086 Small clip ……………1 ……………1...
  • Page 26 All manuals and user guides at all-guides.com...
  • Page 27 All manuals and user guides at all-guides.com Parts list for T4 off-road buggy - 1 T04050 T04051 T04052 T04053 T04054 Front 1pcs Side plate-Left 1pcs Battery Column Rear 1pcs Battery Mount 4pcs Side plate-Right Chassis 1pcs Upper Deck 1pcs 1pcs...
  • Page 28 All manuals and user guides at all-guides.com Parts list for T4 off-road buggy - 2 T04003 T04004 T04005 T04006 T04007 1mm Spacer 2mm Spacer Top - 1pcs 2pcs 1pcs 1pcs 1pcs 2pcs 2pcs Bottom Left 1pcs 1pcs Steering Rack 1pcs...
  • Page 29 All manuals and user guides at all-guides.com Parts list for T4 off-road buggy - 3 TR4007 TR4008 TR4011 TR4016 TR4027 Left - 1pcs Right - 1pcs Left - 1pcs Right - 1pcs 1pcs 1pcs 1pcs 1pcs 1pcs Supr Gear-85T Rear Hub Carriers...
  • Page 30 All manuals and user guides at all-guides.com Parts list for T4 off-road buggy - 4 T02081 T02084 T02086 T02087 86000 Antenna pipe set cover Small clip M4 Flanged Nylon Nut Double-sided tape 1pcs 6pcs 8pcs 1pcs 5.1x8x0.2 Washer 3x7x0.8 Washer...
  • Page 31 All manuals and user guides at all-guides.com Driver Track / City Event Date SETUP SHEET for the TeamC T4 Conditions Smooth Bumpy Low traction Med traction High traction Sandy Soft dirt Grass Hard soil Clay Dusty Other Front Suspension Front Shocks Shock Mounting&Camber link...
  • Page 32 All manuals and user guides at all-guides.com Driver Track / City Event Date SETUP SHEET for the TeamC T4 Conditions Smooth Bumpy Low traction Med traction High traction Sandy Soft dirt Grass Hard soil Clay Dusty Other Front Suspension Front Shocks Shock Mounting&Camber link...
  • Page 33 All manuals and user guides at all-guides.com HOBBYPRO COMPANY LTD. Flat C-D, 5/F., Speedy Ind. BLDG., 114 How Ming Street, Kwun Tong, KLN., Hong Kong. Team C Headquarter www.teamcracing.net Team C America www.teamcamerica.com Team C Europe www.teamceurope.com...
