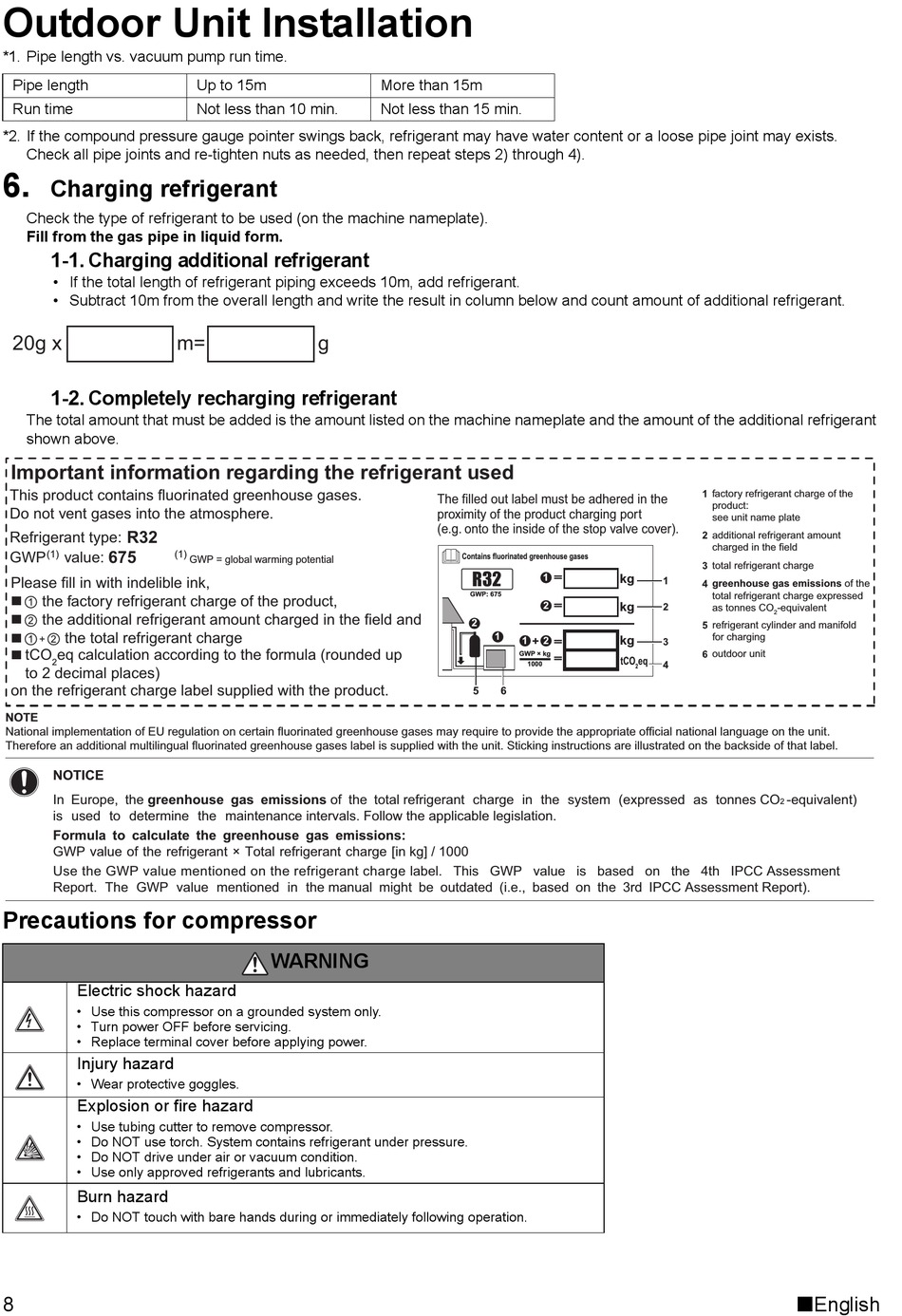

Daikin ARXM25M3V1B9 Installation Manual page 10

Outdoor Unit Installation
*1. Pipe length vs. vacuum pump run time.
Pipe length
Run time
*2. If the compound pressure gauge pointer swings back, refrigerant may have water content or a loose pipe joint may exists.
Check all pipe joints and re-tighten nuts as needed, then repeat steps 2) through 4).
6.
Charging refrigerant
Check the type of refrigerant to be used (on the machine nameplate).
Fill from the gas pipe in liquid form.
1-1. Charging additional refrigerant
• If the total length of refrigerant piping exceeds 10m, add refrigerant.
• Subtract 10m from the overall length and write the result in column below and count amount of additional refrigerant.
20g x
1-2. Completely recharging refrigerant
The total amount that must be added is the amount listed on the machine nameplate and the amount of the additional refrigerant
shown above.
Important information regarding the refrigerant used
This product contains fluorinated greenhouse gases.
Do not vent gases into the atmosphere.
Refrigerant type: R32
(1)
675
GWP value:
Please fill in with indelible ink,
the factory refrigerant charge of the product,
the additional refrigerant amount charged in the field and
the total refrigerant charge
tCO eq calculation according to the formula (rounded up
2
to 2 decimal places)
on the refrigerant charge label supplied with the product.
NOTE
National implementation of EU regulation on certain fluorinated greenhouse gases may require to provide the appropriate official national language on the unit.
Therefore an additional multilingual fluorinated greenhouse gases label is supplied with the unit. Sticking instructions are illustrated on the backside of that label.
NOTICE
In Europe, the greenhouse gas emissions of the total refrigerant charge in the system (expressed as tonnes CO
is used to determine the maintenance intervals. Follow the applicable legislation.
Formula to calculate the greenhouse gas emissions:
GWP value of the refrigerant × Total refrigerant charge [in kg] / 1000
Use the GWP value mentioned on the refrigerant charge label. This GWP value is based on the 4th IPCC Assessment
Report. The GWP value mentioned in the manual might be outdated (i.e., based on the 3rd IPCC Assessment Report).
Precautions for compressor
Electric shock hazard
• Use this compressor on a grounded system only.
• Turn power OFF before servicing.
• Replace terminal cover before applying power.
Injury hazard
• Wear protective goggles.
Explosion or fire hazard
• Use tubing cutter to remove compressor.
• Do NOT use torch. System contains refrigerant under pressure.
• Do NOT drive under air or vacuum condition.
• Use only approved refrigerants and lubricants.
Burn hazard
• Do NOT touch with bare hands during or immediately following operation.
8
Up to 15m
Not less than 10 min.
m= g
(1)
GWP = global warming potential
WARNING
More than 15m
Not less than 15 min.
The filled out label must be adhered in the
proximity of the product charging port
(e.g. onto the inside of the stop valve cover).
Contains fluorinated greenhouse gases
1
GWP: 675
2
2
1
1 + 2
GWP × kg
1000
5 6
factory refrigerant charge of the
product:
see unit name plate
additional refrigerant amount
charged in the field
total refrigerant charge
=
kg
greenhouse gas emissions of the
total refrigerant charge expressed
= kg
as tonnes CO
refrigerant cylinder and manifold
for charging
kg
=
outdoor unit
=
tCO eq
2
-equivalent
2
-equivalent)
2
