- Page 1 Synology Embedded DataStation EDS14 Quick Installation Guide Synology_QIG_EDS14_20140505...
-
Page 2: Table Of Contents
Safety Instructions ................................5 Chapter 2: Hardware Setup Power Your EDS14 ................................6 Prepare Storage for EDS14 .............................. 7 Connect EDS14 to a Local Network ..........................7 Utilize DC Output ................................8 Chapter 3: Access EDS14 Log into DSM on EDS14 ..............................9 Learn More .................................. -
Page 3: Chapter 1: Before You Start
Before You Start Chapter 1: Thank you for purchasing this Synology product! Before setting up your new EDS14, please check the package contents to verify that you have received the items below. Also, make sure to read the safety instructions carefully to avoid harming yourself or damaging your EDS14. -
Page 4: Synology Eds14 At A Glance

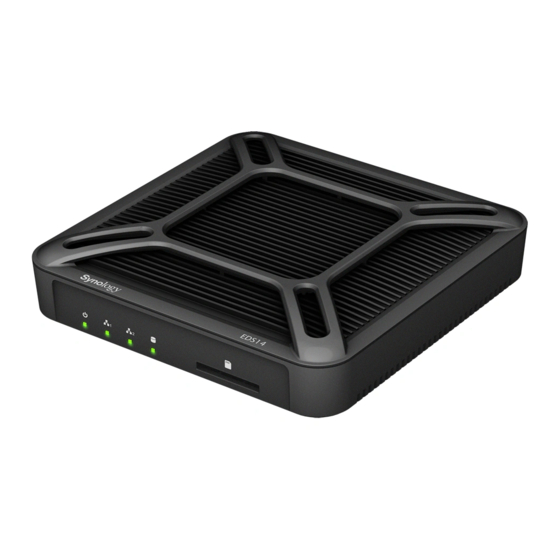

Synology EDS14 at a Glance Article Name Location Description Displays the power status of EDS14. For more information, see "Appendix Power Indicator B: LED Indicator Table". Display the status of network connection. For more information, see LAN Indicators Front "Appendix B: LED Indicator Table". -
Page 5: Safety Instructions
Safety Instructions Keep away from direct sunlight and from chemicals. Make sure the environment does not experience abrupt changes in temperature or humidity. Place the product right side up at all times. Do not place near any liquids. Before cleaning, unplug the power cord. Wipe with damp paper towels. Do not use chemical or aerosol cleaners. -
Page 6: Chapter 2: Hardware Setup
Hardware Setup Chapter 2: Power Your EDS14 Two methods are available to supply power to your EDS14. You may choose either of the following methods according to your needs. Start up with the Adapter 1 Push the button on the adapter provided in the package and pull out the plug case as illustrated below. -
Page 7: Prepare Storage For Eds14
Control Panel > Devices and Printers or press the physical eject button located on your EDS14. Connect EDS14 to a Local Network Your EDS14 comes with two LAN ports. You can use an IEEE 802.3ad compliant switch to enable dual LAN aggregation and failover support. LAN ports are numbered as shown below. -
Page 8: Utilize Dc Output
Utilize DC Output You can leverage the software-controllable DC output on your EDS14 to power external devices according to a schedule. The voltage of this output will be the same as your DC IN (12V from the adapter provided in the package), with a maximum DC current of 1A. -
Page 9: Chapter 3: Access Eds14
EDS14 by logging into DSM with a web browser. Note: It takes three to five minutes for the operating system to be installed the first time EDS14 starts up. Please wait until the power indicator turns static green to proceed. -
Page 10: Appendix A: Specifications
‧English ‧Deutsch ‧Français ‧Italiano ‧Español ‧Dansk ‧Norsk ‧Svensk ‧Nederlands ‧Русский ‧Polski ‧Magyar ‧Português do Brasil ‧Português Europeu Language Localization ‧Türkçe ‧Český ‧日本語‧한국어‧繁體中文‧简体中文 ‧EDS14 with direct DC input: -4 to 122˚F (-20 to 50˚C) Operating Temperature ‧Adapter in package: 32 to 122˚F (0 to 50˚C) Storage Temperature -5 to 140˚F (-20 to 60˚C) -
Page 11: Appendix B: Led Indicator Table
Blinking Service terminating automatically No external device Static Network connected Green Rear LAN Blinking Network active (on left side of jack) No network Note: Model specifications are subject to change without notice. Please refer to www.synology.com for the latest information. - Page 12 IMPORTANT–READ CAREFULLY: THIS END USER LICENSE AGREEMENT ("EULA") IS A LEGAL AGREEMENT BETWEEN YOU (EITHER AN INDIVIDUAL OR A SINGLE ENTITY) AND SYNOLOGY, INC. AND ITS AFFILIATES, INCLUDING SYNOLOGY AMERICAN CORP AND SYNOLOGY UK LTD., (COLLECTIVELY, "SYNOLOGY") FOR ANY SYNOLOGY SOFTWARE, TOGETHER WITH ANY OTHER ASSOCIATED FIRMWARE, MEDIA, PRINTED MATERIALS AND "ONLINE"...
- Page 13 Section 16. Termination. Without prejudice to any other threatened breach of any provision of this EULA relating to rights, Synology may terminate this EULA if you do not abide Synology's intellectual property rights. by the terms and conditions contained herein. In such event, you must cease use of the Software and destroy all copies of Section 20.
- Page 14 THIS LIMITED WARRANTY ("WARRANTY") APPLIES TO THE PRODUCTS (AS DEFINED BELOW) OF SYNOLOGY, INC. AND ITS AFFILIATES, INCLUDING SYNOLOGY AMERICA CORP AND SYNOLOGY UK LTD., (COLLECTIVELY, "SYNOLOGY"). YOU ACCEPT AND AGREE TO BE BOUND BY THE TERMS OF THIS WARRANTY BY OPENING THE PACKAGE CONTAINING AND/OR USING THE PRODUCT.
- Page 15 Product specifications; (b) has been repaired, modified Limitation of Liability. SYNOLOGY'S AND ITS or altered by anyone other than Synology or its agent or designee; (c) has been in any way misused, abused, or SUPPLIERS' LIABILITY ARISING OUT OF OR RELATING damaged;...
- Page 16 Nothing in this Section shall be deemed to prohibit or restrict arbitration and will not be conducted on a class-wide or class Synology from seeking injunctive relief or seeking such other action basis. The arbitration shall be held in King County, rights and remedies as it may have at law or equity for any Washington, U.S.A.
