STEP 5
Slide Bottom Back Panel (E) into the grooves of
Long Engrove Tubes (3), as shown.
3
E
E
FINISHED
SURFACE
UNFINISHED
B
SURFACE
Recommended Maximum Weight
50
30
30
*Unit in Pound(lbs)
All manuals and user guides at all-guides.com
STEP 6
Attach Back Panel (C) to assembled section from
Step 5 using Legs (6) and No-Tip Feet (7).
6
6
7
UNFINISH
C
SURFACE
6 LEG - 2 PCS
7 NO -TIP FEET - 2 PCS
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
its Space. its Budget
7
Approx. 30 minutes
Approx. 20 minutes
Approx. 15 minutes
Approx. 10 minutes
Approx. 5 minutes
Recomm. 2 Person
Recomm. 1 Person
No Tools Required
Tool Required
Tool Required
www.furinno.com
Assembly Instruction

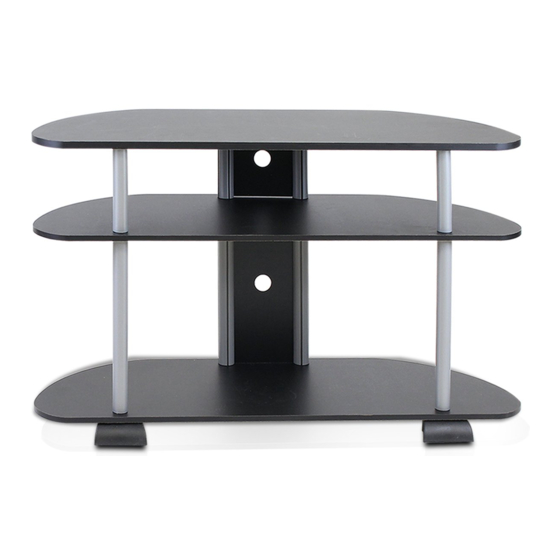

Furinno Turn-N-Tube 3-Tier
TV Entertainment Center
MODEL
:
DIMENSION :
Customer Service
Tel/Fax: 281.500.9372
Toll Free: 773.299.8111 (Mon - Fri 9am - 5pm)
Email: support@furinno.com
99603
38.6"(W) x 22.85"(H) x 13.4"(D)
9960320140923
