AX3000 Thin Client
Ethernet TCP/IP
Model 95
Installation Guide
November 2019 - Ref: I95E1911-4
Model AX3000/M95

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AX3000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Axel AX3000

  • Page 1 AX3000 Thin Client Ethernet TCP/IP Model 95 Installation Guide November 2019 - Ref: I95E1911-4 Model AX3000/M95...
  • Page 2 Fax: 33 1.69.28.82.04 Email: info@axel.com The information in this document is subject to change without notice. AXEL assumes no responsibility for any errors that may appear in this document. All trademarks and registered trademarks are the property of their respective holders.
  • Page 3: Table Of Contents

    1 - NOTICES ......................1 1.1 - SAFETY NOTICES ................... 1 1.2 - E (EMC) ..........1 LECTROMAGNETIC COMPATIBILITY 1.3 - PHYSICAL SPECIFICATIONS ..............2 2 - INSTALLATION ..................... 3 2.1 - DESCRIPTION ..................3 2.2 - INSTALLATION ..................4 2.2.1 –...
  • Page 4 The AXEL AX3000 Thin Client is based on a modular concept. The AXEL AX3000 Thin Client is designed and manufactured by Axel. The terminal's electronics is contained within a slim base unit which provides connections for a VGA or SVGA monitor, keyboard, system printer, serial...
  • Page 5: Notices

    Notices 1 - NOTICES 1.1 - SAFETY NOTICES  Do not attempt to fix a AX3000 M95 Thin Client component failure by opening the terminal case. In case of hardware failure, contact your service representative.  Ensure that the supply voltage of the wall outlet is in accordance with the indications on the AX3000 M95 nameplate.
  • Page 6: Physical Specifications

    Notices and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
  • Page 7: Installation

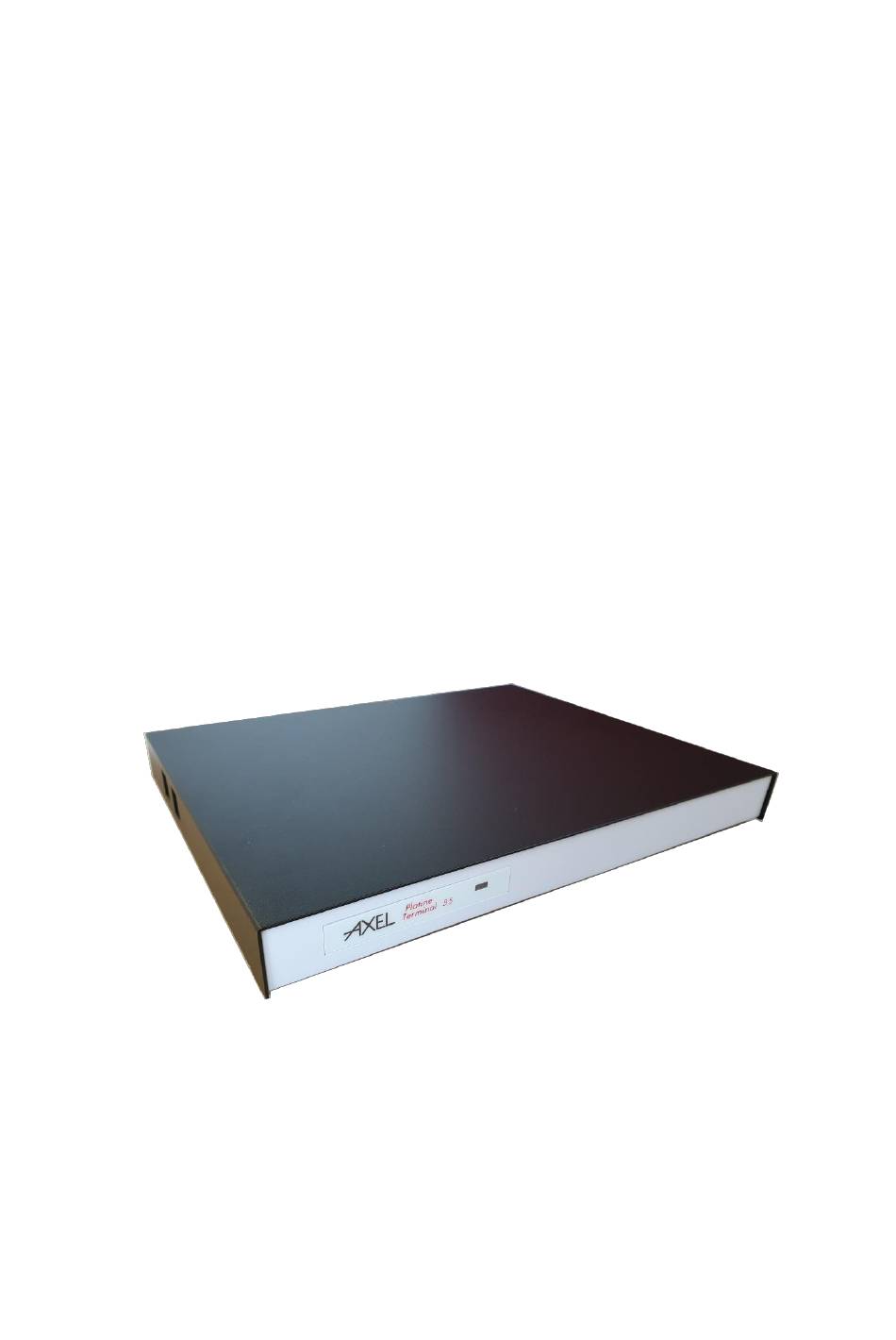

    Installation 2 - INSTALLATION 2.1 - DESCRIPTION A green LED on the front face indicates when the AX3000 Thin Client is powered on. The AX3000 Thin Client has the following connectors and switches on the rear panel: - Power switch,...
  • Page 8: Installation

    AXEL thin client before connecting or disconnecting any cables. Do not plug in the AXEL thin client power cord until all other connectors have been plugged Make sure the AXEL thin client and monitor power switches are in the OFF (0) position before connecting cables to the rear panel.
  • Page 9: Ethernet Connection

    2.2.4 - USB Ports AX3000 Model 95 has four USB ports as a standard feature. These ports are located on the left side of the terminal case. The USB cables must be shielded and cable length must not exceed 3 meters.
  • Page 10: Power On

    The green LED on the front of the terminal should light, and a single audible beep should be heard, to indicate that the AX3000 Thin Client is powered up and operating correctly. The green LED of the RJ45 connector on the rear panel remains lit, to indicate a satisfactory Ethernet connection.
  • Page 11: Quick Installation

    At any time pressing <Ctrl><Alt><Esc> will enter Terminal Set-Up. For more information about set-up, please read the AX3000 M95 User's Manual. 3.1 - QUICK SET-UP The quick set-up is designed for a typical simple environment of:...
  • Page 12 Quick Installation The dialog box structure (referred to as a Wizard) is shown below: FIRST SCREEN Graphical Environment Session Type Testing Graphical Settings (optional) NETWORK CONNECTION IP Settings Server Settings SESSION TYPE Graphic (RDP, CITRIX ...) Text (5250, ANSI, VT …) Other type of Microsoft TSE/RDS sessions...
  • Page 13: Auto-Configuration

    For more information on AxRM’s action in the auto-configuration process, see the manual "Axel Remote Management ". The auto-configuration process is automatically initiated when power is applied to a brand new terminal or if the terminal is reset to factory defaults. This process may be aborted by pressing any key.
  • Page 14: Connector Pin Assignments

    Connector Pin Assignments 4 - CONNECTOR PIN ASSIGNMENTS This chapter describes the connector pin assignments for the different ports of the AX3000 Models 95. 4.1 - ETHERNET PORT RJ45 (LAN) Recommended wiring is a shielded twisted-pair cable (S/FTP), category 5...
  • Page 15: Serial Ports Aux1 And Aux2 (Rj45)

    SG (Signal Ground) CTS (Clear to Send) Input TD (Transmitted Data) Output DCD (Data Carrier Detected) Input 4.2.1 - RJ45-DB9 and RJ45-DB25 adaptors Pin assignment for an adaptor between the peripheral cable and the AX3000 RJ45 connector: Installation Guide - Models 95...
  • Page 16: Peripheral Rj45 Cables

    Connector Pin Assignments 4.2.2 - Peripheral RJ45 cables Pin assignment for a direct connection of a peripheral to the AX3000 RJ45 connector: Installation Guide - Models 95...
  • Page 17: Video Interfaces

    VGA, HDMI and DVI. Note 1 : Only the DisplayPort / VGA adapter must be 'active' type. DisplayPort / HDMI and DisplayPort / DVI adapters must be 'passive'. The AX3000 VGA video interface (and SVGA compatible): VGA/SVGA connector (Models 95 rear panel)
  • Page 18: Parallel Interface

    Connector Pin Assignments 4.4 - PARALLEL INTERFACE The AX3000 Models 95 are equipped with a parallel port. Parallel connector (Models 95 rear panel) Signal Name Strobe Data 0 Data 1 Data 2 Data 3 Data 4 Data 5 Data 6...
  • Page 19: Usb Ports

    Connector Pin Assignments 4.5 - USB PORTS AX3000 Model 95 are equipped with four USB ports located on the left side of the terminal case. Technical specifications: - Supported speeds: - Low-speed (1,5 Mbits), - Full-speed (12 Mbits), - High-speed (480 Mbits).
  • Page 20: Problem Solving

    5 - PROBLEM SOLVING This chapter describes some of the problems, that may occur during installation of the AX3000 Models 95, and offers possible solutions. Safety Warning! Under no circumstances should you attempt to fix a terminal by opening the terminal case. High voltages may be present even when the terminal is switched off.
  • Page 21 Problem Solving Failure to light when the terminal is switched on may be due to any of the following: - the Ethernet cable is disconnected at the far end, - the device (host or hub), to which the network cable is connected, is not switched on, - there is a fault on the Ethernet cable or the cable is wired with incorrect pin assignments.
  • Page 22 14 Avenue du Québec Bât. K2 EVOLIC - BP 728 91962 Courtabœuf cedex - FRANCE Tel.: 33 1.69.28.27.27 Fax: 33 1.69.28.82.04 Email: info@axel.com...
