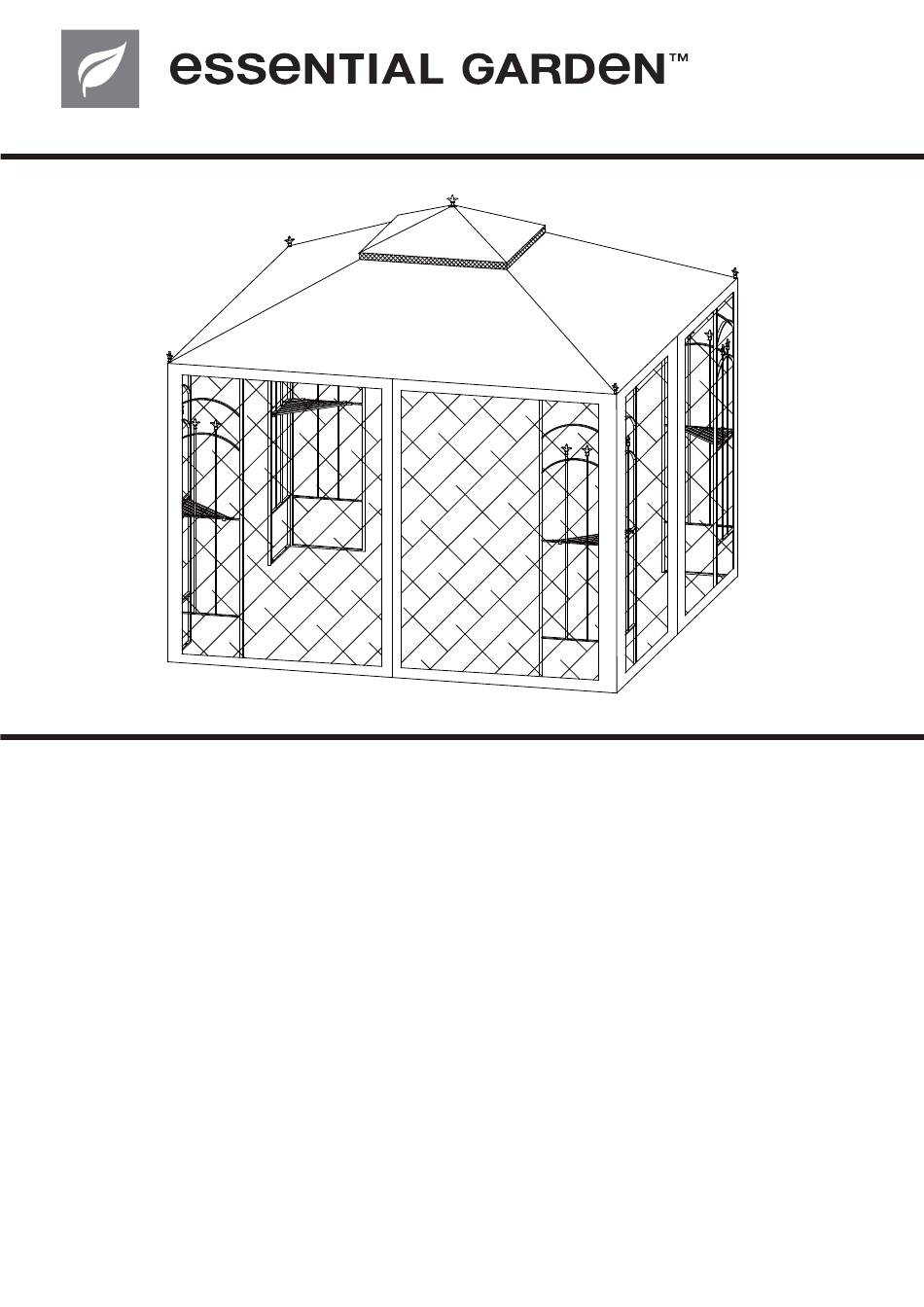

owner's
manual
ARROW GAZEBO
Product code: 780-02673097-8
UPC code: 846822000510
Date of purchase: _____/ _____/ _____

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ARROW 780-02673097-8 and is the answer not in the manual?

Questions and answers

Summary of Contents for Essential Garden ARROW 780-02673097-8

  • Page 1 owner’s manual ARROW GAZEBO Product code: 780-02673097-8 UPC code: 846822000510 Date of purchase: _____/ _____/ _____...
  • Page 2 IMPORTANT: Please read and follow all safety statements, warnings, assembly instructions, use & care directions before attempting to assemble. 1. When installing and assembling your gazebo, it is recommended that 2 or more adults are involved. 2. Do not use the unit during an electrical storm, as there is a remote chance of getting struck by lightening. 3.
  • Page 3 ARROW GAZEBO PARTS LIST Description Qty. Part Big Top Long Pole Connector Big Top Long Pole Big Top Short Pole Big Top Connector Small Top Pole Small Top Connector Corner Shelf Decorative Finial Big Canopy Small Canopy Mosquito Netting...
  • Page 4 ARROW GAZEBO ASSEMBLY INSTRUCTION ARROW GAZEBO HARDWARE PACK 1 Description Qty. Part M6×32 Bolt 28 pcs M6 Washer 44 pcs M6 Nut 16 pcs M6 Wrench 2 pcs Step1 Fig.2 Fig.3 Fig.1 Fig.1 CC BB Fig.3 A1/B1 Fig.2 Fig.1: Connect Screen 1(A1 to Screen 2(B1) by M6 Washer (CC) and M6x32 Bolt (BB).
  • Page 5 ARROW GAZEBO ASSEMBLY INSTRUCTION ARROW GAZEBO HARDWARE PACK 2 Description Qty. Part M6×20 Bolt 4 pcs M6 Washer 4 pcs Fig.8 Step2 Fig.9 Fig.6 Fig.5 Fig.4 Fig.7 Fig.5 Fig.4 Fig.6 Fig.4: Insert Big Top Long Pole Connector (D) into assembled screens (A1/B1). Fig.5: Insert Big Top Long Pole (E) into Big Top Long Pole Connector (D).
  • Page 6 ARROW GAZEBO ASSEMBLY INSTRUCTION ARROW GAZEBO HARDWARE PACK 3 ∮ 6×180 Stake 16pcs Plastic Tie 40pcs Fig.10 Step3 Fig.11 Fig.12 Fig.13 Fig.11 Fig.10 Fig.12 C(A1/B1) Fig.10: Place the big canopy O onto the big top frame but Fig.13 do not layout it completely; place the Small Canopy (P) onto the Small Top, then fix Finial (L) to Small Top Connector (I).
  • Page 7 ARROW GAZEBO ASSEMBLY INSTRUCTION CARE & Maintenance Our steel components for garden accessories and furniture are treated with rust inhibiting paint that protects it from rusting. However, due to the nature of steel, surface oxidation (rusting) will occur once these protective coatings are scratched.
