- Page 1 CE ORGINAL MANUAL Lacros Mustang M250/M500 WWW.LACROS.NL DUTCH ELECTRIC (FOLDING) BIKES INTELLIGENT, RELIABLE AND COMFORTABLE WWW.LACROS.NL...
-
Page 2: For Your Safety
3. Ride the first rides preferably without electrical support to get familiar with your bike. After this you can start with a low setting (electrical assistance). 4. The LACROS bicycles have been tested by our employees. If you have any doubts about the bicycle and/or the electrical installation of the bicycle, we request that you contact us immediately. -
Page 3: Quality Standard

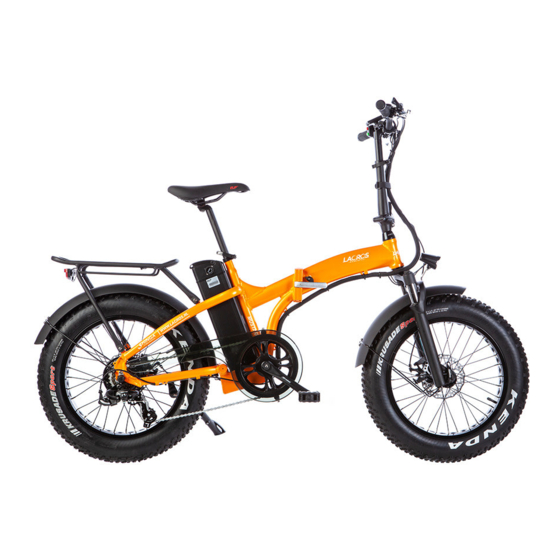

CE ORIGINAL MANUAL LACROS 1.7 EN Quality standard Your product is an electric folding bicycle. The bike is foldable at 2 locations, on the stem and halfway through the frame. The bike is equipped with pedal assistance which is powered by an external battery. -
Page 4: Table Of Contents
CE ORIGINAL MANUAL LACROS 1.7 EN How the electric support works ......8 Table of contents How to charge the battery ........9 For your safety............1 Battery & Charging ..........10 General..............10 Quality standard............2 Charge advice ............10 Unfolding the bike ..........4 Warnings .............. -
Page 5: Unfolding The Bike
CE ORIGINAL MANUAL LACROS 1.7 EN Unfolding the bike Unfold frame Unfold the front and back frame until the frame is straight and the hinge closes. Securing the frame clamp Secure the frame clamp (A + B) by clamping the hook part behind the rear part of the frame and then against the front part of the frame. -
Page 6: Folding The Bike
CE ORIGINAL MANUAL LACROS 1.7 EN Folding the bike Folding Pedals Fold in the kickstand of the bicycle and fold the pedals by pushing the entire pedal towards the bicycle and then folding it up/down. Note: Position the pedals in such a way that they cannot damage the frame when the bicycle is folded. -
Page 7: How To Operate The Bicycle
How to operate the bicycle Switch on battery and read battery status With the Lacros Mustang bicycle, the battery is located behind the saddle. Switch on the electrical system by turning the key (1) to the right. (Note, you have only activated the battery, the display is still off). -
Page 8: Thumb Lever
CE ORIGINAL MANUAL LACROS 1.7 EN Other options of the display Briefly pressing the ‘’M’’ key successively scrolls through various data at the bottom of the display: = Total milage (ODO) (K) = Tripmode (TRIP) (L) = Cycled time (TIME) -
Page 9: The Shifter (1)
CE ORIGINAL MANUAL LACROS 1.7 EN The Shifter The derailleur shifting mechanism is located on the right side of the handlebar. It features a “+” (A) and “–” (B) thumb/finger controls. Pressing (B) shifts up, pressing (A) shifts down. At (C) you can read the current gear. -
Page 10: How To Charge The Battery
CE ORIGINAL MANUAL LACROS 1.7 EN How to charge the battery The battery has one charging point (1) on the right side of the battery. It is recommended to connect the charger to the battery first and then insert the 220V plug into the powersocket. -
Page 11: Battery & Charging
Charge advice • Always charge the battery with the Lacros charger supplied with the bicycle. Do not use any other charger. • The first 2 charges of a new bicycle must be more than 60%. To realize this, wait the first 2 times with charging, until the battery indicator on the display has dropped below 40%. -
Page 12: Safety Regulations
CE ORIGINAL MANUAL LACROS 1.7 EN Safety regulations • Read the supplied manual of your bicycle before using it for the first time. • Strictly follow the traffic rules. • Never disassemble the bicycle yourself. If replacement of a part is necessary, please contact your dealer or Shinga B.V. -
Page 13: Legal Requirements
CE ORIGINAL MANUAL LACROS 1.7 EN Legal requirements Legal requirements According to European legislation, the described vehicle is a bicycle, because the vehicle complies with the following regulations: • From 6 km/h, the support is only active when the user is pedaling. -
Page 14: Technical Specifications
CE ORIGINAL MANUAL LACROS 1.7 EN Technical specifications • Dimensions unfolded (L x W x H): 172x64x118 • Dimensions folded (L x W x H): 100x55x78cm • Frame: Aluminium • Motor type: rear wheel motor • Motor voltage: 36V/250W 48V/500W •... -
Page 15: Declaration Ec
Product: Electric folding bike Model: Name: LACROS Mustang 250W/500W S4 THIS ELECTRIC BIKE IS PRODUCED IN ACCORDANCE WITH AND IN COMPLIANCE WITH THE GUIDELINES OF THE EUROPEAN UNION REGARDING ELECTRIC BIKES WITH A MAXIMUM SPEED <= 25 KM/H AND A MAXIMUM (ENGINE) POWER OF 250W THE FOLLOWING “EN”... - Page 16 CE ORIGINAL MANUAL LACROS 1.7 EN...
