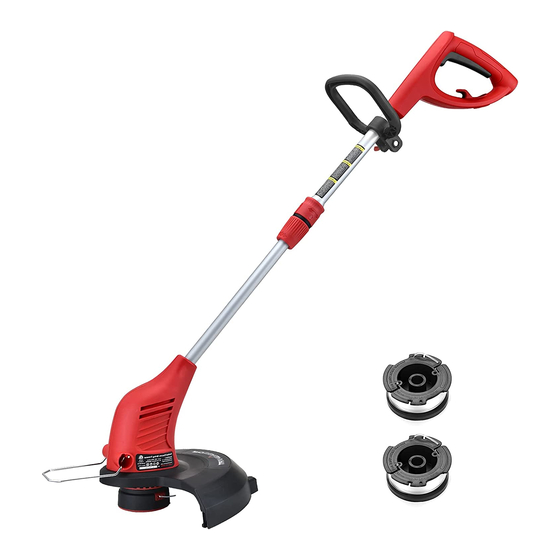

- Page 1 INSTRUCTION MANUAL 13 Inch Corded Electric string trimmer Model # PS8213 Item # ST00213S Have product questions or need technical support? Please feel free to contact us! Website: www.Amerisuninc.com www.powersmartusa.com Toll free: 1-800-791-9458 M-F 9-5 EST Email: support@amerisuninc.com...
-
Page 3: Table Of Contents
Operating instruction…………………………………………………..12 Maintenance……………………………………………………...………. 15 Trouble shooting…………………………………………………………. 15 Exploded view…………………………………………………………… 16 Parts list…………………………………………………………………... 17 Warranty statement………………………………………………………. 18 TECHNICAL DATA 13 Inch Corded Electric string trimmer Model # PS8213 Input: AC120 V,60Hz,4Amp No load speed: 9000 RPM Cutting width: 13" Line diameter: 0.065"... -
Page 4: Introduction
INTRODUCTION ® Thank You for Purchasing a PowerSmart Product. This manual provides information regarding the safe operation and maintenance of this product. Every effort has been made to ensure the accuracy of the ® information in this manual. PowerSmart reserves the right to change this product and specifications at any time without prior notice. -
Page 5: General Safety Rules
GENERAL SAFETY RULES Safety is a combination of common sense, staying alert, and knowing how your string trimmer works. SAVE THESE SAFETY INSTRUCTIONS. WARNING: Do not operate this unit until you read this instruction manual for safety, operation and maintenance instructions. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. - Page 6 WARNING: Do not expose to rain or use in damp locations. Guidelines for using extension cords Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating.
- Page 7 Do not operate the equipment while barefoot or when wearing sandals or similar lightweight footwear. Wear protective footwear that will protect your feet and improve your footing on slippery surfaces. Keep all parts of your body away from any moving part. ...
-
Page 8: Special Safety Rules For Electric String Trimmer
Keep the tool and its handle dry, clean and free from oil and grease. Always use a clean cloth when cleaning. Never use brake fluids, gasoline, petroleum-based products, or any strong solvents to clean your tool. Do not operate the tool if it does not contain a legible warning label. ... -
Page 9: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second) -
Page 10: Knowing Your Electric String Trimmer
KNOWING YOUR ELECTRIC STRING TRIMMER Fig.1 Switch trigger Trimmer head Cord retainer Air vents Rear handle Edger guide Auxiliary handle Safety Guard Locking collar 10 Telescoping shaft Unpacking Unpack the power tool and all its parts, and compare against the list below. Do not discard the carton or any packaging materials. -
Page 11: Assembly Instruction
ASSEMBLY INSTRUCTION WARNING: Do not use this product if any parts on the packing list are already assembled to your product when you unpack it. Parts on this list are not assembled to the product by the manufacturer and require customer installation. Use of a product that may have been improperly assembled could result in serious personal injury. -
Page 12: Operating Instruction
OPERATING INSTRUCTION STARTING/STOPPING THE TRIMMER Before you start the unit, make sure the trimmer is not contacting any object. Attach the outlet end of an extension cord to the plug on the rear of the string trimmer. NOTE: Use only approved outdoor extension cords. Route the extension cord through the slot located on the rear of the string trimmer housing and place ... - Page 13 CUTTING INSTRUCTIONS Basic cutting procedure Wear non-slip gloves for maximum grip and protection. For the best cutting action against walls, fences and in high grass, move trimmer slowly so grass is cut WITH THE TIP of the high speed nylon line. Avoid running trimmer with hub in contact with ground.
- Page 14 Advancing the line manually Disconnect the string trimmer from the power supply, then push the spool retainer button in while pulling on trimmer line to manually advance. REPLACING SPOOL / CLEARING JAMS AND TANGLED LINES Unplug the string trimmer. Push in tabs on side of spool retainer.
-
Page 15: Maintenance
MAINTENANCE WARNING: In order to avoid personal injury and the risk of fire and electric shock, turn off the appliance and remove the mains plug prior to any care and maintenance work. WARNING: When servicing, use only identical replacement parts. Use of any other parts could create a hazard or cause product damage. -
Page 16: Exploded View
EXPLODED VIEW... -
Page 17: Parts List
PARTS LIST Item Stock# Description Qty. PS8213-01 Self tapping screw PS8213-02 Left handle PS8213-03 Spring assembly PS8213-04 UL plug PS8213-05 Switch button PS8213-06 Spring PS8213-07 Micro switch PS8213-08 Right handle PS8213-09 Auxiliary handle knob PS8213-10 Auxiliary handle PS8213-11 Outer six angle bolt... -
Page 18: Warranty Statement
Limited Warranty, you must return the entire power tool product; transportation prepaid, to PowerSmart Include a legible copy of the original receipt, which lists the date of purchase (month and year) and the name of the company purchased from.
