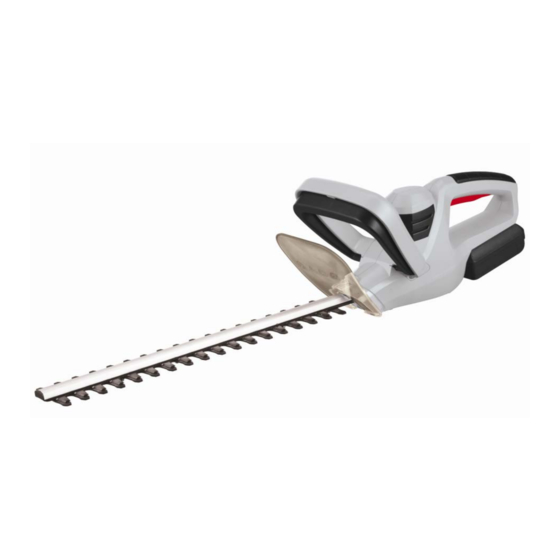

- Page 1 INSTRUCTION MANUAL 18V Lithium-Ion Cordless Hedge Trimmer Model # PS76105A Have product questions or need technical support? Please feel free to contact us! Website: www.Amerisuninc.com Toll free: 1-800-791-9458 M-F 9-5 EST Email: support@amerisuninc.com...
- Page 3 Package dimensions (L x W x H): 33.5 x7.125x7.5 inches Weight: Thank you for purchasing PowerSmart products. Please register online at www. Amerisuninc.com. The information will allow us to track your warranty and update on your unit. Important: Our company does not provide email or personal information to any third party for any reason.
- Page 4 GENERAL SAFETY RULES Safety is a combination of common sense, staying alert, and knowing how your hedge trimmer works. SAVE THESE SAFETY INSTRUCTIONS. WARNING: Do not operate this unit until you read this instruction manual for safety, operation and maintenance instructions. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury.
- Page 5 Keep all parts of your body away from any moving parts and all hot surfaces of the unit. Check the work area before each use. Remove all objects such as rocks, broken glass, nails, wire, or string which can be thrown or become entangled in the machine. ...
- Page 6 When not in use, hedge trimmer should be stored indoors in a dry, locked up place- out of the reach of children. Maintain tool with care. Keep the hedge trimmer clean for best and safest performance. Follow instructions for proper maintenance. Do not attempt to clear clogs from tool without first removing the battery.
- Page 7 SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second)
- Page 8 The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
- Page 9 KNOWING YOUR HEDGE TRIMMER Rear Handle Front Handle Safety Guard Scabbard Blades Battery Switch Trigger Unpacking Unpack the hedge trimmer and all its parts, and compare against the list below. Do not discard the carton or any packaging materials. Please call 1-800-791-91458 or E-mail us at support@amerisuninc.com any parts are damaged or missing.
- Page 10 ASSEMBLY WARNING: Do not use this product if any parts on the packing list are already assembled to your product when you unpack it. Parts on this list are not assembled to the product by the manufacturer and require customer installation. Use of a product that may have been improperly assembled could result in serious personal injury.
- Page 11 OPERATING INSTRUCTIONS WARNING: Read and thoroughly understand all instructions and safety information before operating this hedge trimmer. Failure to do so may cause serious injury or death. Do not allow anyone to operate this hedge trimmer who has not read this manual. a hedge trimmer can be dangerous if assembled or used improperly.
- Page 12 down and away from you in a safe manner. Disconnect the electrical service to the damaged line or cord before attempting to free the blade from the line or cord. Contact with the blade, other conductive parts of the hedge trimmer, or live electric cords or lines will result in death by electrocution or serious injury. Warning: Clear the area to be cut before each use.
- Page 13 MAINTENANCE WARNING: To avoid serious personal injury, always remove the battery pack from the product before inspecting, cleaning or performing any maintenance. Warning: Always wear eye protection with side shields marked to comply with ANSI Z87.1. If operation is dusty, also wear a dust mask. Warning: When servicing, use only identical replacement parts.
- Page 14 The batteries used in this blower's battery pack contain the following toxic and corrosive material: LITHIUM-ION. WARNING: Toxic materials must be disposed of in a specified manner in order to prevent contamination of the environment. Before disposing of damaged or worn out Lithium-Ion battery packs, contact your local waste disposal agency for information and specific instructions.
- Page 15 EXPLODED VIEW & PARTS LIST...
- Page 16 Item stock# Description Item stock# Description PS76105A-030 Gear pin PS76105A-001 Battery PS76105A-031 Retainer 6 PS76105A-002 PCB part PS76105A-032 Bush PS76105A-003 Screw ST3x10 PS76105A-033 Gasket PS76105A-004 Press plate PS76105A-034 Blade holder PS76105A-005 Micro switch PS76105A-035 Bolt M5x30 PS76105A-006 Left housing PS76105A-036...
- Page 17 TWO (2) YEARS LIMITED WARRANTY OF POWER SMART PRODUCTS FOR HOME USE. PowerSmart (“Seller") warrants to the original purchaser only, that all PowerSmart consumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase. Ninety (90) days for all Power Smart Products, if the tool is used for professional or commercial use.
