- Page 1 INSTRUCTION MANUAL 36V Lithium-Ion Cordless String Trimmer Model # PS76210A Have product questions or need technical support? Please feel free to contact us! Website: www.Amerisuninc.com Toll free: 1-800-791-9458 M-F 9-5 EST Email: support@amerisuninc.com...
-
Page 3: Technical Data
35.4 x8.07 x5.9 inches Weight: 9.55 lb. Thank you for purchasing PowerSmart products. Please register online at www. Amerisuninc.com. The information will allow us to track your warranty and update on your unit. Important: Our company does not provide email or personal information to any third party for any reason. -
Page 4: General Safety Rules
GENERAL SAFETY RULES Safety is a combination of common sense, staying alert, and knowing how your string trimmer works. SAVE THESE SAFETY INSTRUCTIONS. WARNING: Do not operate this unit until you read this instruction manual for safety, operation and maintenance instructions. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury. - Page 5 Keep all parts of your body away from any moving parts and all hot surfaces of the unit. Check the work area before each use. Remove all objects such as rocks, broken glass, nails, wire, or string which can be thrown or become entangled in the machine. ...
-
Page 6: Save These Instructions
When not in use, string trimmer should be stored indoors in a dry, locked up place- out of the reach of children. Maintain tool with care. Keep the string trimmer clean for best and safest performance. Follow instructions for proper maintenance. Do not attempt to clear clogs from tool without first removing the battery. - Page 7 SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second)
- Page 8 The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.

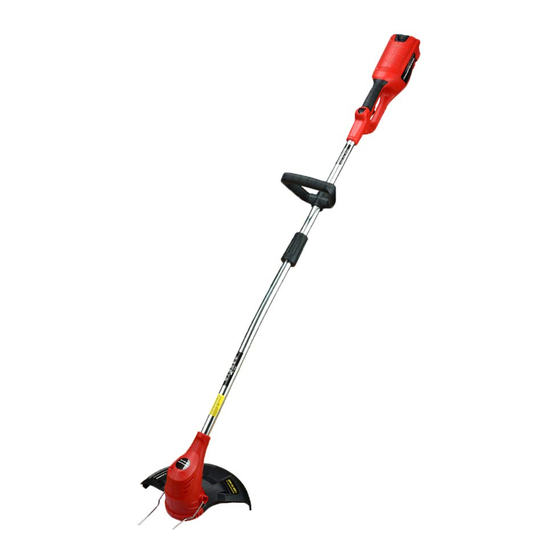

- Page 9 KNOWING YOUR STRING TRIMMER Trigger switch Rear handle Lock off button Front handle Lower tube Motor housing Guard Protector Front tube Unpacking Unpack the string trimmer and all its parts, and compare against the list below. Do not discard the carton or any packaging materials.
-
Page 10: Assembly Instructions
ASSEMBLY INSTRUCTIONS WARNING: Do not use this product if any parts on the packing list are already assembled to your product when you unpack it. Parts on this list are not assembled to the product by the manufacturer and require customer installation. Use of a product that may have been improperly assembled could result in serious personal injury. - Page 11 INSTALLING THE PROTECTOR To fit the protector, insert the tails of the protector into the holes located on each side of the motor housing (see fig 3). The protector will lift vertically when not in use. Fig. 3 ATTACHING THE FRONT HANDLE ...
- Page 12 CONNECTING AND REMOVING BATTERY IMPORTANT! The battery pack is not charged when it is purchased. Before using the string trimmer for the first time, place the battery pack in the battery charger and charge. Make sure to read all safety precautions, and follow the instructions in the battery charger section.
-
Page 13: Operating Instructions
OPERATING INSTRUCTIONS WARNING: Read and thoroughly understand all instructions and safety information before operating this string trimmer. Failure to do so may cause serious injury or death. Do not allow anyone to operate this string trimmer who has not read this manual. a string trimmer can be dangerous if assembled or used improperly. - Page 14 INCREASING THE CUTTING LINE 1. Before starting ensure the cutting line is the correct length. Pull the cutting line to the edge of the guard 2. During operation, to increase the length of the cutting line, stop and re-start the trimmer line. Each time the trimmer is started and stopped the line will feed out approx 10mm.
- Page 15 MAINTENANCE WARNING: In order to avoid personal injury and the risk of fire and electric shock, remove the battery pack before adjusting, inspecting, or cleaning the string trimmer. CLEANING THE SPOOL HEAD Remove the battery pack. Stop the motor and remove the battery pack. ...
-
Page 16: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAFE BATTERY DISPOSAL The batteries used in this blower's battery pack contain the following toxic and corrosive material: LITHIUM-ION. WARNING: Toxic materials must be disposed of in a specified manner in order to prevent contamination of the environment. Before disposing of damaged or worn out Lithium-Ion battery packs, contact your local waste disposal agency for information and specific instructions. -
Page 17: Trouble Shooting
TROUBLE SHOOTING The following form lists the common operating system with problem and solutions. Please read the form carefully and follow it. PROBLEMS POSSIBLE CAUSES SOLUTION Motor fails to start when Check battery charger Recharge switch trigger is Check power button Push button. - Page 18 EXPLODED VIEW & PARTS LIST...
- Page 19 Item Stock# Description Item Stock# Description PS76210A-032 Female terminal PS76210A-001 Screw ST4x14 PS76210A-033 Seat of female terminal PS76210A-002 Auxiliary handle right PS76210A-034 Male terminal PS76210A-003 Square nut PS76210A-035 Seat of male terminal PS76210A-004 Auxiliary handle left PS76210A-036 External thread sleeve...
- Page 20 TWO (2) YEARS LIMITED WARRANTY OF POWER SMART PRODUCTS FOR HOME USE. PowerSmart (“Seller") warrants to the original purchaser only, that all PowerSmart consumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase. Ninety (90) days for all Power Smart Products, if the tool is used for professional or commercial use.
