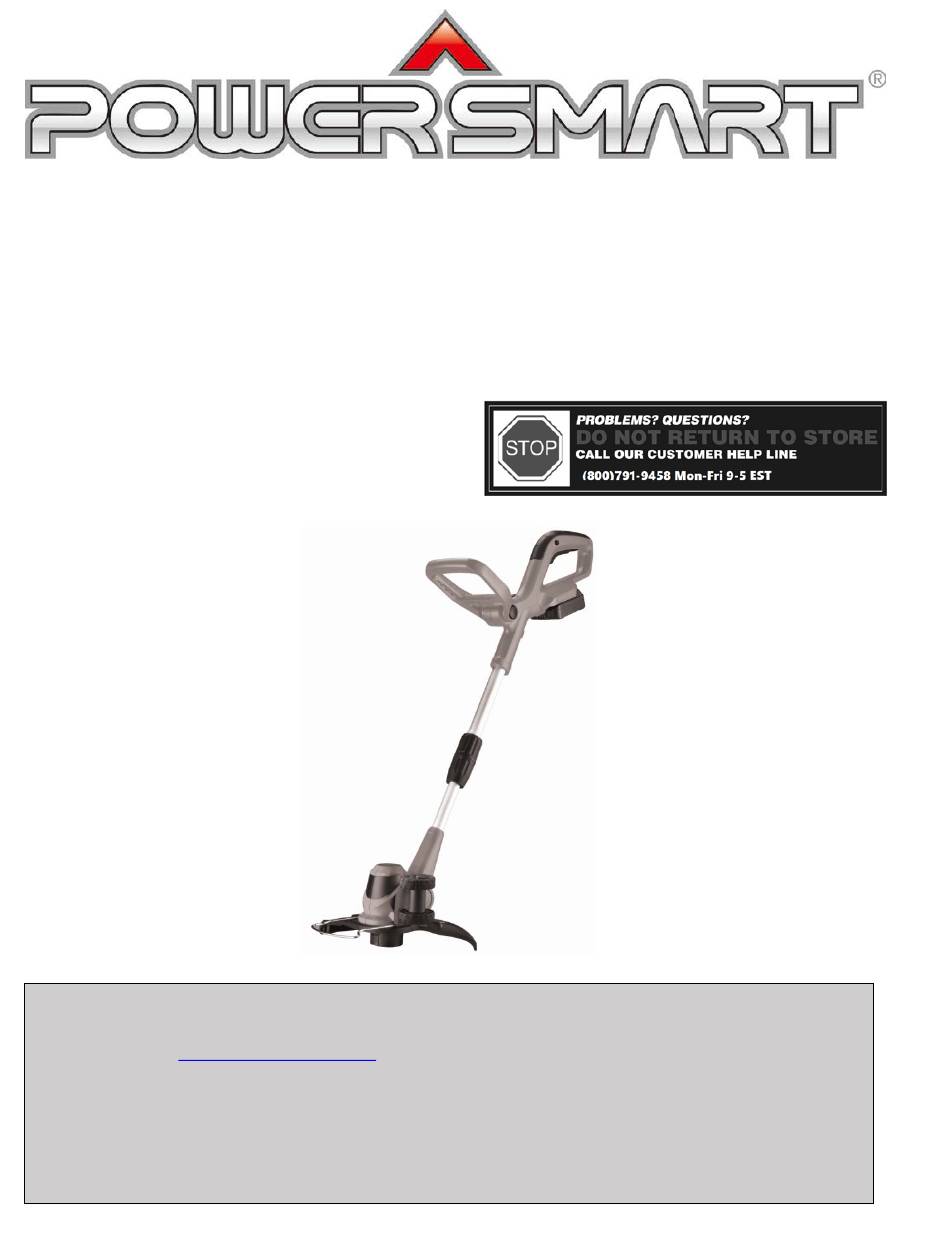

- Page 1 INSTRUCTION MANUAL 18V Lithium-Ion Cordless String Trimmer Model # PS76110A Have product questions or need technical support? Please feel free to contact us! Website: www.Amerisuninc.com Toll free: 1-800-791-9458 M-F 9-5 EST Email: support@amerisuninc.com...
- Page 3 Weight: 6.6 lb. Thank you for purchasing PowerSmart products. Please register online at www. Amerisuninc.com. The information will allow us to track your warranty and update on your unit. Important: Our company does not provide email or personal information to any third party for any reason.
- Page 4 GENERAL SAFETY RULES Safety is a combination of common sense, staying alert, and knowing how your string trimmer works. SAVE THESE SAFETY INSTRUCTIONS. WARNING: Do not operate this unit until you read this instruction manual for safety, operation and maintenance instructions. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious personal injury.
- Page 5 Keep all parts of your body away from any moving parts and all hot surfaces of the unit. Check the work area before each use. Remove all objects such as rocks, broken glass, nails, wire, or string which can be thrown or become entangled in the machine. ...
- Page 6 When not in use, string trimmer should be stored indoors in a dry, locked up place- out of the reach of children. Maintain tool with care. Keep the string trimmer clean for best and safest performance. Follow instructions for proper maintenance. Do not attempt to clear clogs from tool without first removing the battery.
- Page 7 SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second) Watts Power Minutes Time Safety Alert Precautions that involve your safety. Read the user’s To reduce the risk of injury, user must read and understand user’s manual manual before using this product. Eye protection Wear eye protection when operating this equipment.
- Page 8 SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury. CAUTION Indicates a potentially hazardous situation, which, if not avoided, may result in minor or moderate injury.

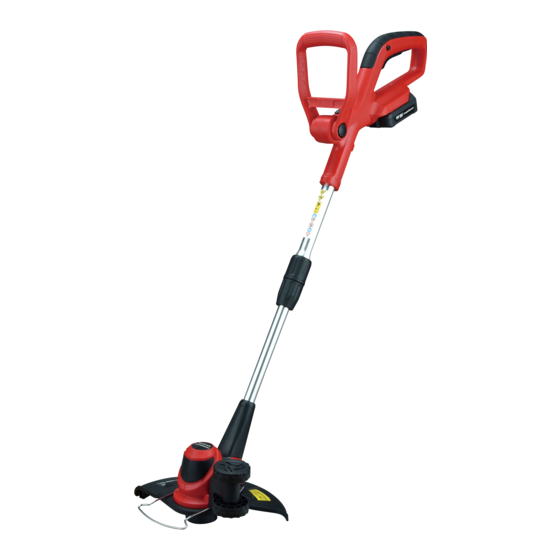

- Page 9 KNOWING YOUR STRING TRIMMER Trigger switch Lock off button Front handle Edger function switch Shaft adjustment lock Motor housing Edger wheel Protector Guard Front handle adjustment button Telescopic shaft Spool and line assembly Unpacking Unpack the string trimmer and all its parts, and compare against the list below. Do not discard the carton or any packaging materials.
- Page 10 WARNING: Do not use this product if any parts on the packing list are already assembled to your product when you unpack it. Parts on this list are not assembled to the product by the manufacturer and require customer installation. Use of a product that may have been improperly assembled could result in serious personal injury.
- Page 11 package (see fig 3) Fig. 3 When in edging mode, the edging wheel ( G ) needs to be fit on the trimmer. Insert the edging wheel into the black slot piece on the motor housing ( F) .(See fig4). Make sure the edging wheel is firmly connects with slot.
- Page 12 Replace the battery pack or the charger immediately if the battery case or charger cord is damaged. Verify that the battery pack is removed before inspecting, adjusting, or performing maintenance on any part of the string trimmer. Read, understand, and follow the instructions. OPERATING INSTRUCTIONS WARNING: Read and thoroughly understand all instructions and safety information before operating this string trimmer.
- Page 13 WARNING: Remove the battery from string trimmer before performing adjustments. The PS76110A is designed to offer both trimming and edging function. To switch from trimming to edging, you press the edger function switch ( D )on the tool, and firmly holding the telescopic shaft (K) in one hand and turn to left.
- Page 14 1. Lower the protector to prevent the motor housing from getting too close to an object such as a tree trunk or wall and causing damage to the trimming spool. 2. Start the trimmer before approaching the grass to be cut. 3.
- Page 15 Remove the battery pack. Stop the motor and remove the battery pack. Clean dirt and debris from the spool head using a damp cloth with a mild detergent. NOTE: Wipe off the housing and the plastic components using a moist, soft cloth. Do not use strong solvents or detergents on the plastic housing or plastic components.
- Page 16 of the environment. Before disposing of damaged or worn out Lithium-Ion battery packs, contact your local waste disposal agency for information and specific instructions. Take the batteries to a local recycling and/or disposal centre that is certified for disposal. If the battery pack cracks or breaks, whether it leaks or not, do not recharge it and do not use it. Dispose of it and replace it with a new battery pack.
- Page 17 TROUBLE SHOOTING The following form lists the common operating system with problem and solutions. Please read the form carefully and follow it. PROBLEMS POSSIBLE CAUSES SOLUTION Motor fails to start when Check battery charger Recharge switch trigger is Check power button Push button.
- Page 18 EXPLODED VIEW & PARTS LIST...
- Page 19 Item Stock# Description Item Stock# Description PS76110A-001 Left rear handle PS76110A-032 Screw PS76110A-002 Button PS76110A-003 Spring PS76110A-033 Screw ST4x12 PS76110A-004 Handle button PS76110A-034 Spring PS76110A-035 PS76110A-005 Front handle Revolve button PS76110A-036 joint slider block PS76110A-006 Spring wire PS76110A-007 Wheel PS76110A-037...
- Page 20 TWO (2) YEARS LIMITED WARRANTY OF POWER SMART PRODUCTS FOR HOME USE. PowerSmart (“Seller") warrants to the original purchaser only, that all PowerSmart consumer power tools will be free from defects in material or workmanship for a period of two (2) years from date of purchase. Ninety (90) days for all Power Smart Products, if the tool is used for professional or commercial use.
