Blue Clean AR142 Owner's Manual page 8

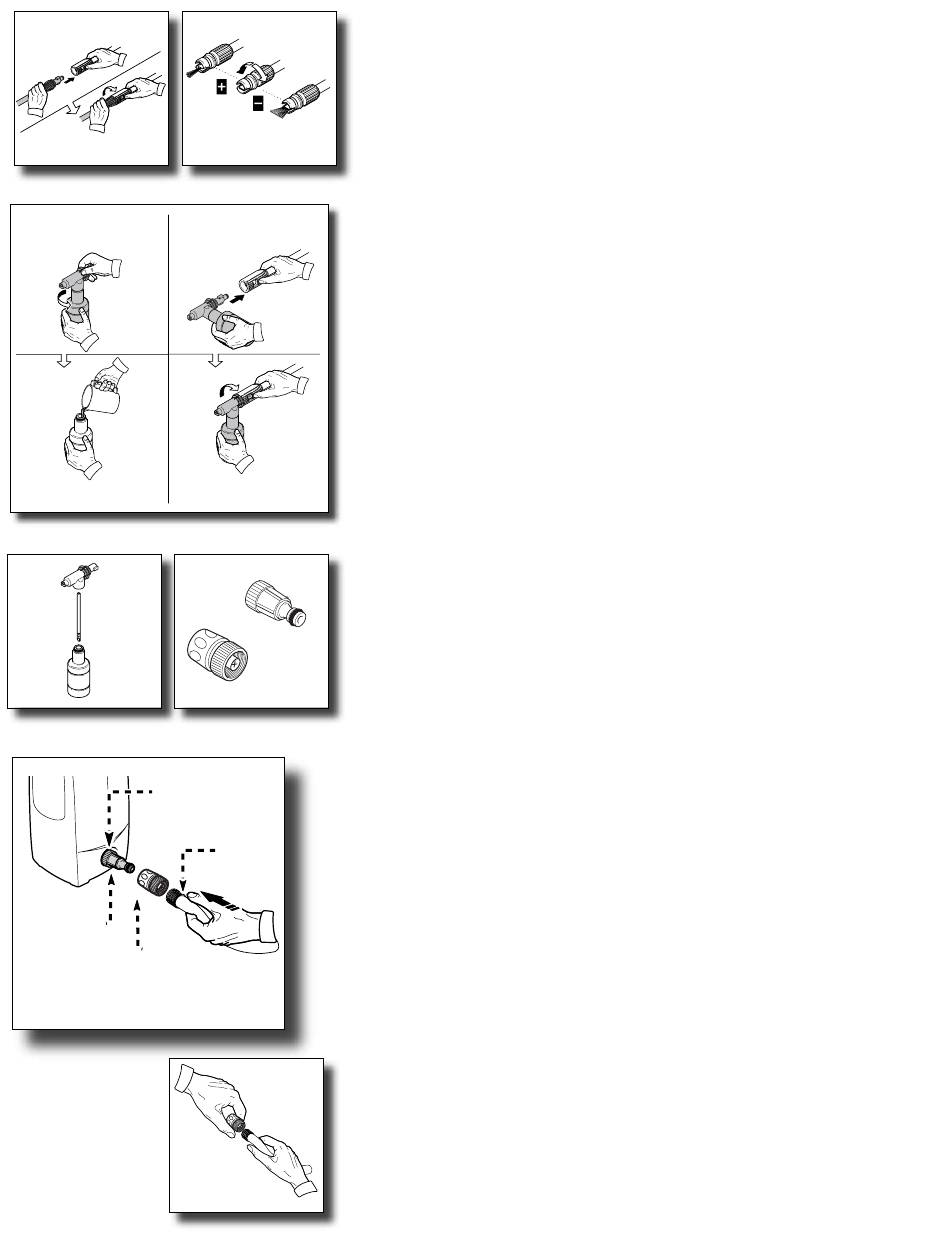

Fig. 5
Fig. 6
Fig. 7
Fig. 8 Fig. 9
Pump
QC-Clear
Adapter
Garden
Hose
Adapter
Fig. 10
En - 8
Fig. 11
Lances and Detergent bottle
• While the spray gun is in the locked position, insert
• If additional length is needed, you can use the extension
• When using the adjustable spray lance, the spray pat-
QC - Clear
Adapter
• When using the detergent bottle, fill it with a properly
Garden Hose
Adapter (GHA)
Garden Hose Adapter
Hose
• Install the garden hose adapter (GHA) and quick connect
• First, remove the plastic shipping cover on the water
• To remove the water hose, simply pull back on the blue
the adjustable lance, turbo lance, extension lance with
twister, fixed brush or the detergent bottle directly into the
end of the spray gun by inserting, pushing together and
turning clockwise simultaneously (Fig. 5). To remove push
together and turn counter clockwise. Push the safety
lock button to lock the trigger when changing the lances,
brushes or the detergent bottle, to ensure that they do not
accidentally eject with force during removal.
lance with any of the other attachments, not just the
twister surface cleaner. Attach the extension lance
directly to the spray gun, and then add the accessory on
to the extension lance. This will increase your cleaning
distance by an additional 15 inches.
tern and intensity can be controlled according to power of
water needed for each task by twisting the spray nozzle
at the far end of the lance (Fig. 6). This can be used for
sweeping leaves or debris from flat surfaces or curbing.
This lance has the widest variety of applications as the
fan degree allows for good impact pressure and cleaning
coverage.
formulated detergent or cleaner with a water ratio
according to instructions on the container (Fig. 7). The
detergent bottle comes with a straw which is fitted into the
screw-on top. If you do not see the straw, look inside the
bottle and attach it to the screw-on top (Fig. 8).
*Note: the ratio of water to detergent is 10:1 or 10 parts
water to 1 part detergent.
filter. It is made up of two separate pieces. (1) A clear
plastic adapter with a screen filter (about 3 inches long)
and (2) a blue/black collar attachment (Fig. 9).
inlet on the front of the power washer. Attach the clear
plastic adapter by screwing it into the water inlet (Fig.
10). Hand tight is fine. Next screw on the blue/black collar
attachment to your garden hose (Fig. 11). Slide the blue/
black collar onto the clear adapter, it will "click" into place.
The water is now connected to your power washer.
collar and it will slide off the clear adapter. Note: this
can be done at any time. Water will not come out of the
