SVSi N1000 Series Quick Start

N1000 QUICK START
Congratulations on the purchase of your N1000 series product — part of SVSi's family of
Networked AV products. An SVSi Networked AV system comprises video and/or audio encoders,
decoders, and other network accessories including recording solutions, multi-window processing,
audio-only end points, and system controllers. The system allows you to distribute HD Video,
Audio and Control across a gigabit Ethernet network. Options are available for recording,
playback, and wall processing.
1 2
1
1 2
1) 12VDC Input (not needed with PoE)
2) Status Indicators
3) RJ45 Auto-Sensing Gigabit Ethernet
Switch Port — PoE
4) IR 2-Pin Phoenix Connector
Network Bandwidth per video stream = 880Mbs. All units must be home-runned to a gigabit Ethernet layer-3
switch supporting IGMP-query with Immediate Leave. Please contact SVSi to obtain a pre-configured switch or
for details on configuring an existing switch.
Analog or digital video is input through the DVI-I connector on the N1000 encoder and converted to
network packets for output through the RJ45 connector. Audio can be input as embedded digital
audio through the DVI-I connector or as balanced/unbalanced analog audio through the 5-pin
phoenix connector. Both encoder and decoder can be powered either +12V externally with optional
power supply or by power-over-Ethernet (PoE).
The N1000 series decoder accepts the network packets and reconstitutes synchronized video and
audio for display through its DVI-D port. Digital-only video is output by the decoder. Audio can be
output as embedded digital audio through the DVI-D connector or as balanced/unbalanced analog
audio through the 5-pin phoenix connector. IR and serial commands can be transmitted by either
encoder or decoder using SVSi's free N-Able configuration software, SVSi's N8000-series
controller, or using third party controllers. IR and serial ports are not pass-through and must use a
central controller to direct commands to each device.

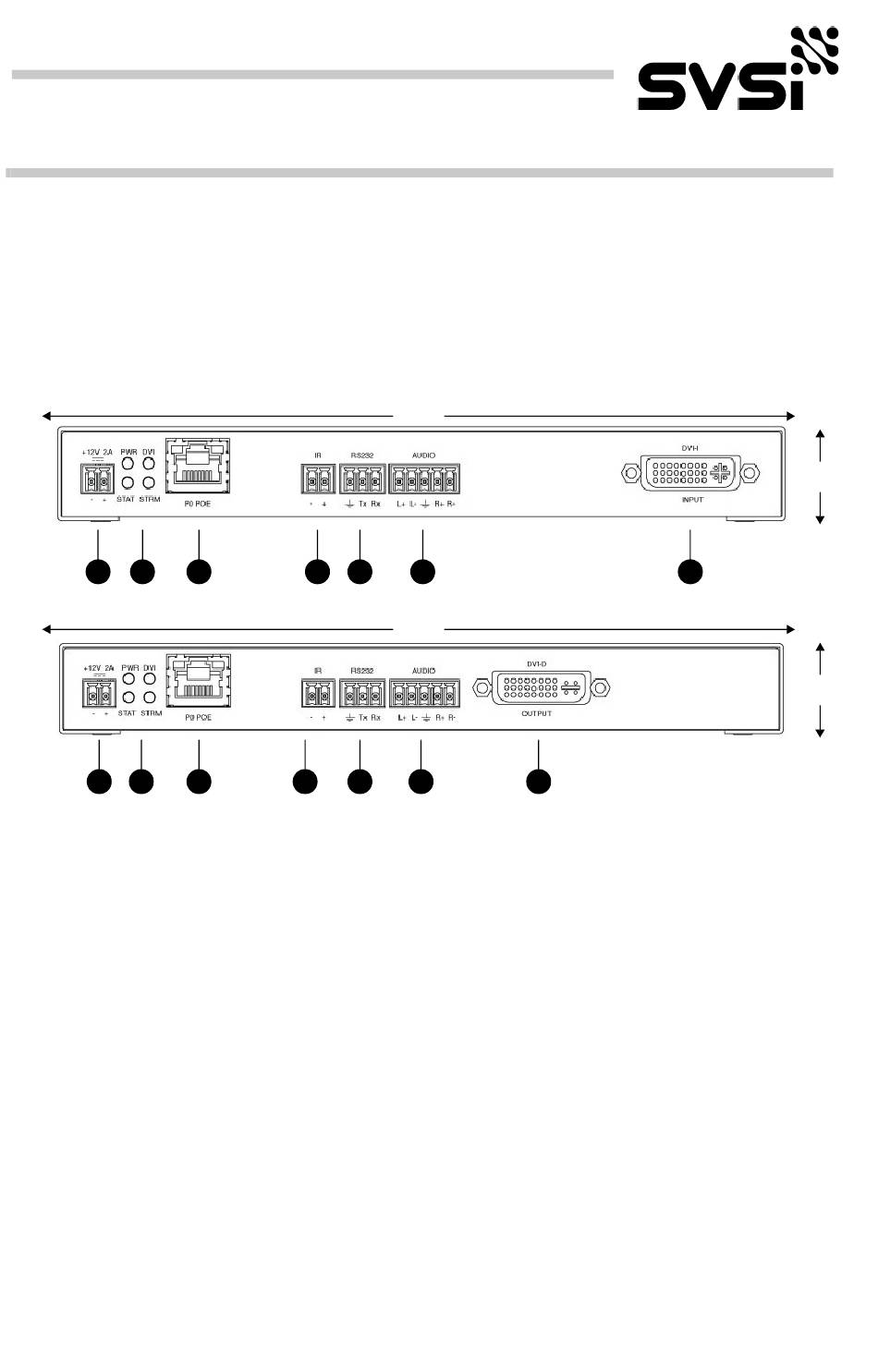

N1000 Series Encoder Rear View
3 4 5
N1000 Series Decoder Rear View
3 4 5
7.888
6
7.888
8 9
5) RS232 Connection
6) Analog Audio Input Connection
7) DVI-I Digital Input
8) Analog Audio Output Connection
9) DVI-D Digital Output
1.050
7
1.050
