SVSi N2000 series Quick Start

N2000 QUICK START
Congratulations on the purchase of your N2000 series product — part of SVSi's family of Networked AV
products. SVSi's N2000 product line includes the N2121 and N2141 encoders and the N2211, N2221,
and N2241 decoders. An SVSi Networked AV system comprises video and/or audio encoders, decoders,
and other network accessories including recording solutions, multi-window processing, audio-only end
points, and system controllers. The system allows you to distribute HD Video, Audio and Control across
a gigabit Ethernet network. Options are available for recording, playback, and wall processing.
1 2
1
1 2
1) 12VDC Input (not needed with PoE)
2) Status Indicators
3) RJ45 Auto-Sensing Gigabit Ethernet
Switch Port — PoE*
4) RJ45 Auto-Sensing Gigabit Ethernet
Switch Port
5) Infrared (IR) Emitter Connection*
*Not available on the N2211 Decoder.
Network Bandwidth per video stream = 20-500Mbs (user-selectable). Units can be daisy-chained or connected
to a gigabit Ethernet layer-3 switch supporting IGMP-query. Please contact SVSi to obtain a pre-configured
switch, or more details regarding daisy-chaining limitations.
The DVI-I connector on the N2000 encoder auto-senses either analog or digital video and converts input
video to network packets for output through the RJ45 connector. Audio can be input as embedded digital
audio through the DVI-I connector or as balanced analog audio through the 5-pin phoenix AUDIO
connector. Both encoder and decoder can be powered either using the 12V optional external power
supply or by Power-over-Ethernet (PoE).
The N2000 series decoder accepts the network packets and reconstitutes synchronized video and audio
for display through its DVI-D port. Digital-only video is output by the decoder. IR and serial commands
can be transmitted by either encoder or decoder using SVSi's free N-Able configuration software, SVSi's
N8000-series controller, or using third party controllers. IR and RS232 serial ports are not pass-through
and must use a central controller to direct commands to each device.

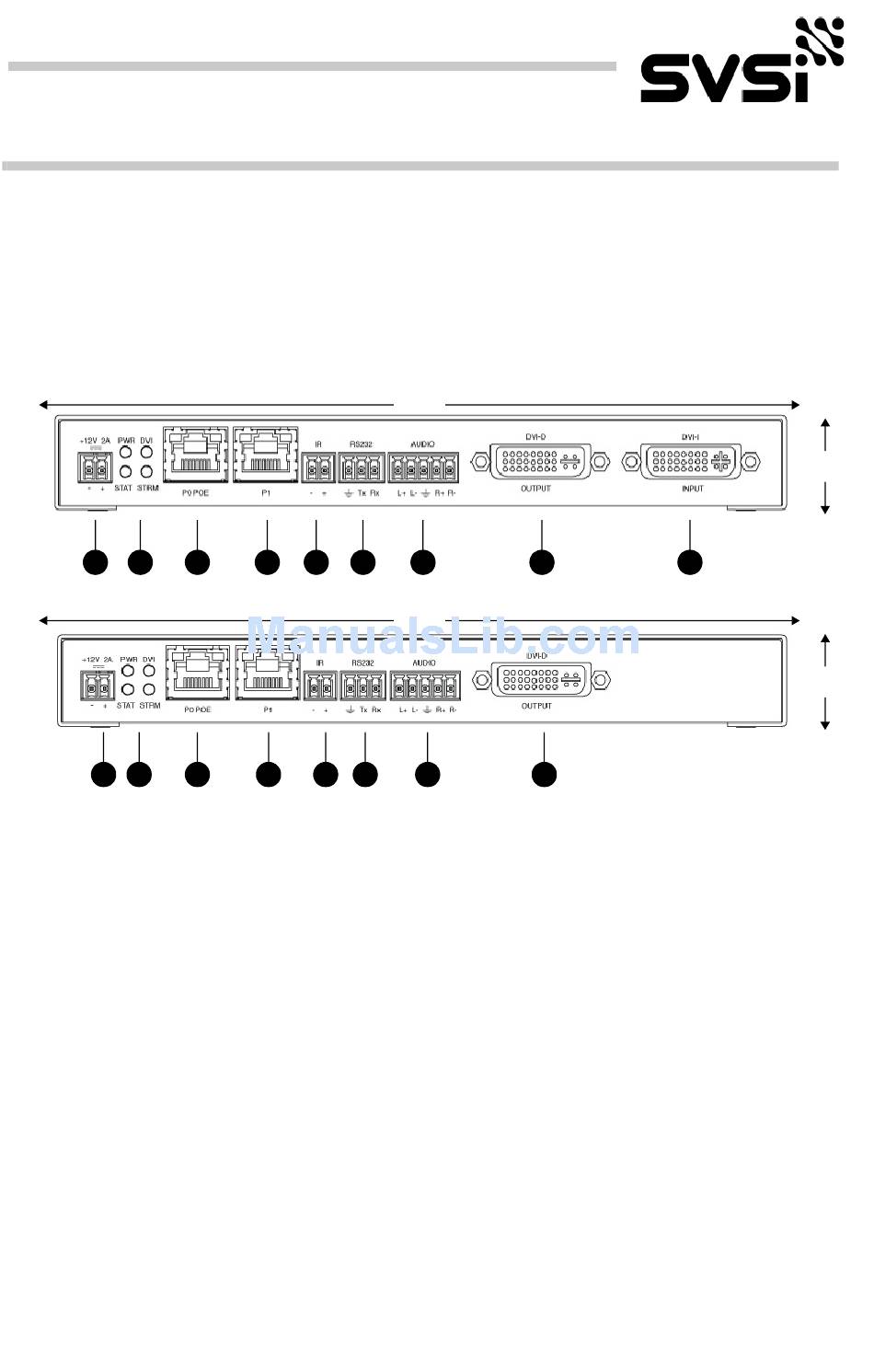

N2000 Series Encoder Rear View
3 4 5
N2000 Series Decoder Rear View
3 4 5
7.888
6 7
7.888
6 10
6) RS232 Connection
7) Analog Audio Input Connection*
8) Pass-Through DVI-D Connection
9) DVI-I Digital Input
10) Analog Audio Output Connection
11) DVI-D Digital Output
8 9
11
1.050
1.050
