SVSi N2X43 Series Quick Start Manual

N2X43 QUICK START
Congratulations on the purchase of your N2X43 series product — part of SVSi's family of
Networked AV products. SVSi's N2X43 product line includes the N2143 HD Encoder and the
N2243 HD Decoder. An SVSi Networked AV system comprises video and/or audio encoders,
decoders, and other network accessories including recording solutions, multi-window processing,
audio-only end points, and system controllers. The system allows you to distribute HD Video,
Audio and Control across a gigabit Ethernet network. Options are available for recording,
playback, and wall processing.
1 2
1
1 2
1) 12VDC Input (not needed with PoE)
2) Status Indicators
3) RJ45 Auto-Sensing Gigabit Ethernet
Switch Port — PoE
4) RJ45 Auto-Sensing Gigabit Ethernet
Switch Port
5) Infrared (IR) Emitter Connection
6) RS232 Connection
7) Analog Audio Input Connection
Network Bandwidth per video stream = 20-500Mbs (user-selectable). Units should be connected to a gigabit
Ethernet layer-3 switch supporting IGMP-query. Please contact SVSi to obtain a pre-configured switch.

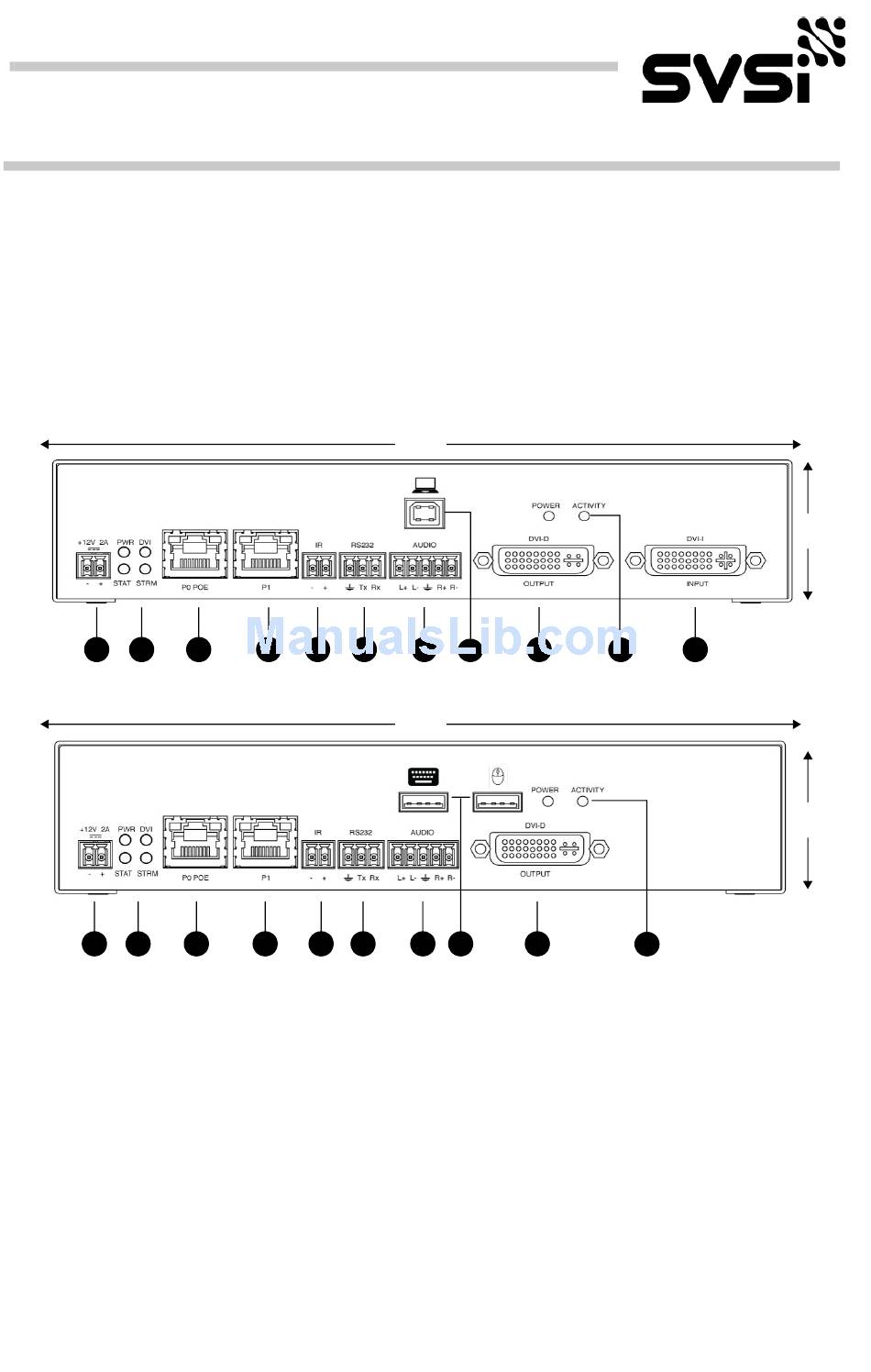

N2143 HD Encoder Rear View
3 4 5
N2243 HD Decoder Rear View
3 4 5
7.888
6 7
8
7.888
6 12 13
8) USB (Standard-B) PC Host Connection
9) Pass-Through DVI-D Connection
10) KVM Status Indicators
11) DVI-I Digital with 7.1 Audio or Analog Video
Input
12) Analog Audio Output Connection
13) USB (Standard-A) Keyboard or Mouse
Connection
14) DVI-D Digital Video Output with 7.1 Audio
9 10 11
14 10
1.7
11
1.7
