N2X43 QUICK START
Congratulations on the purchase of your N2X43 series product — part of SVSi's family of
Networked AV products. SVSi's N2X43 product line includes the N2143 HD Encoder and the
N2243 HD Decoder. An SVSi Networked AV system is comprised of video and/or audio encoders,
decoders, and other network accessories including recording solutions, multi-window processing,
audio-only end points, and system controllers. The system allows you to distribute HD Video,
Audio and Control across a gigabit Ethernet network. Options are available for recording,
playback, and wall processing.
1
2
1
1
2
1) 12VDC Input (not needed with PoE)
2) Status Indicators
3) RJ45 Auto-Sensing Gigabit Ethernet
Switch Port — PoE
4) RJ45 Auto-Sensing Gigabit Ethernet
Switch Port
5) Infrared (IR) Emitter Connection
6) RS232 Connection
7) Analog Audio Input Connection
Network Bandwidth per video stream = 20-500Mbs (user-selectable). Units should be connected to a gigabit
Ethernet layer-3 switch supporting IGMP-query. Please contact SVSi to obtain a pre-configured switch.

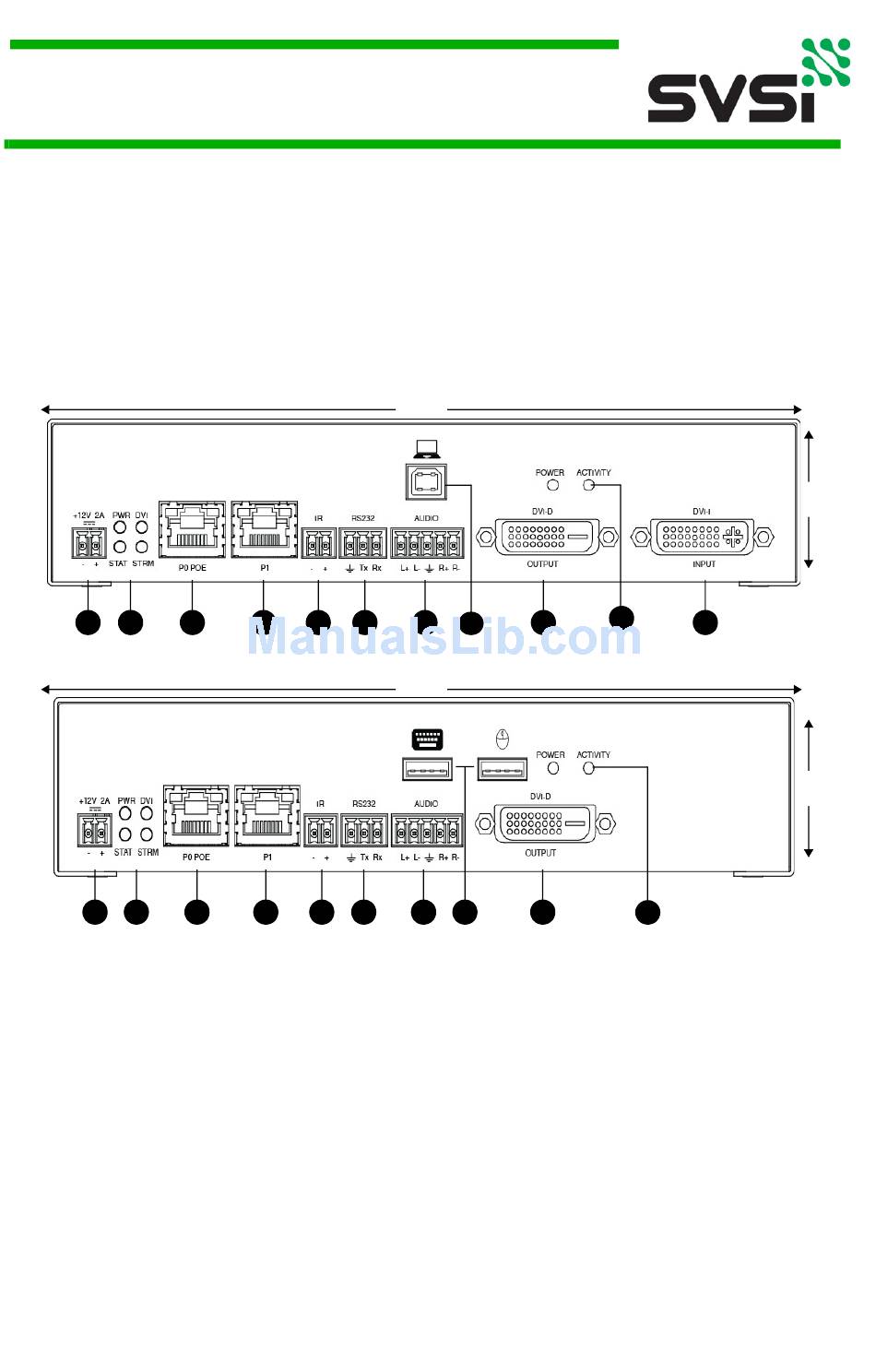

N2143 HD Encoder Rear View
3
4
5
N2243 HD Decoder Rear View
3
4
5
7.888
6
7
8
7.888
6
12
13
8) USB (Standard-B) PC Host Connection
9) Pass-Through DVI-D Connection
10) KVM Status Indicators
11) DVI-I Digital with 7.1 Audio or Analog Video
Input
12) Analog Audio Output Connection
13) USB (Standard-A) Keyboard or Mouse
Connection
10
9
11
14
10
1.7
11
1.7
