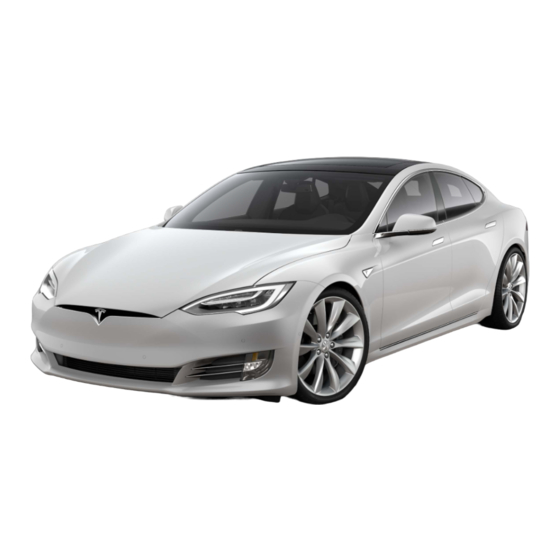

Tesla Model S 2019 Emergency Response Manual

This guide is intended only for use by trained and certified rescuers and first responders. It assumes that readers have a comprehensive
understanding of how safety systems work and have completed the appropriate training and certification required to safely handle rescue
sit uat ions. Therefore, this guide provides only the specific information required to understand and safely handle the fully elect ric Model S in
an emergency sit uat ion. It describes how to ident ify Model S and provides the locations and descript ions of its high voltage components,
airbags, inflation cylinders, seat belt pre-tensioners, and the high strength materials used in its body st ruct ure. This guide includes the high
voltage disabling procedure and any safety considerations specific t o Model S. Failure to follow recommended practices or procedures can
result in serious injury or death.
The high voltage battery is the main energy source. Model S does not have a traditional gasoline or diesel engine and therefore does not
have a fuel tank. The rear motor in dual mot or Model S comes in two types: regular and high performance. The front mot or also comes in
t wo t ypes: induct ion and permanent magnet . The images in this guide might not match the vehicle you are working on.

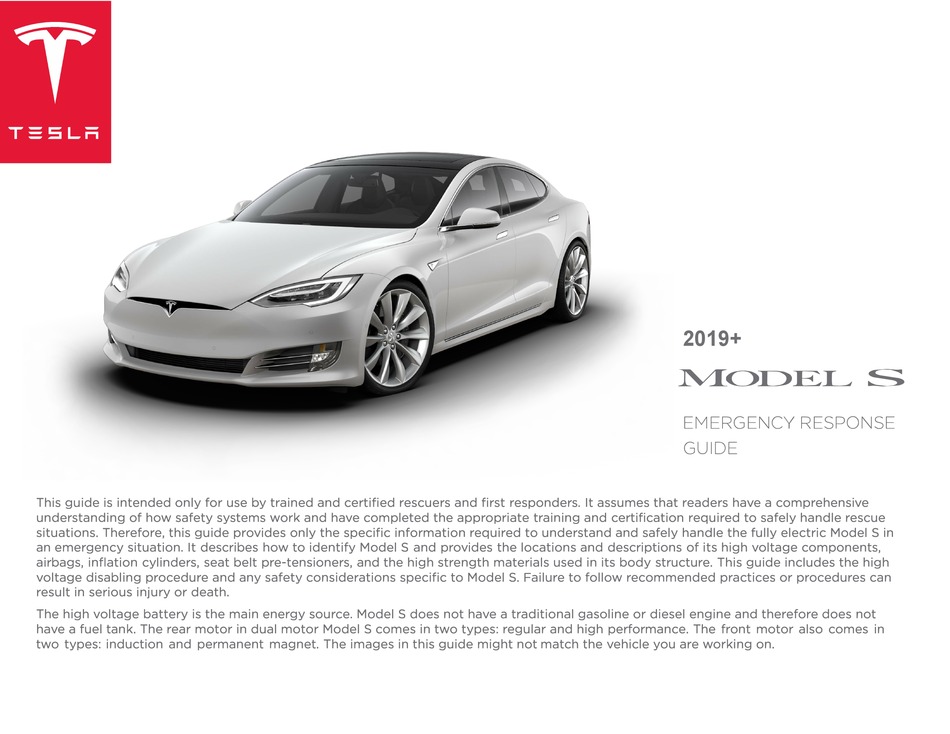

2019+
�C>r>E:�
EMERGENCY RESPONSE
GUIDE
s
