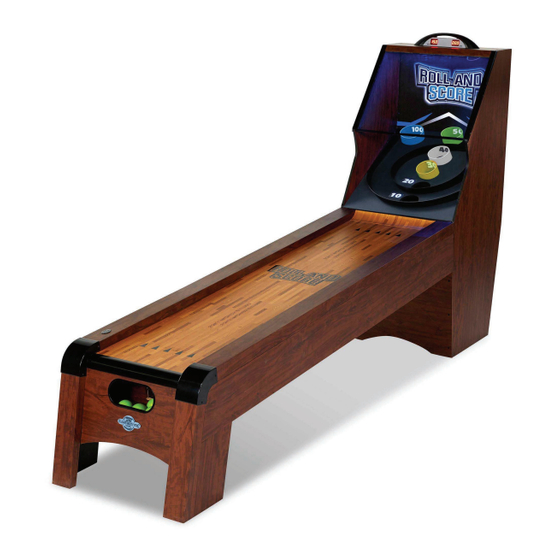

MODEL
ARC108_147P
SPREETAIL
Assembly Instructions
CAUTION - ELECTRICALLY OPERATED PRODUCT
NOT RECOMMENDED FOR CHILDREN UNDER 8 YEARS OF AGE.
AS WITH ALL ELECTRICAL PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED
DURING HANDLING AND USE TO PREVENT ELECTRIC SHOCK.
~ 50/60Hz 0.15A Max OUTPUT: 5.0V
INPUT: 100-240V
0.55A ，2.75W
Please mention model # ARC108_147P_V2
877-472-4296
www.wearespreetail.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the SPREETAIL ARC108 147P and is the answer not in the manual?

Questions and answers

Related Manuals for Lancaster SPREETAIL ARC108 147P

Summary of Contents for Lancaster SPREETAIL ARC108 147P

  • Page 1 MODEL ARC108_147P SPREETAIL Assembly Instructions CAUTION - ELECTRICALLY OPERATED PRODUCT NOT RECOMMENDED FOR CHILDREN UNDER 8 YEARS OF AGE. AS WITH ALL ELECTRICAL PRODUCTS, PRECAUTIONS SHOULD BE OBSERVED DURING HANDLING AND USE TO PREVENT ELECTRIC SHOCK. ~ 50/60Hz 0.15A Max OUTPUT: 5.0V INPUT: 100-240V 0.55A ，2.75W Please mention model # ARC108_147P_V2...
  • Page 2 Consumer Service Department. Please be aware of your product’s Limited Warranty for the return/refund policy from the store, We, at Lancaster, cannot handle the product which is out of product’s limited warranty since we only provide available parts. Thank you!

  • Page 3: Tools Required

    English TOOLS REQUIRED Phillips Screwdriver - Not Included Standard (Flat Head Screwdriver) - Not Included Allen Key - Included Power Tools: Set to Low Torque RECOMMENDED Electric Screwdrivers may be helpful during assembly; however, please set a low torque and use extreme caution. High Torque Over Tightened IMPORTANT NOTICE This product is intended for INDOOR use only.

  • Page 4: Parts Identifier

    English PARTS IDENTIFIER PART NUMBER FIG. NUMBER FOR FIG. 3 PART QUANTITY PART NAME End Apron FOR FIG. 20 FOR FIG. 3 FOR FIG. 3 FOR FIG. 12 Adapter Right Front Leg Left Front Leg Bottom Board FOR FIG. 13 FOR FIG.
  • Page 5 English PARTS IDENTIFIER FOR FIG. 21 FOR FIG. 19 FOR FIG. 10 FOR FIG. 21 Top Rail Trim strip - Left Back Board - C Back Board - D Corner FOR FIG. 10 FOR FIG. 21 FOR FIG. 7 Target Support Trim strip - Right Connecting Board Board...

  • Page 6: Before Assembly

    English PRE-INSTALLED PARTS FOR FIG. 14 FOR FIG. 3 FOR FIG. 1 Ball Return Target Control Switch Cover Sensor Wire FOR FIG. 1, 10 M6 Nut BEFORE ASSEMBLY BEFORE ASSEMBLY ANTES DE MONTAR Find a clean, level place to begin the assembly of your product. Verify that you have all listed parts as shown on the parts list pages.
  • Page 7 English ASSEMBLY FIG. 1 Pre-installed Note: Install the Control Switch (P4). Ensure it is fully in place before proceeding to the next step. Pre-installed ARC108_147P (Continued on the next page.) www.wearespreetail.com...
  • Page 8 English ASSEMBLY FIG. 2 FIG. 3 Note: Black laminate this side. Pre-installed ARC108_147P (Continued on the next page.) www.wearespreetail.com...
  • Page 9 English ASSEMBLY FIG. 4 BACK VIEW SIDE VIEW ARC108_147P (Continued on the next page.) www.wearespreetail.com...
  • Page 10 English ASSEMBLY FIG. 5 FIG. 6 ARC108_147P (Continued on the next page.) www.wearespreetail.com...
  • Page 11 English ASSEMBLY FIG. 7 ARC108_147P (Continued on the next page.) www.wearespreetail.com...
  • Page 12 English ASSEMBLY FIG. 8 FIG. 9 Note: Black side is facing down. Note: Press the Goal Box Board (29) to the position and fasten the screws. ARC108_147P (Continued on the next page.) www.wearespreetail.com...
  • Page 13 English ASSEMBLY FIG. 10 Pre-installed FIG. 11 ARC108_147P (Continued on the next page.) www.wearespreetail.com...
  • Page 14 English ASSEMBLY FIG. 12 Note: Black EVA side facing up. SIDE VIEW ARC108_147P (Continued on the next page.) www.wearespreetail.com...
  • Page 15 English ASSEMBLY FIG. 13 SIDE VIEW FIG. 14 Pre-installed Front BACK VIEW ARC108_147P (Continued on the next page.) www.wearespreetail.com...
  • Page 16 English ASSEMBLY FIG. 15 FIG. 16 BACK VIEW ARC108_147P (Continued on the next page.) www.wearespreetail.com...
  • Page 17 English ASSEMBLY FIG. 17 FIG. 18 ARC108_147P (Continued on the next page.) www.wearespreetail.com...
  • Page 18 English ASSEMBLY FIG. 19 Note: Connect Target Sensor Wire (6) and Control Switch (P4). FIG. 20 ARC108_147P (Continued on the next page.) www.wearespreetail.com...
  • Page 19 English ASSEMBLY FIG. 21 ELECTRONIC CONNECTIONS DIAGRAM ON/OFF/SELECT START ARC108_147P (Continued on the next page.) www.wearespreetail.com...

  • Page 20: Game Descriptions

    English GAME DESCRIPTIONS DC5V 550mA Insert the power plug. Press "ON/OFF/SELECT" to activate the scorer. The screen will show “1P 1P”; press the select button to switch between single-player and double-player mode. Single-player mode: Press the start button and the score screen will show “000 000” to start the single-player mode. For each round, the scores will be counted 9 times.
