Assembly Instructions

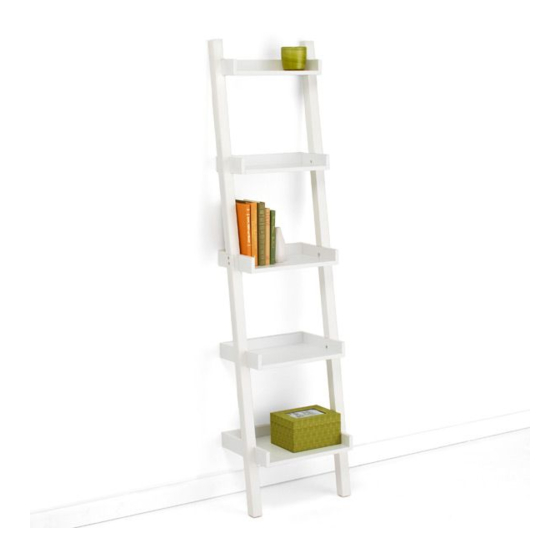

Linea Leaning Bookcase
Thank you for purchasing the Leaning Bookcase. The next two pages list all of the contents included in the box. Please take the time to
identify the hardware as well as the individual components of this product. As you unpack and prepare for assembly, place the contents
on a carpeted or padded area to protect them from damage.
Advertisement
Related Manuals for The Container Store Linea Leaning Bookcase
Summary of Contents for The Container Store Linea Leaning Bookcase

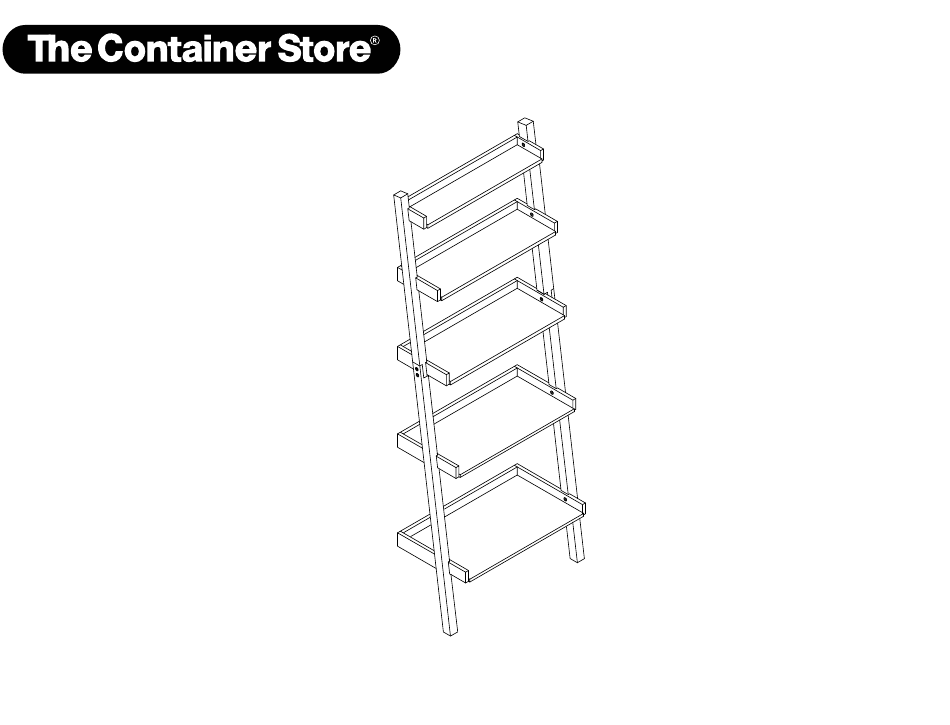

- Page 1 Assembly Instructions Linea Leaning Bookcase Thank you for purchasing the Leaning Bookcase. The next two pages list all of the contents included in the box. Please take the time to identify the hardware as well as the individual components of this product. As you unpack and prepare for assembly, place the contents...
- Page 2 Hardware WARNING: Severe injury may occur if furniture tips over. Never allow children to climb or play on this product. Place heavier items on lower shelves as far back as possible and never overload. Follow all instructions listed in this assembly guide and always use the anti-tip hardware to mount unit to a wall.
- Page 3 Item Description Quantity Right side upper leg Right side lower leg Left side upper leg Left side lower leg Top Shelf Second Shelf Third Shelf Fourth Shelf Bottom Shelf PARTS LIST PAGE 3 OF 10...
- Page 4 step 1. (H1) x 4 long dowel 1. Use two long dowels to assemble each leg. 2. Make sure the dowels are fully inserted. PAGE 4 OF 10...
- Page 5 step 2. (H2) x 4 (H3) x 1 short bolt binding screw (H3) (H4) x 1 (H5) x 4 (H6) x 2 long bolt short dowel allen wrench (H4) (H2) (H5) 1. Fasten Third Shelf [G] to the Leg Assembly [CD] using a long bolt and a binding screw. 2.
- Page 6 step 3. (H3) (H4) (H2) x 4 (H3) x 1 short bolt binding screw (H5) (H5) x 4 (H4) x 1 (H2) long bolt short dowel 1. Fasten right leg assembly [AB] to Third Shelf [G] using a long bolt and binding screw. 2.
- Page 7 step 4. (H9) x 2 (H10) x 8 support bracket panhead screw 1. Locate pilot holes on the backs of the legs. 2. Use panhead screws to attach support brackets. PAGE 7 OF 10...
- Page 8 step 5. If you have purchased multiple leaning bookcases or desks, use the mending plates to connect multiple units together. (H7) x 2 (H8) x 4 mending plate flathead screw 1. Locate pilot holes on the backs of the legs. 2.
- Page 9 step 6. This product must always be mounted to a wall. It is essential to use wall anchors appropriate to your wall type (e.g. plaster, drywall, etc). If you are unsure about your wall type or which mounting method you should use, consult a qualified professional. Mount to wood studs whenever possible.
- Page 10 50 pounds each 75 pounds each Do not exceed the recommended weight limits on the designated panels. Exceeding these limits could cause sagging, possibly resulting in failure of the panel or bodily injury. PAGE 10 OF 10...
