netPower 15FR
netPower 15FR

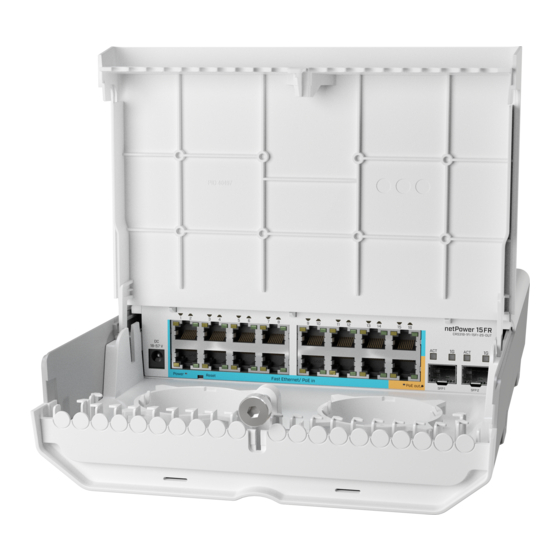

The NetPower is a weatherproof switch with the capability of using backup PoE from connected devices.
Quickstart
Please follow these quick steps to set up your device:
Open the bottom lid (see "
Connect all served devices to Ethernet ports.
Connect the device to the power source (see "
Open network connections on your PC.
Set the IP address of your computer to 192.168.88.4/24.
The Configuration has to be done through the web browser or WinBox configuration tool
Once connected to the network, open
password by default.
We recommend clicking the "Check for updates" button and updating your RouterOS software to the latest version to ensure the best
performance and stability. Must have an active Internet connection configured.
Set a secure password.
Expansion slots and ports
1.
DC power connector 18 – 57 V.
2.
LED indicating a power state of the device.
3.
Reset button.
4.
Fast Ethernet 100Mbit/s, 15 - Ethernet ports, accepting PoE In.
5.
Fast Ethernet 100Mbit/s, One - Ethernet port, delivering PoE out.
6.
LED indicator of PoE out Ethernet port.
7.
Two - 1G SFP ports.
8.
LED Indicating the activity of SFP port.
9.
LED Indicating the speed of SFP port.
Configuration
netPower 15FR#Bottom Lid
").
netPower 15FR#Powering
https://192.168.88.1
").
https://mt.lv/winbox
in your web browser to start configuration, user name: a
.
dmin
and there is no
Advertisement
Table of Contents
Related Manuals for MikroTik netPower 15FR
Summary of Contents for MikroTik netPower 15FR
- Page 1 The NetPower is a weatherproof switch with the capability of using backup PoE from connected devices. Quickstart Please follow these quick steps to set up your device: Open the bottom lid (see " netPower 15FR#Bottom Lid "). Connect all served devices to Ethernet ports. Connect the device to the power source (see "...
- Page 2 Connect the power cord to the adapter, and then plug the power cord into a power outlet. Power output The device supports passive PoE from one Ethernet marked in amber color. You can power Mikrotik devices which supports powering through Ethernet. The power delivered through the PoE port will depend on the incoming to the device.
- Page 3 Pull the cover towards. Lift to access Ethernet ports. Mounting The device can be mounted in several ways: pole, wall, or ceiling. The package also includes a drill hole template with detailed mounting instructions, to help you with the drill hole marking. The device has eight mounting points for versatility use zip ties or steel clamps for mounting on the pole.
- Page 4 When mounting outdoors, please ensure that any cable openings are directed downwards. We recommend using the POE injector and proper grounding with Cat6 shielded cable. Mounting points: There are eight mounting points on the back of this device. Choose the most relevant ones. Middle points are designed for mounting on the mast, there are curves on the case for slim fitment.
- Page 5 A – Always make sure to place the unit in an upwards position. B - It's recommended to use electrical tape to increase friction between materials. Mounting unit on the wall: Use included a template to mark spots for drilling holes. Align accordingly, it will depend on how the device will be mounted finally. Insert dowels if needed, depends on wall structure and material.
- Page 6 BG С настоящото Mikrotīkls SIA декларира, че този тип радиосъоръжение RouterBOARD е в съответствие с Директива 2014/30/ЕС. Цялостният текст на ЕС декларацията за съответствие може да се намери на следния интернет адрес: https://mikrotik.com/products CS Tímto Mikrotīkls SIA prohlašuje, že typ rádiového zařízení RouterBOARD je v souladu se směrnicí 2014/30/EU. Úplné znění EU prohlášení o shodě...
- Page 7 DE Hiermit erklärt Mikrotīkls SIA , dass der Funkanlagentyp RouterBOARD der Richtlinie 2014/30/EU entspricht. Der vollständige Text der EU- Konformitätserklärung ist unter der folgenden Internetadresse verfügbar: https://mikrotik.com/products EL Με την παρούσα ο/η Mikrotīkls SIA , δηλώνει ότι ο ραδιοεξοπλισμός RouterBOARD πληροί την οδηγία 2014/30/ΕΕ. Το πλήρες κείμενο της δήλωσης...
