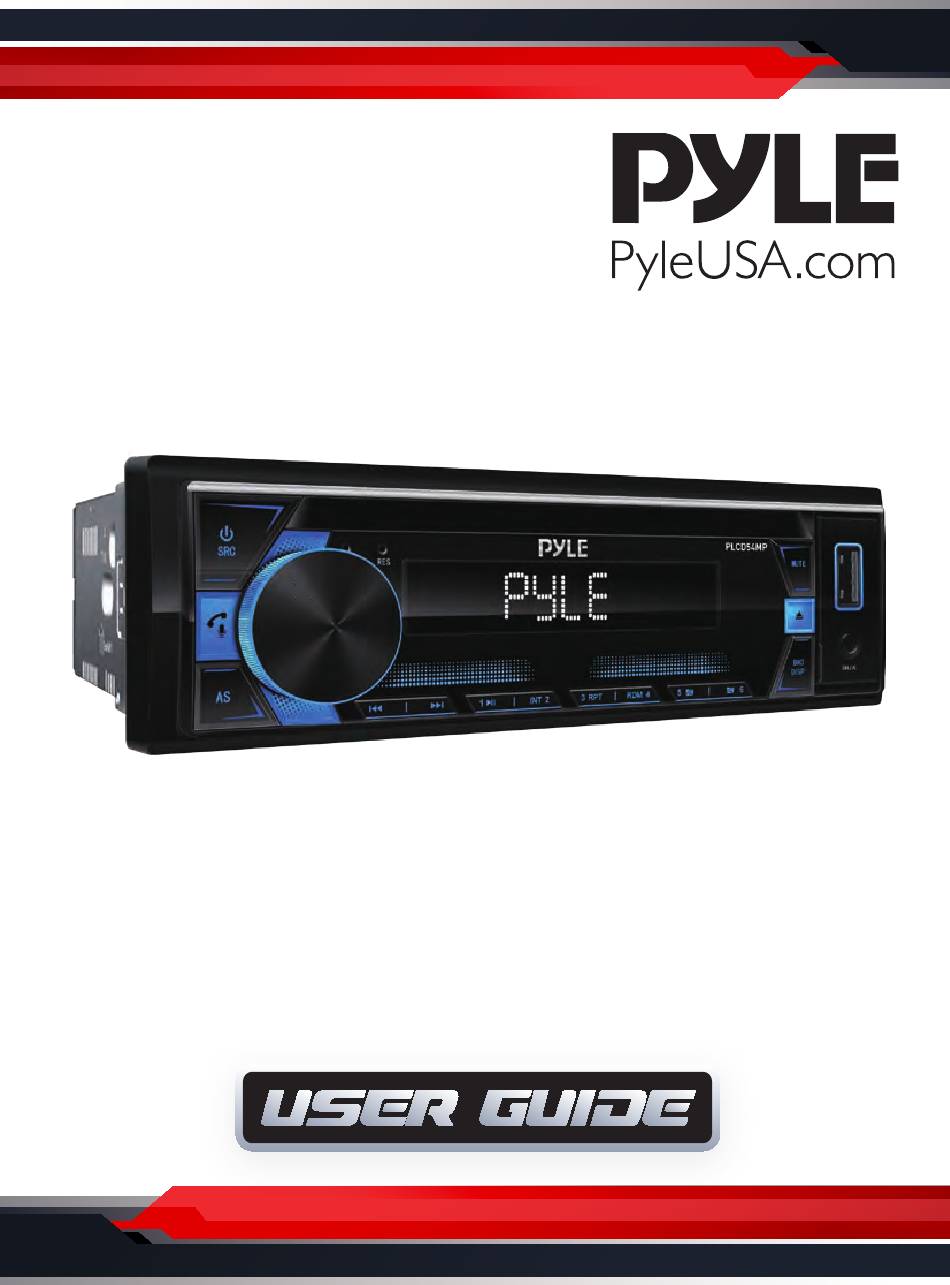

- Page 1 PLCD54MP CD/MP3 Stereo Receiver Power Amplifier AM/FM/CD/MP3/USB/AUX Stereo Receiver, Single DIN, 30 Preset Memory Stations, LCD Display with Remote Control (Black)
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION What’s in the Box DIMENSIONS OVERVIEW OF THE COMPONENTS GENERAL OPERATION Power On/O Removing The Front Panel Volume Up And Down Mute On/O Changing The Modes Setting The Audio/Menu Display Auxiliary Input Jack Reset RADIO OPERATION Switch Between Europe/USA/Asian/Russian Frequency Changing Bands To Store / Recall Preset Stations Manual Tuning... -
Page 3: Introduction
INTRODUCTION Do keep your original invoice and purchase receipt in a safe place in case of future service and warranty claims. You may also contact your appointed service agent for any future technicalsupport requirements. What’s in the Box: • Stereo Receiver •... - Page 4 WIRING CONNECTIONS COLOR FUNCTION Ignition Line Black Earth wire Blue ANT automatic Yellow Power supply Green Rear left horn (+) Green/Black Rear left horn (-) White Front left horn (+) White/Black Front left horn (-) Gray Front right horn (+) Grey/Black Front right horn (-) Rear right horn (+)
-
Page 5: Overview Of The Components
COMPONENTS OVERVIEW OF THE COMPONENTS 1. Power on/o , Mode (Source) 2. Volume knob, SEL (Push for Audio/Menu Setting) 3. AS (Auto Store Preset Station) 4. Mute 5. Preset #1, Play/Pause 6. Preset #2, Intro Scan 7. Preset #3, Repeat 8. -
Page 6: General Operation
GENERAL OPERATION Power On/O • Press any button to turn the unit on. /MODE button to turn the unit o . • Press and hold the Removing The Front Panel Press the RELEASE button to detach the front panel. Volume Up And Down Rotate the Volume knob to adjust the volume level. -
Page 7: Radio Operation
RADIO OPERATION Switch Befween Europe /USA/Asian/Russian frequency In radio mode, press the Volume button momentarily to choose the “AREA EU/ US/AS/RU" item, then rotate it to switch between EU(europe), US (USA), AS (Asian), RU(Russian) frequency. The system will change the frequency setting in about 3 seconds. -
Page 8: Usb Connection
USB Connection If you would like to playback les contained in a USB stick, please insert the stick into the USB port. The MP3/WMA and other music les will be played automatically. Note: The USB port of this car radio is also designed for charging for iPhone/ andriod mobile phone. -
Page 9: Folder/Track Navigation
Folder/Trock Navigotion • Press the button to select the previous or the next folder. Folder access is only available on devices with more than one folder. • Press and hold the buttons to jump 10 tracks backward or forward. It is required that over 10 tracks be available on the storage medium. Remote Control Name of buttons and location (Power ON/OFF) Button... -
Page 10: Wireless Bt Operation
Activate the BT on your device before you begin with the pairing process. 2. When your phone nds the car audio system, the “PYLE" name will be displayed on your phone screen. 3. Choose the “PYLE" from your mobile phone list to pair and connect with the car audio system. -
Page 11: App Operation
Scan the QR code to download the PYLE Android/IOS App. Android App IOS App Connect your smartphone to PLCD54MP through BT, then tap the APP and turn on it on your smartphone. Now you can control the audio and the RDS function (Optional) of PLCD54MP head unit by your smartphone. -
Page 12: Specification
SPECIFICATIONS Features: • AM/FM/CD/MP3/USB/AUX Stereo Receiver • Single DIN • LCD Display with Remote Control • CD/MP3 Stereo Receiver System • AM/FM Stereo Radio, 30 Station Memory • Wireless BT Audio Ability • USB Flash Readers • Aux (3.5mm) Input Connector Jack •... - Page 13 Technical Specs: • Remote Control Battery Operated, Requires (1) Coin-Type Battery • Battery Type: 3V Lithium Bat. 240mAh Capacity • Single DIN Universal Size Standard • Night illumination: RGB • MAX. Power: 4x75W (300 Watts) • PLL Electronic Tuning Radio Tuner •...
- Page 14 Questions? Issues? We are here to help! Phone: (1) 718-535-1800 Email: support@pyleusa.com...
