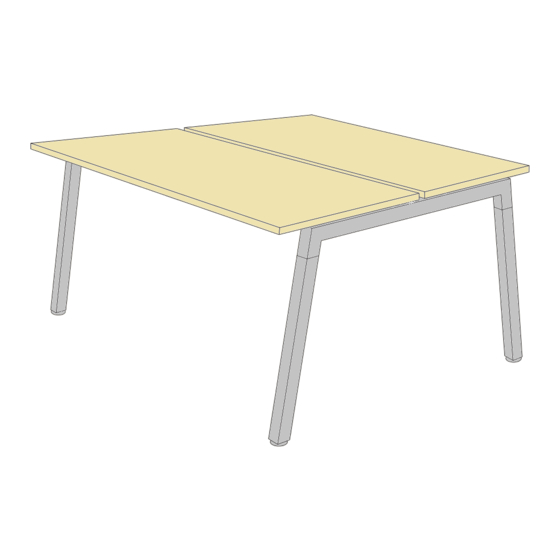

- Page 1 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Wood A Need help! 2P workstation Call us on 1300 527 665 Sizes: 1200x700, 1400x700, 1600x700, 1800x700 mm Tools Required: Power screwdriver; Allen key set (provided) 2 persons required for installation Page 1 of 7...
- Page 2 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Wood A Need help! 2P workstation Call us on 1300 527 665 Sizes: 1200x700, 1400x700, 1600x700, 1800x700 mm COMPONENTS Table top x2 Leg Quadro Wood A x2 Beam x2 Plastic bracket x8 SCREWS M8x20MM CSK x4 M8x20MM Socket head x4 M6x20MM Socket head x8 M6x30MM Socket head x8...
- Page 3 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Wood A Need help! 2P workstation Call us on 1300 527 665 Sizes: 1200x700, 1400x700, 1600x700, 1800x700 mm STEP 01 STEP 02 Plastic bracket holes facing to the other side. You will notice two colored Both legs must have the colour Insert the bottom of the legs as shown in the stickers located on each leg.
- Page 4 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Wood A Need help! 2P workstation Call us on 1300 527 665 Sizes: 1200x700, 1400x700, 1600x700, 1800x700 mm STEP 03 STEP 04 Using Allen Key provided, attach 4 plastic brackets per leg (D) Using Allen Key provided, attach M8x20MM Socket head (F)- (as per picture above) using M6x20MM (G) Socket head screw.
- Page 5 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Wood A Need help! 2P workstation Call us on 1300 527 665 Sizes: 1200x700, 1400x700, 1600x700, 1800x700 mm STEP 05 Adjust extendable beam (C) to desired length using markers and secure beam at that length using screws provided 2000 1900 1800...
- Page 6 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Wood A Need help! 2P workstation Call us on 1300 527 665 Sizes: 1200x700, 1400x700, 1600x700, 1800x700 mm STEP 06 TOP VIEW STEP 07 Attach beam (C) to legs (B) using nut insert in legs. Frame looks like this. Using Allen Key, attach beam (C) with Socket (E) See point attached Page 6 of 7...
- Page 7 www.jasonl.com.au ASSEMBLY INSTRUCTIONS Quadro Wood A Need help! 2P workstation Call us on 1300 527 665 Sizes: 1200x700, 1400x700, 1600x700, 1800x700 mm TABLE TOPS BOTTOM VIEW STEP 08 nut insert nut insert nut insert nut insert Place desktops ontop of frame. Nut inserts in top will align with plastic joiner brackets using M6x30MM (H) sockets attach tops to frame.
