How to set up the Edimax Wi-fi Module

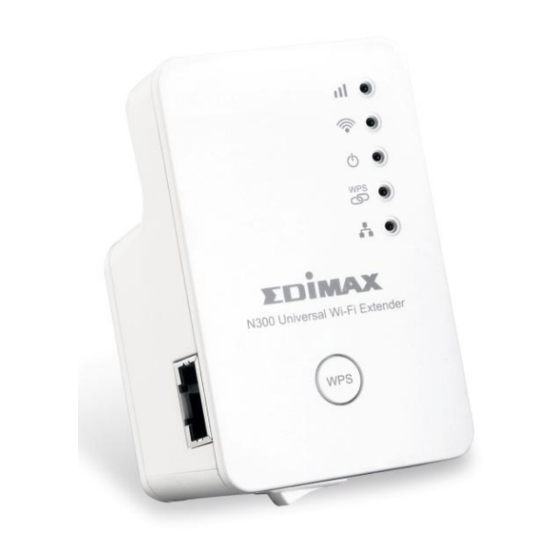

Edimax N300 Universal Wi-Fi Extender
Wi-Fi :
Instructions
Before you start:
•
If you haven't finished
•
Do not connect anything to the Edimax Ethernet port during setup as this will prevent the final step of setup.
•
Please have your wi-fi password at hand.
1) Plug the Edimax into a power socket with nothing attached to its Ethernet port. Press and hold the WPS
button for over 30 seconds until the power light starts to flash.
Instructions
All manuals and user guides at all-guides.com
setting up your SWS
please do this before setting up the Edimax
Edimax Wi-Fi Instructions
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the EW-7438RPn V2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Edimax EW-7438RPn V2

Summary of Contents for Edimax EW-7438RPn V2

  • Page 1 SWS please do this before setting up the Edimax • Do not connect anything to the Edimax Ethernet port during setup as this will prevent the final step of setup. • Please have your wi-fi password at hand.
  • Page 2 2) On a phone or PC go to your wi-fi network settings. Join the network called “EdimaxEXT.Setup XX”. If the option to join the Edimax network is not there then repeat step 1. 3) Open a web browser and type "edimaxext.setup/" into the address bar (not the search bar). This will take you to the setup page.
  • Page 3 Edimax Wi-Fi Instructions All manuals and user guides at all-guides.com 5) Select bridge mode, which is the middle option. Instructions...
  • Page 4 Edimax Wi-Fi Instructions All manuals and user guides at all-guides.com Instructions...
  • Page 5 Edimax Wi-Fi Instructions All manuals and user guides at all-guides.com 6) Select the router you want to connect to 7) Enter the password for your Wi-Fi network and press next. Remember the password will be case sensitive. Instructions...
  • Page 6 Edimax Wi-Fi Instructions All manuals and user guides at all-guides.com A connection test in now performed. Instructions...
  • Page 7 Edimax Wi-Fi Instructions All manuals and user guides at all-guides.com If you get the password wrong you will get this screen - DO NOT APPLY IT - go back and enter the password again. Instructions...
  • Page 8 Edimax Wi-Fi Instructions All manuals and user guides at all-guides.com 8) If the set up is successful it will look as below and have a green tick. You can then press apply. Instructions...
  • Page 9 Edimax Wi-Fi Instructions All manuals and user guides at all-guides.com You will see the congratulations screen. Instructions...
  • Page 10 Edimax Wi-Fi Instructions All manuals and user guides at all-guides.com Now you can disconnect the seneye web server from your router and connect it to up to the Edimax as shown in the bottom of the two images. Instructions...
  • Page 11 Edimax Wi-Fi Instructions All manuals and user guides at all-guides.com The full user manual for the Edimax EW-7438RPn V2 is available here. Instructions...
