AC450 Wireless LAN
11ac Band Extender
(IEEE 802.11a/an/ac)
User's Manual
Version: 1.0
(JUNE, 2014)
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EW-7288AC and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Edimax EW-7288AC

  • Page 1 AC450 Wireless LAN 11ac Band Extender (IEEE 802.11a/an/ac) User’s Manual Version: 1.0 (JUNE, 2014)
  • Page 2 COPYRIGHT Copyright ©2014 by this company. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of this company This company makes no representations or warranties, either expressed or implied,...
  • Page 3 Federal Communication Commission Interference Statement FCC Part 15 This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 4 FCC Caution This equipment must be installed and operated in accordance with provided instructions and a minimum 20 cm spacing must be provided between computer mounted antenna and person’s body (excluding extremities of hands, wrist and feet) during wireless modes of operation. This device complies with Part 15 of the FCC Rules.
  • Page 5 R&TTE Compliance Statement This equipment complies with all the requirements of DIRECTIVE 1999/5/EC OF THE EUROPEAN PARLIAMENT AND THE COUNCIL of March 9, 1999 on radio equipment and telecommunication terminal Equipment and the mutual recognition of their conformity (R&TTE). The R&TTE Directive repeals and replaces in the directive 98/13/EEC (Telecommunications Terminal Equipment and Satellite Earth Station Equipment) As of April 8, 2000.
  • Page 6: Table Of Contents

    CATALOG Chapter I: Product Information ..................7  1-1 Introduction and safety information ..............7  1-2 Safety Information ................... 8  1-3 System Requirements ..................10  1-4 Package Contents ................... 11  1-5 Familiar with your new 11ac Band Extender ..........12  Chapter II: System and Network Setup ................ 13  2-1 Build network connection ................
  • Page 7: Chapter I: Product Information

    Chapter I: Product Information    1‐1 Introduction and safety information  Thank you for purchasing this AC450 Wireless LAN 11ac Band Extender! This cost-effective product is the best choice for Digital Home / Home Office users, all network devices can share a single xDSL / cable modem internet connection at 5G 11ac high speed. With built-in 5GHz radio, this band extender supports IEEE 802.11a/an/ac wireless network capabilities, all wireless-enabled network devices (including PDA, Smart phone, Game console, Tablet, TV, Set Top...
  • Page 8: Safety Information

      1‐2 Safety Information In order to keep the safety of users and your properties, please follow the following safety instructions: 1. This band extender is designed for indoor use only; DO NOT place this band extender outdoor. 2. DO NOT put this band extender at or near hot or humid places, like kitchen or bathroom.
  • Page 9 9. If you smell something strange, or even see some smoke coming out from the product or power supply, remove the power supply or switch the electrical power off immediately, and call dealer of purchase for help.
  • Page 10: System Requirements

      1‐3 System Requirements  Internet connection, provided by xDSL or cable modem with a RJ-45 Ethernet port.  Network devices with wired or 5G wireless network interface card.  Web browser (Microsoft Internet Explorer, Google Chrome, Firefox or Safari web browser). ...
  • Page 11: Package Contents

      1‐4 Package Contents Before starting to use this 11ac band extender, please check if there’s anything missing in the package, and contact your dealer of purchase to claim for missing items: 11ac Band Extender (1 pcs) □ Quick Installation Guide (1 pcs) □...

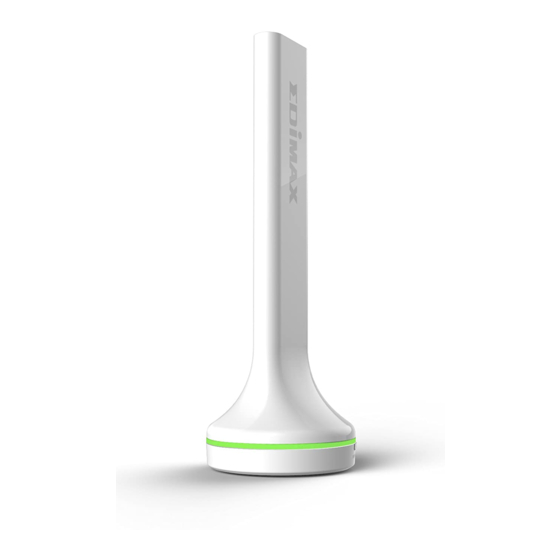

  • Page 12: Familiar With Your New 11Ac Band Extender

      1‐5 Familiar with your new 11ac Band Extender LED indication & Button Function    SMA for Antenna LED indicate Reset/WPS RJ-45 Ethernet Micro USB for power   Definition Function Definition Indication Blinking: Wireless LAN activity RJ-45 AP mode: LAN Port mode (transferring or receiving data) Ethernet Client mode: LAN Port (Orange) Micro USB For 11ac band extender power...
  • Page 13: Chapter Ii: System And Network Setup

    Chapter II: System and Network Setup  2‐1 Build network connection  Please follow the following instructions to setup 11ac band extender: 1. Please connect the USB cable (Micro USB) to the 11ac band extender. 2. Please connect the USB cable (Type-A) to the Router, TV or Set Top Box USB Port to getting the power supply, You can also use USB power adapter to the wall outlet, and then connect USB cable (Type-A) to the “USB Power Jack”...
  • Page 14: Network Setup

    2‐2 Network setup  Please use the web browser to configure the 11ac band extender. A computer with Ethernet or 5G wireless LAN connection to the band extender is required for this first time configuration. 1. Site survey by 5G wireless LAN adapter and use Windows Zero Configure, you can find 11ac Band Extender call the “Band Extender_5G_xxxx”, please select and connect.
  • Page 15 2. Open the web browser and input the IP address of 11ac Band Extender in address bar, and the following message should be shown. Default IP: 192.168.2.1 3. Please input user name and password, then click ‘OK’ to access web management interface of 11ac Band Extender.
  • Page 16 4. First time configure the 11ac Band Extender will auto into setup wizard, please click “Next”. 5. Select operation mode: you can select AP mode or Client mode by your application environment, then click “Next”. (for example: AP mode)    ...
  • Page 17 6. Wireless Basic Function Setting, click “Next”’ when you finish. 7. Wireless Security Setting, click “Finished”’ when you finish.
  • Page 18 8. Change Setting Successfully, please press “Reboot Now” to restart the 11ac Band Extender to make the changes take effect. Add the URL to your bookmark (my favorite list) Default: "Save" (we recommend you to save it for quick access to the Web setting page next time)
  • Page 19 9. When you see this message, the 11ac Band Extender will be ready with new settings within 20 seconds. 10. When you will re-configure the 11ac Band Extender, you can find your favorite list. Select “11AC Upgrader Web Control Panel” into Web management page.
  • Page 20 11. Please insert the 11ac band extender into an available LAN port of your traditional 2.4G WiFi router. (** Do not use force to plug or unplug the 11ac band extender.) Please use your computer to connect to any website on Internet, or start any Internet application and see if they’re working properly.
  • Page 21 12. Lock & Unlock method for 11ac band extender as left drawing shown, Please do not use force to plug, unplug or rotation the 11ac band extender.  ...
  • Page 22 NOTE: If you can’t see the web management interface, and you’re being prompted to input user name and password again, it means you didn’t input username and password correctly. Please retype user name and password again. If you’re certain about the user name and password you type are correct, please go to ‘4-2 Troubleshooting’...
  • Page 23: Chapter Iii Web Gui Configuration

    Chapter III WEB GUI configuration  3‐1 Setup Wizard  The setup wizard will guide you to configure 11ac Band Extender for first time. Please follow the setup wizard step by step. Welcome to Setup Wizard, please click “Next”. 3‐1‐1 Access Point mode  Select this mode is you have a traditional 2.4G single band WiFi router and you want to upgrade it to 11ac dualband wireless connection and share to multiple wireless client devices such like your mobile phone,...
  • Page 24 tablet, notebook..and so on. You can connect this device to RJ-45 Ethernet port of your existing Router. (In this mode, Ethernet port configure become to the LAN port.) Select operation mode: Please select “Access Point” mode, then click “Next”. Wireless Basic Function Setting: You can setting wireless band, wireless network name (SSID), channel width, data rate and channel number, then click “Next”’...
  • Page 25 Wireless Security Setting: You can setting encryption for your wireless security, then click “Finished”’ when you finish. Change Setting Successfully: Please press “Reboot Now” to restart the Band Extender to make the changes take effect.
  • Page 26 Add the URL to your bookmark (my favorite list) Default: "Save" (we recommend you to save it for quick access to the Web setting page next time) (Supports IE and Firefox only. Please add the access key to the bookmark manually if you use other browsers)
  • Page 27: Client Mode

    3‐1‐2 Client mode  Select this mode, can let your networking device have wireless capability; it will become your networking device's wireless network card. You can connect this device to RJ-45 Ethernet port of your existing Internet TV or Set Top Box or DVD player or Game Console device. (In this mode, Ethernet port configure become to the LAN port.) Select operation mode: Please select “Client”...
  • Page 28 Wireless Site Survey: Please click “Site Survey” button to find WiFi AP in your area.
  • Page 29 This page provides tool to scan the wireless network. If any Access Point or IBSS is found, you could choose to connect it manually. Please select a Root wireless AP and click “Next”. Root AP Wireless Security Key: Please setting encryption for the Root AP just you selected, then click “Connect”’...
  • Page 30 Connect Successfully: Please press “Reboot Now” to restart the Band Extender to make the changes take effect. Add the URL to your bookmark (my favorite list) Default: "Save" (we recommend you to save it for quick access to the Web setting page next time) (Supports IE and Firefox only.
  • Page 31: Advanced Setup

    3‐2 Advanced Setup  This page allows you setting Password and Firmware upgrade to new version. Please note: do not power off the device during the Firmware upgrade because it may crash the system.
  • Page 32 Password Settings: You can change the User Name and Password required while logging into the Band Extender's web-based management system. By default, the password is 1234. So please assign a password to the Administrator as soon as possible, and store it in a safe place. Passwords can contain 1 to 30 alphanumeric characters, and are case sensitive.
  • Page 33: Wps Setup

    NOTE: Never interrupt the upgrade procedure by closing the web browser or physically disconnect your computer from Band Extender. If the firmware you uploaded is corrupt, the firmware upgrade will fail, and you may have to return this product to the dealer of purchase to ask for help.
  • Page 34: Status

    3‐4 Status  The Band Extender's status information provides the following information about your Band Extender: Hardware/Firmware version, and its current operating mode.
  • Page 35 Device Status: View the current setting status of this device.
  • Page 36: Chapter Iv: Appendix

    Chapter IV: Appendix  4‐1 Hardware Specification  CPU: REALTEK RTL8881AM RF: REALTEK RTL8881AM Flash: 2MB SDRAM RAM: 8MB (CPU inside) LAN Port: 10/100M Port x 1 Antenna: External Dipole Antenna x 1 (5G) Power: DC 5V/0.5A USB port power or 5V/0.6A Switching Power Adapter Dimension: 60 (L) x 50 (W) x 23 (D) mm (without ANT) Temperature: Operating: 0~40C Storage: -20~60C Humidity: Operating: 10~90% (Non-Condensing)
  • Page 37: Troubleshooting

    4‐2 Troubleshooting  If you found the device is working improperly or stop responding to you, don’t panic! Before you contact your dealer of purchase for help, please read this troubleshooting first. Some problems can be solved by you within very short time! Scenario Solution Device is not...
  • Page 38 and A/C power adapter from utility power (make sure it’s safe before you’re doing this!), and call your dealer of purchase for help.
  • Page 39: Glossary

    4‐3 Glossary  DHCP: Dynamic Host Configuration Protocol. This protocol automatically gives every computer on your home network an IP address. DNS Server IP Address: DNS stands for Domain Name System, which allows Internet servers to have a domain name (such as www.Broadbandrouter.com) and one or more IP addresses (such as 192.34.45.8).
  • Page 40 that correspond to 1’s in the network mask become part of the IP network address, and the remaining bits correspond to the host ID. For example, if the IP address for a device is, in its binary form, 11011001.10110000.10010000.00000111, and if its network mask is, 11111111.11111111.11110000.00000000 It means the device’s network address is 11011001.10110000.10010000.00000000, and its host ID is,...
  • Page 41 SNMP Trap HTTP PPTP 1723 PC Anywhere TCP 5631 PC Anywhere UDP 5632 Protocol: A protocol is a set of rules for interaction agreed upon between multiple parties so that when they interface with each other based on such a protocol, the interpretation of their behavior is well defined and can be made objectively, without confusion or misunderstanding.
