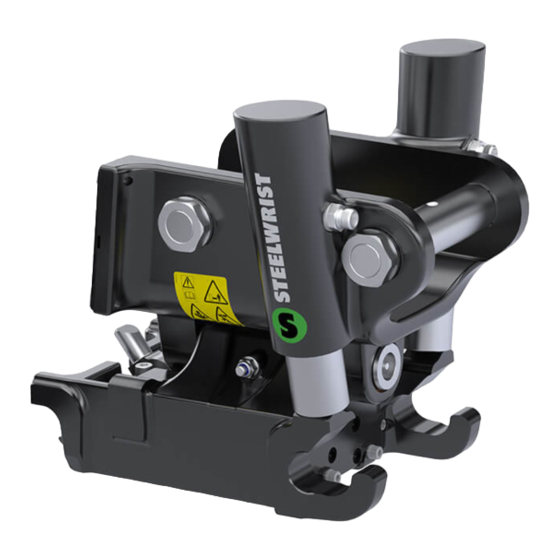

S30 Mechanical quick coupler
Warning!
From a safety point of view, the quick
coupler with its locking function is a
particularly important part of Rototilt®. A
fault in the system's function can cause
costly periods of downtime, and in the
worst case scenario, serious personal
injury. Follow the instructions carefully and
note the warnings given in this document.
If there is a problem or you discover a fault
with the quick coupler's locking function,
contact your dealership.
Important! Check that the quick coupler
attachment mount works before use, by
activating the lock function.
•
Important. Do not couple to a base machine
larger than specified.
•
When working at or around the quick coupler,
make sure that the machine is switched off and
that no unauthorized person is in the machine
or at the quick coupler (e.g. during service/
maintenance)
•
During service/maintenance work on the quick
coupler with mechanical locking, the locking
mechanism must ALWAYS be in the locked
position, otherwise there will be a high risk of
crush injury.

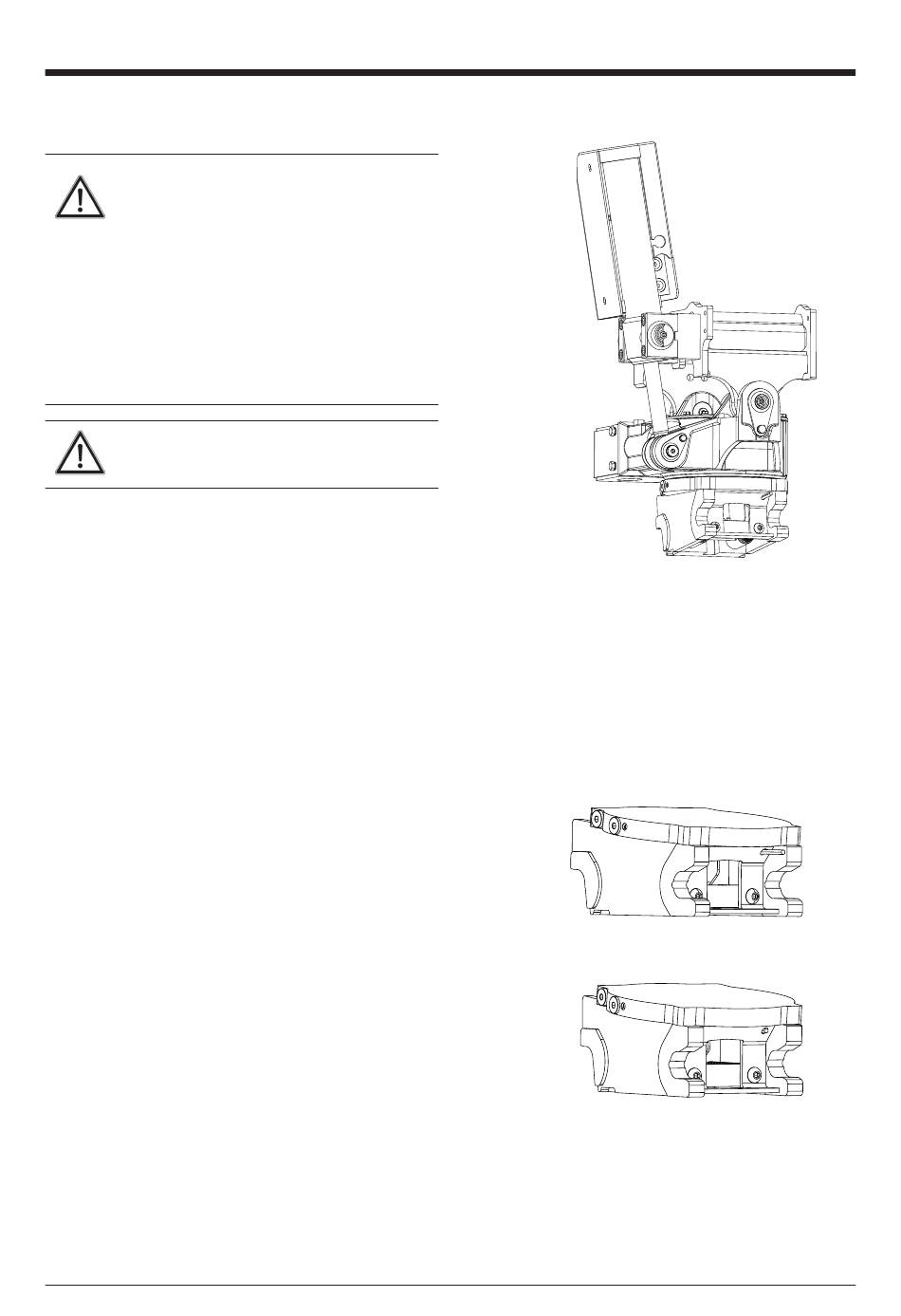

The quick coupler has an indicator rod which shows
whether the quick coupler locking function is open
(fig 2) or closed (fig 3).
2200144
_5242
2015 08 19
English
Fig 1
Fig 2
Fig 3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ROTOTILT S30
Summary of Contents for ROTOTILT S30
- Page 1 Warning! From a safety point of view, the quick coupler with its locking function is a particularly important part of Rototilt®. A fault in the system's function can cause costly periods of downtime, and in the worst case scenario, serious personal injury.
- Page 2 Operation Opening the quick coupler lock To open/clamp the lock, thread the handle onto the lever of the locking mechanism and push the lever down until it clicks into place, see fig 4. When the lock is clamped the indicator rod remains visible (fig 2) and the quick coupling lock is ready to be coupled to the implement concerned.
- Page 3 See also the section on handling the control system. The indicator rod is visible from the driver's cab only if the quick coupler attachment is turned in the digging direction. Warning! Never connect Rototilt® any other way than the one prescribed. Indicator rod Locking wedges...
- Page 4 See Operating Rototilt® Fig 8 Lubrication For lubrication of the rotor seals, see the lubrication plan section. The S30 quick coupler locking device should be lubricated every 40 hours or as necessary. See fig 9. Fig 9 2200144 _5242 2015 08 19...
- Page 5 Rototilt® model RT10 S30/150 Quick coupler S30/180 Max base 2 tons machine weight 6° The quick coupler attachment has an angular displacement of 6 against the implement to be ° connected under Rototilt® (Fig 6). 2200144 _5242 2015 08 19 English...
