Summary of Contents for ROTOTILT G400B

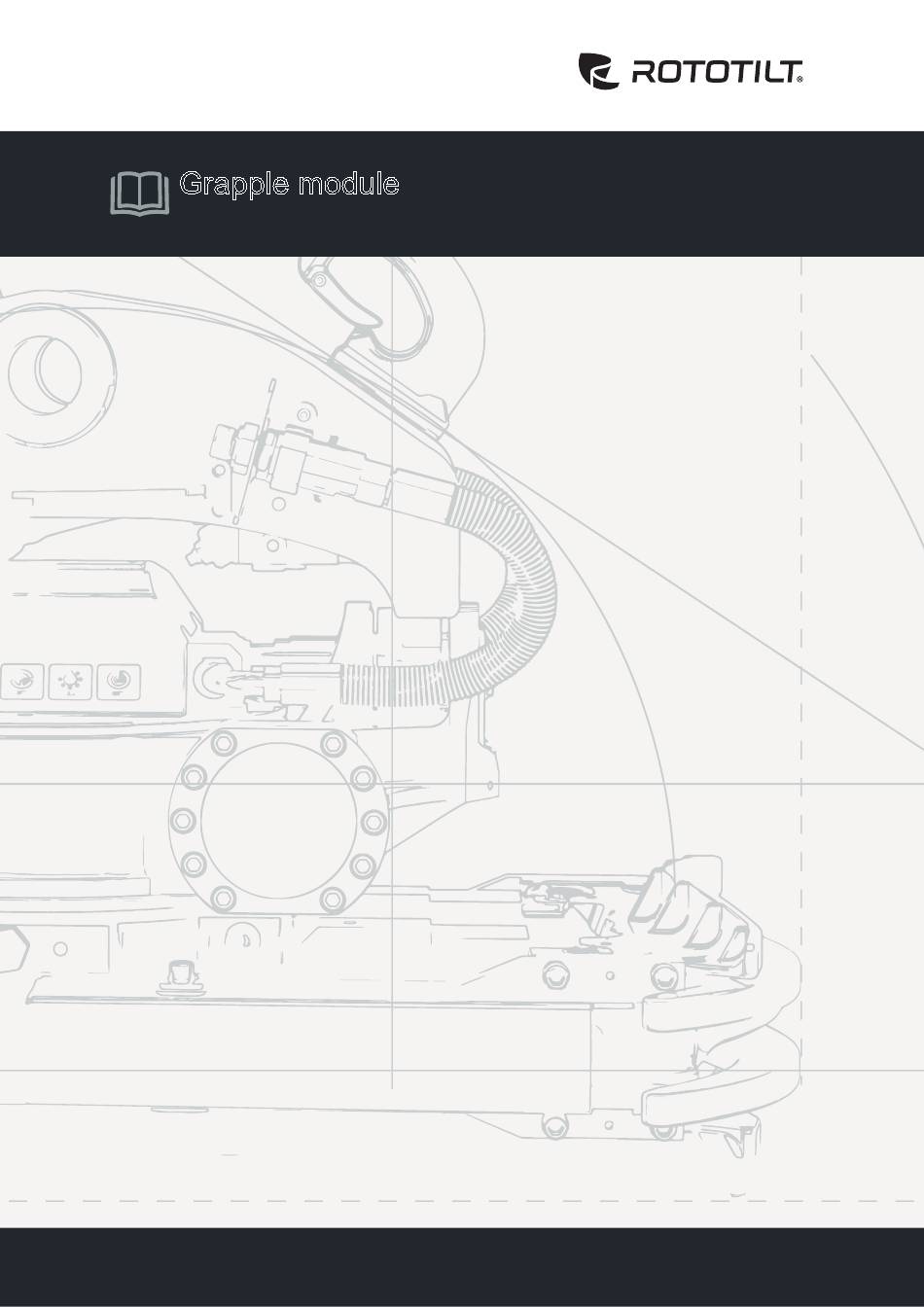

- Page 1 Grapple module English Instructions for use translated from the original Swedish 2200004_7225 2018 04 20 |...
- Page 2 SS-EN ISO 12100:2010, SS-EN ISO 13849-1:2016, as well as applicable parts of SS-EN 474-1:2006+A5:2018 and SS-EN 474-5:2006+A3:2013. Qualified to compile the technical documentation in accordance with annex 7A: Niklas Bjuhr VP Engineering, Rototilt Group AB Place and date: Vindeln, Sweden Name and signature of authorized person: Anders Jonsson...
-
Page 3: Document Structure
The manufacturer reserves the right to implement improvements at any time without altering the basic These instructions for use are divided into chapters. function of the model, with the aim of further Rototilt ® The Safety Instructions section contains information development important for preventing the risk of personal injuries. -
Page 4: Safety Instructions
Observe the safety instructions contained in this publication in order to protect Rototilt and to prevent ® personal injury. Read and note all warning decals on Rototilt ® The warning decals have a yellow background with black text. Do not permit untrained individuals to handle, repair or perform maintenance on Rototilt ®... -
Page 5: Before Use
Grapple module IMPORTANT! The grapple module is only intended for installation on Rototilt units from Rototilt ® Group AB. Before use • Before use, check that no-one is within the base machine’s risk area. Increase the risk area when handling long objects with the grapple. - Page 6 Check that the grapple module does not interfere with buckets or other tools intended for use beneath the Rototilt . Specific requirements for attachment ® systems are shown below. IMPORTANT! Make sure any external supports do not collide with the grapple module.
-
Page 7: During Use
® weight parameters. The values specified in the base machine lifting table must be reduced by the weight of the Rototilt ® • Exercise caution when handling long objects with regard to the forces of inertia and the extended risk area. -
Page 8: After Use
WARNING! Do not manually assist hydraulic valves. Risk of personal injury. Only use Rototilt spare parts. Rototilt Group AB will ® accept no liability for the product if other spare parts are used. 2018 04 20... - Page 9 Description General The grapple module is a hydraulically driven tool intended for installation and use on Rototilt units ® from Rototilt Group AB. Tools connected below a Rototilt unit and the ® grapple module are assumed to be of a type normally used for work with the base machine.
-
Page 10: Information Plate
Grapple module See fig. A The grapple module comprises: 1. Chassis. 2. Grapple arm, single. 3. Grapple arm, double. 4. Grapple cylinders. 5. Cylinder protection. 6. Outlet, extra function*. 7. Pin. Information plate. See Fig. B; for location, see Fig. A, position 9 Type Type Serial No... - Page 11 Rototilt ® equipped with. Grapple Grapple Extra function (*does not apply to G400B and RG series) Extra Extra It is possible to connect an extra function on grapple Figure 1 modules G600B, G800B, G850B, G910 and G1060.
- Page 12 Closes the “grapple open” function An extra function can be connected on model G400B, if a valve block with the ability to close the “grapple open channel” is installed. To connect a hydraulic tool to the extra function, do as follows: 1.
- Page 13 Run the grapple arms out to the open position and then switch off the base machine. Disconnect the hydraulic hoses between Bolts the base machine and the Rototilt ® Rear shank lock 2. Removes the four attachment bolts from the grapple frame. Allow the bolts to remain.
- Page 14 Grapple module installation Model Tightening torque G400B 130 Nm Perform installation in reverse order. G600B,RG600 330 Nm G800B, RG800 330 Nm See tightening torque table. G850B, RG850 330 Nm G910, RG900 600 Nm G1060, RG1050 600 Nm Connection In order for the grapple module to function correctly, Danger! attachment must take place as illustrated.
- Page 15 1. Undo the nuts that secure the pins to the grapple module. 2. Move the pins and fit the nuts. For other information regarding extra functions and other Rototilt functions, see the Instructions for use ® for Rototilt ®...
-
Page 16: Maintenance
Always provide the grapple module a model and manufacturing number as noted on the information plate. Only use original spare parts from Rototilt Group AB. Rototilt Group AB will accept no liability for the product if other spare parts are used. Daily Checks •... - Page 17 Diagrams Hydraulics diagram G400B Right Left (Close) (Open) Hydraulics diagram G400B with hydraulic manifold for closing the grapple open channel. Extra Extra (Close) (Open) 2018 04 20 2200004 _7225 English...
- Page 18 Hydraulics diagram G600B, G800B, G850B, G910, G1060 Right Left (Open) (Close) Extra Extra 2018 04 20 2200004 _7225 English...
- Page 19 Hydraulics diagram RG600 2018 04 20 2200004 _7225 English...
-
Page 20: Hydraulics Diagram
Hydraulics diagram RG800, RG850, RG900, RG1050 2018 04 20 2200004 _7225 English...
