Quick coupler
Overview
The products described in the document are original tools for Rototilt
equipment and options.
See illustrations and lists below.
1
2
3
4
5
6
7
8
9
10
11
12
13
1
2
3
© Rototilt Group AB
4
5
6
. The overviews show standard
®
Couplers S30, S40, S45, S50, S60, S70,
S80, MH10, MH18 and
Hydrema with hydraulic lock function.

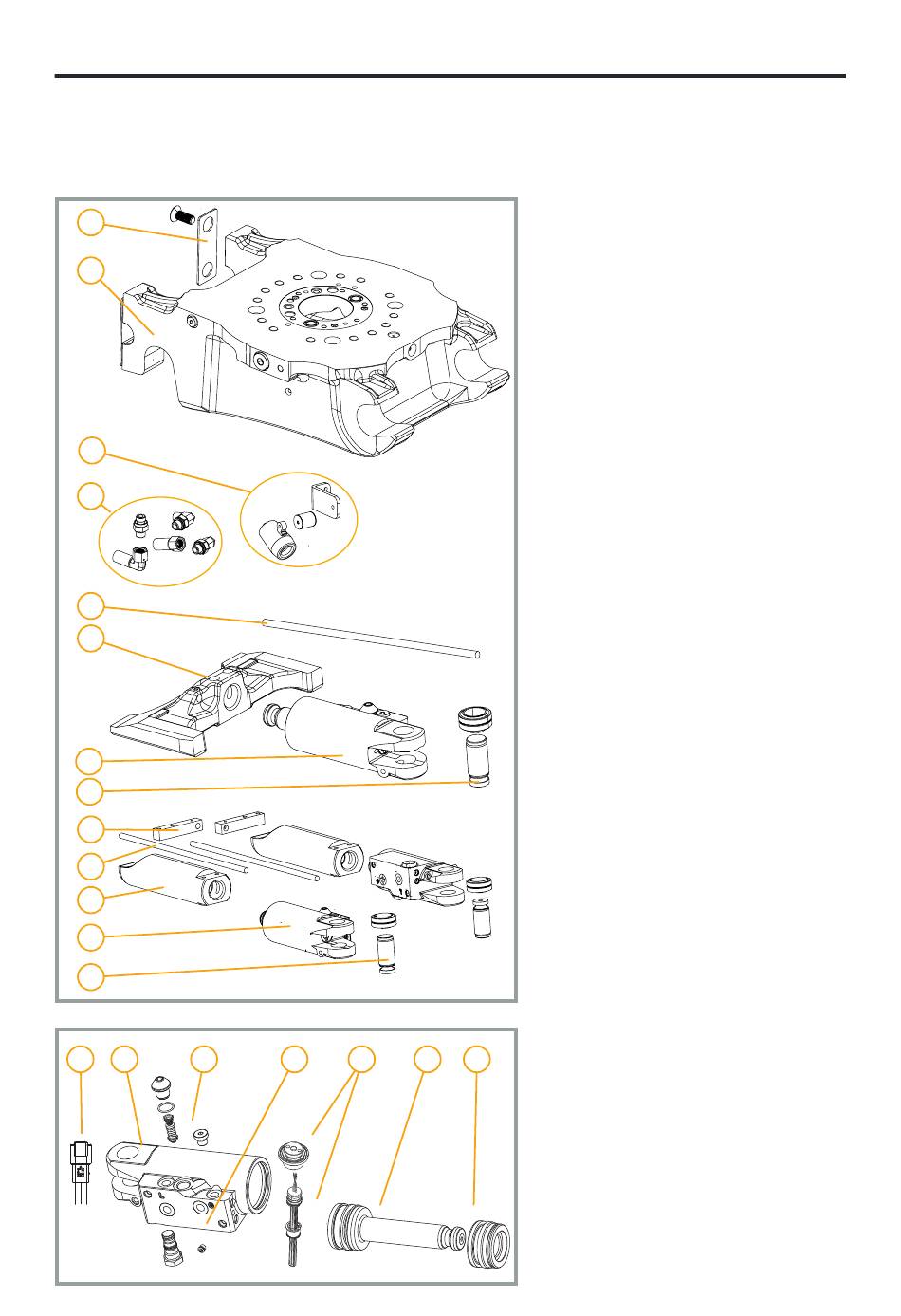

Quick coupler, components
1. Protective cover
2. Quick coupler
3. Lamp with holder
4. Hydraulic hose and adapter
Single locking wedge
5. Indicator rod
6. Locking wedge
7. Lock cylinder with sensor
8. Pin and bearing
Twin locking cylinders
9. Indicator holders, 2 pcs
10. Indicator rods, 2 pcs
11. Locking pistons, 2 pcs
12. Lock cylinders, 2 pcs
13. Pin and bearing, 2 pcs
Lock cylinder, components
1. Connector
7
2. Lock cylinder
3. Pressure relief valve
4. Check valve
5. Sleeve & Sensor
6. Piston
7. Top nut
2200006_
EN
_7434
2018-08-31
