  • Page 1 2531DM-0022 TTulpe Outdoor HD-6 Instructions for use, installation and maintenance...
  • Page 2: Table Of Contents

    Operating instructions Faults Maintenance Technical data and characteristics Technical specifications Declaration of conformity 10. Gas conversion instruction 11. Certificate of warranty – TTulpe ® 12. Notes Box contents TTulpe HD-6 water heater Gaspressure regulator with gashose 2 D-Cell (LR 20) Batteries...
  • Page 3: Introduction

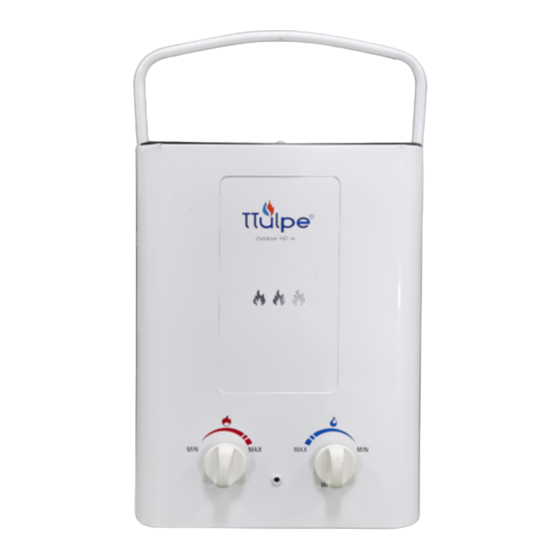

    The gas water heater model you have chosen can only be used outdoors and is a 6 litres per minute open flue model. The Outdoor HD-6 is a portable tankless water heater. The temperature is controlled manually with the gas- and waterflow knobs. Automatic safety controls are fitted to the water heater to provide safe and efficient operation.
  • Page 4: Warnings

    Use a professional and knowledgeable installer. Installation requirements may vary trom country to country. TTulpe or its resellers assume no liability for improper use or installation. Important safety information read all instructions before using Be sure to read and understand the entire lnstructions tor use, installation and maintenance Manual before attempting to install or operate this water heater.
  • Page 5 2531DM-0022 Keep flammable products: 1. Far away from heater 2. In approved containers 3. Tightly closed 4. Out of children‘s reach Water heater has a main burner flame. The main burner flame: 1. Can come on at any time and 2.
  • Page 6 TTulpe cares about the environment, our water heaters do not contain any hazardous materials and comply with the limits as set by RoHS Directive (EU) 2015/863 amending Annex II to...
  • Page 7: General Instructions

    Any questions regarding the operation, maintenance service or warranty of this water heater should be directed to TTulpe B.V. or one of its International Distributors directly. Netherlands/France/Germany /UK/Belgium: TTulpe B.V., +49(0)39292678219, info@ttulpe.com.
  • Page 8: Operating Instructions

    4. Operating instructions 1. If using a standard garden hose, attach your water supply to the fitting marked ‘Water Input’ using adapters as appropriate. Use Sealant tape or other approved sealing method on the threads for a secure, water tight fit. Check to make sure the screen inside the water inlet is in place and clean.
  • Page 9 2531DM-0022 1. Turn on incoming water supply. Ensure that you have adequate water pressure between 1.0-5.5 bar. 2. Turn your showerhead to its “off” position. 3. Turn the gas valve on the cylinder all the way open. 4. IF THE SMELL OF GAS IS DETECTED, TURN OFF THE GAS VALVE IMMEDIATELY!! 5.
  • Page 10: Faults

    5. Faults Portable tankless water heater will not start – there are no audible clicks at startup: a. The first thing to check is to ensure that the incoming water on the “right” side of the portable tankless water heater. If the incoming and outgoing are reversed, the portable tankless water heater will not work.
  • Page 11 TO BE TAKEN DOWN AND STORED IN A WARM DRY PLACE AFTER EVERY USE. THIS MANUAL AND ALL TTulpe CONTENT IS SUBJECT TO CHANGE WITHOUT NOTICE. ® For technical support, please contact: TTulpe B.V. I Web: www.ttulpe.com, E-mail: info@ttulpe.com Phone: 0031226 428877 Address: Wester Boekelweg 21a 1 1718 MJ I Hoogwoud, The Netherlands.
  • Page 12: Maintenance

    6. Maintenance Opening the casing To open the water heater casing: 1. Undo the screws at the top and bottom 2. Take the casing off carefully. 3. Disconnect the on/off switch connector. Close the gas cock upstream before carrying out any operation inside the water heater.
  • Page 13 2531DM-0022...
  • Page 14: Technical Data And Characteristics

    7. Technical data and Carry Handle characteristics Heat Exchange bracket 6 Liter back panel set Feedback pin/heat sensor Tilt switch bracket Tilt switch ECU bracket ECU/Igniter On/Off switch Solenoid Thermostat...
  • Page 15 2531DM-0022 Flue grid Heat exchanger Ignition pin Water cooled low NOx burner ODS Gaspipe Nozzle Water inlet pipe set Valve bracket 6L gas/water interlock valve set Battery box Microswitch Drain valve/pressure relieve valve...
  • Page 16: Technical Specifications

    8. Technical specifications Model/No. Unit TTulpe Outdoor HD-6 Pincode 2531DM-0022 Type A11AS Heatinput Qn (Hi) Min. Heatinput Qmin(Hi) Nomina/ usefu/ output Pn (Hi) 10,3 Min useful output Pmin Nomina/ heat efficiency >84 Gas data Gas Category I3P(37) I3P(50) Model Outdoor HD-6 P37...
  • Page 17: Declaration Of Conformity

    2531DM-0022 9. Declaration of conformity...
  • Page 18: Gas Conversion Instruction

    10. Gas conversion instruction Warning: It is not possible to convert the water heater to another type of gas or another gas pressure.
  • Page 19: Certificate Of Warranty - Ttulpe

    • The consumer must inform TTulpe of a lack of conformity within a period of les than two months after discovering it. The warranty does not cover incidents caused by: Freezing, any damage due to frost out of warranty.
  • Page 20 TTulpe guarantees appliances that it supplies in accordance with European ® directive 1999/44/ECguaranteeing the sale of Consumer Goods for a period of two years against a lack of conformity appearing after delivery of the product. Unless proven otherwise, it will be assumed that any lack of conformity that appears in the six months from the delivery did not exist when the goods were delivered.
  • Page 21 NOTE: It is essential to complete all of the information requested in the Certificate of Warranty. The validation of the warranty must be done immediately, by filling in the date and sending it immediately to TTulpe B.V. All of our OFFICIAL Technical Departments have the corresponding accreditation from TTulpe .
  • Page 22: Notes

    12. Notes...
  • Page 23 2531DM-0022...
  • Page 24 TTulpe ® Wester Boekelweg 21a 1718 MJ Hoogwoud Tel: 0031 (0)226 428877 Netherlands Email: info@ttulpe.com...
