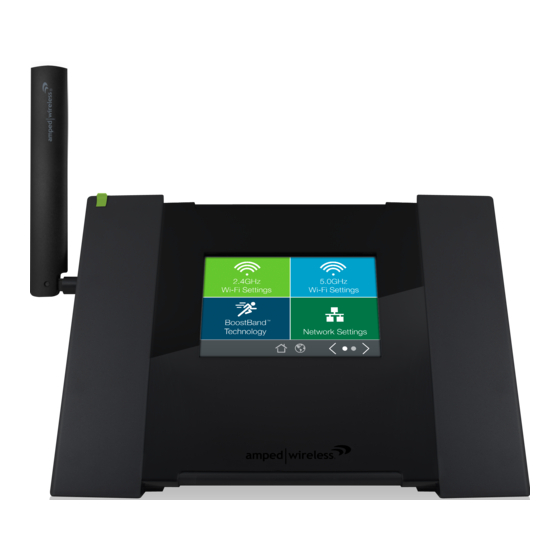

Amped Wireless HIGHPOWER TAPEX3 User Manual

Touch screen ac1750 wi-fi range extender
Hide thumbs Also See for HIGHPOWER TAPEX3:
Table of Contents

Advertisement

Quick Links

Download this manual
User's Guide
TAP-EX3
HIGHPOWER
TM
TOUCH SCREEN
AC1750 WI-FI
RANGE EXTENDER
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HIGHPOWER TAPEX3 and is the answer not in the manual?

Questions and answers

Related Manuals for Amped Wireless HIGHPOWER TAPEX3

Summary of Contents for Amped Wireless HIGHPOWER TAPEX3

  • Page 1 User’s Guide TAP-EX3 HIGHPOWER TOUCH SCREEN AC1750 WI-FI RANGE EXTENDER ®...

  • Page 2: Table Of Contents

    TAP-EX3 USER’S GUIDE CONTENTS INTRODUCTION ..............3 User Access ................27 GETTING STARTED ..............4 5GHz WI-FI SETTINGS (TOUCH SCREEN) ........ 28 Package Contents ..............4 Home Network Settings ............28 SETUP GUIDE (TOUCH SCREEN) ..........5 Extended Network Settings ............. 29 Find a Setup Location ..............
  • Page 3 TAP-EX3 USER’S GUIDE ACCESSING THE WEB MENU ..........51 Access Schedule ..............80 SETUP GUIDE (WEB MENU) ..........52 Advanced Settings ..............82 Find a Setup Location .............. 52 BOOSTBAND™ TECHNOLOGY (WEB MENU) ......84 NETWORK SETTINGS (WEB MENU) ........85 Open your Web Browser to Access the Setup Wizard .....

  • Page 4: Introduction

    USER’S GUIDE INTRODUCTION Thank you for purchasing this Amped Wireless product. At Amped Wireless we strive to provide you with the highest quality products through innovation and advanced technology. We pride ourselves on delivering products that outperform the competition and go beyond your expectations. If you have any questions please feel free to contact us.

  • Page 5: Getting Started

    TAP-EX3 USER’S GUIDE GETTING STARTED Package Contents Check to make sure you have all the contents within your package:  High Power Touch Screen AC1750 Wi-Fi Range Extender  Stylus  Detachable High Gain Antenna  Power Adapter  Setup Guide ...

  • Page 6: Setup Guide (Touch Screen)

    TAP-EX3 USER’S GUIDE Product Description 1. LCD Screen: 4” LCD touch screen. Displays the user interface for configuring the Router as well as the status. 2. Stylus: Input tool that assists in navigating the LCD touch screen Menu. 3. Antenna Connector (ANT): RJ-SMA antenna connector. Compatible with all antennas that have RP-SMA connectors.

  • Page 7: Find A Setup Location

    TAP-EX3 USER’S GUIDE SETUP GUIDE (TOUCH SCREEN) Find a Setup Location The location of where you install the Range Extender is important to how it will function. The optimal setup location should be somewhere no more than halfway between your Wi-Fi router and your Wi-Fi dead zone.
  • Page 8 Port and plug it into an available power outlet. (On the right panel, make sure the power switch is on.) The Amped Wireless logo will appear as the unit boots up, then the Dashboard screen will appear. This process may take up to 2 minutes.

  • Page 9: Navigating The Touch Screen Menu

    TAP-EX3 USER’S GUIDE Navigating the Touch Screen Menu Before we begin, here are a few tips on how to navigate the Touch Screen Menu: Language Selection: Tap the Globe icon, found on the bottom of the Settings screen, to change the language of the menu. Back Arrow: Tap the Left Arrow, found on the upper left corner of many screens, to navigate back to the previous page.

  • Page 10: Welcome To The Dashboard

    TAP-EX3 USER’S GUIDE Welcome to the Dashboard The Dashboard will provide you with the current status of the Range Extender. SCAN to find an available network to extend. During the setup process, the wizard will refer to the Home Network and the Extended Network: The Home Network is the network you are trying to extend.

  • Page 11: Select A 2.4Ghz Home Network To Extend

    TAP-EX3 USER’S GUIDE Select a 2.4GHz Home Network to Extend The Range Extender can extend a single 2.4GHz network, a single 5GHz network or both (2.4GHz and 5GHz) simultaneously. The wizard will walk you through the setup of the 2.4GHz network first, and then the 5GHz network. Select the Wi-Fi network that you wish to extend.

  • Page 12: Connecting To A Secure Network (2.4Ghz)

    TAP-EX3 USER’S GUIDE Connecting to a Secure Network (2.4GHz) If the 2.4GHz Wi-Fi network you are trying to extend has Wi-Fi security enabled, you will be prompted to enter a Security Key. If you did not select a secure network, you will not see this page.

  • Page 13: Select A 5Ghz Home Network To Extend

    TAP-EX3 USER’S GUIDE Select a 5GHz Home Network to Extend (5GHz) Select the 5GHz Wi-Fi network that you wish to extend. Check that your Wi-Fi Network has a signal strength of 70% or greater. If you have already selected a 2.4GHz network and do not wish to select a 5GHz network, tap Skip to continue.

  • Page 14: Connecting To A Secure Network (5Ghz)

    TAP-EX3 USER’S GUIDE Connecting to a Secure Network (5GHz) If the 5GHz Wi-Fi network you are trying to extend has Wi-Fi security enabled, you will be prompted to enter a Security Key. If you did not select a secure network, you will not see this page.

  • Page 15: Extended Network Settings

    TAP-EX3 USER’S GUIDE Extended Network Settings The Range Extender features both a 2.4GHz and 5GHz Extended Network. The wizard will walk you through the setup of your 2.4GHz extended network first, and then the 5GHz extended network. The default SSID of the Range Extender’s Extended Network is “Amped TAPEX3_2.4”.
  • Page 16 TAP-EX3 USER’S GUIDE The default SSID of the Range Extender’s Extended Network is “Amped_TAPEX3_5.0”. If you choose to Clone the settings from your Home Network, the wizard will copy the SSID and Security Key of your Home Network. The SSID of the Extended Network will have a "_RE" at the end of its name.

  • Page 17: Applying Settings

    TAP-EX3 USER’S GUIDE Applying Settings DO NOT LEAVE THIS SCREEN. Allow the progress bar to complete and the Wizard will automatically redirect you to the next step.

  • Page 18: Setup Summary

    You may also attach any wired network devices to the wired ports on the side of the Range Extender at this time. If you experience any problems during this process, please contact our Amped Wireless Elite Support at 888-573-8820 or 909-217-3168.
  • Page 19 TAP-EX3 USER’S GUIDE If the Extended Network connection fails try the following… The failed connection page will provide you with information on why the connection failed. Read the instructions carefully and retry your connection. The tips below will help to solve common issues: Check to make sure your Home Network security settings are correct.

  • Page 20: More Settings (Touch Screen)

    TAP-EX3 USER’S GUIDE MORE SETTINGS (TOUCH SCREEN) The Range Extender’s Touch Screen Menu provides a host of features that you can easily configure with the touch of your finger. To access the main Settings Menu tap Settings from the Dashboard. From there you can access additional Wi-Fi Settings or Management Settings.

  • Page 21: Ghz Wi-Fi Settings (Touch Screen)

    TAP-EX3 USER’S GUIDE 2.4GHz WI-FI SETTINGS (TOUCH SCREEN) 2.4GHz Wi-Fi Settings (Touch): Home Network Settings Home Network Settings allow you to adjust settings for your Range Extender’s connection with your Home Network router. Should you choose to skip the Setup Wizard and manually configure your Range Extender, this is the menu you use to do Home Network SSID: Manually enter the Identification name of the Home Network you wish to connect to.

  • Page 22: Extended Network Settings

    TAP-EX3 USER’S GUIDE 2.4GHz Wi-Fi Settings (Touch): Extended Network Settings The Extended Network Settings page allows you to adjust settings for your Extended Network. Extended Network SSID: This is the Identification name of the repeated/extended network. Security Key: Enter the security key of the Extended Network. This is the password that your network devices will use to connect to the Extended Network.
  • Page 23 TAP-EX3 USER’S GUIDE 2.4GHz Wi-Fi Settings (Touch): Guest Network Guest Networks provide a separate Wi-Fi network, with unique settings for users to connect to. Select one of the four available Guest Networks. Toggle the selected Guest Network to to enable the Guest Network.

  • Page 24: Connected Devices

    TAP-EX3 USER’S GUIDE 2.4GHz Wi-Fi Settings (Touch): Connected Devices Connected Devices displays all users currently connected to the Range Extender’s Extended Network. It provides a list of MAC Addresses for each connected device and the sent and received data for each.

  • Page 25: Wi-Fi Coverage Controls

    TAP-EX3 USER’S GUIDE 2.4GHz Wi-Fi Settings (Touch): Wi-Fi Coverage Controls Adjust the output power of the Range Extender to control the coverage distance of your Extended Wi-Fi Network. For a smaller coverage area you can select a lower output power. For the maximum Wi-Fi coverage select the 100% selection.

  • Page 26: Access Schedule

    TAP-EX3 USER’S GUIDE 2.4GHz Wi-Fi Settings (Touch): Access Schedule You can set a schedule for when your Wi-Fi is enabled or disabled (both Home Network and the Extended Network) through the Access Schedule menu. To do so: Toggle the Access Schedule to On. b.

  • Page 27: Wi-Fi Protected Setup (Wps)

    TAP-EX3 USER’S GUIDE 2.4GHz Wi-Fi Settings (Touch): Wi-Fi Protected Setup (WPS) WPS is a Wi-Fi feature created to make Wi-Fi setup simple and easy. Some Wi-Fi routers and adapters support this feature with varying names (i.e. One Touch Setup or WPS). You may enable WPS setup here by tapping Start WPS PBC.

  • Page 28: User Access

    TAP-EX3 USER’S GUIDE 2.4GHz Wi-Fi Settings (Touch): User Access User Access allows you to deny access or allow access to specific users that are connecting wirelessly to the Extended Network. Each Wi-Fi device has a unique address called a MAC address (a 12 digit hex number).

  • Page 29: 5Ghz Wi-Fi Settings (Touch Screen)

    TAP-EX3 USER’S GUIDE 5GHz WI-FI SETTINGS (TOUCH SCREEN) 5GHz Wi-Fi Settings (Touch): Home Network Settings Home Network Settings allow you to adjust settings for your Range Extender’s connection with your Home Network router. Should you choose to skip the Setup Wizard and manually configure your Range Extender, this is the menu you use to do Home Network SSID: Manually enter the Identification name of the Home Network you wish to connect to.

  • Page 30: Extended Network Settings

    TAP-EX3 USER’S GUIDE 5GHz Wi-Fi Settings (Touch): Extended Network Settings The Extended Network Settings page allows you to adjust settings for your Extended Network. Extended Network SSID: This is the Identification name of the repeated/extended network. Security Key: Enter the security key of the Extended Network. This is the password that your network devices will use to connect to the Extended Network.
  • Page 31 TAP-EX3 USER’S GUIDE 5GHz Wi-Fi Settings (Touch): Guest Network Guest Networks provide a separate Wi-Fi network, with unique settings for users to connect to. Select one of the four available Guest Networks. Toggle the selected Guest Network to to enable the Guest Network.

  • Page 32: Connected Devices

    TAP-EX3 USER’S GUIDE 5GHz Wi-Fi Settings (Touch): Connected Devices Connected Devices displays all users currently connected to the Range Extender’s Extended Network. It provides a list of MAC Addresses for each connected device and the sent and received data for each.

  • Page 33: Wi-Fi Coverage Controls

    TAP-EX3 USER’S GUIDE 5GHz Wi-Fi Settings (Touch): Wi-Fi Coverage Controls Adjust the output power of the Range Extender to control the coverage distance of your Extended Wi-Fi Network. For a smaller coverage area you can select a lower output power. For the maximum Wi-Fi coverage select the 100% selection.

  • Page 34: Access Schedule

    TAP-EX3 USER’S GUIDE 5GHz Wi-Fi Settings (Touch): Access Schedule You can set a schedule for when your Wi-Fi is enabled or disabled (both Home Network and the Extended Network) through the Access Schedule menu. To do so: Toggle the Access Schedule to On. b.

  • Page 35: Wi-Fi Protected Setup (Wps)

    TAP-EX3 USER’S GUIDE 5GHz Wi-Fi Settings (Touch): Wi-Fi Protected Setup (WPS) WPS is a Wi-Fi feature created to make Wi-Fi setup simple and easy. Some Wi-Fi routers and adapters support this feature with varying names (i.e. One Touch Setup or WPS). You may enable WPS setup here by tapping Start WPS PBC.

  • Page 36: User Access

    TAP-EX3 USER’S GUIDE 5GHz Wi-Fi Settings (Touch): User Access User Access allows you to deny access or allow access to specific users that are connecting wirelessly to the Extended Network. Each Wi-Fi device has a unique address called a MAC address (a 12 digit hex number).

  • Page 37: Boostband Technology (Touch)

    TAP-EX3 USER’S GUIDE BOOSTBAND TECHNOLOGY (TOUCH) BoostBand Technology (Touch): Screen Settings BoostBand Technology is a feature that increases the overall speed and performance of the Range Extender by streamlining dual band network traffic through a single Wi-Fi frequency band between the Router and Range Extender. Doing so optimizes network traffic through the fastest available frequency band.

  • Page 38: Network Settings (Touch)

    TAP-EX3 USER’S GUIDE NETWORK SETTINGS (TOUCH) Network Settings (Touch): IP Settings IP Address: The IP address of the Range Extender. Subnet Mask: The subnet of the Range Extender. Default Gateway: The access point to another network, normally the Range Extender or your router. DHCP: The Range Extender includes a feature to help manage the IP addresses within your Extended Network and with your Home Network automatically.

  • Page 39: Wired Port Routing

    TAP-EX3 USER’S GUIDE Network Settings (Touch): Wired Port Routing If the Range Extender is connected to a dual band router, the Range Extender will automatically route the traffic from the device connected to the Range Extender’s wired port through the 5GHz Home Network to access the web with the fastest speeds.

  • Page 40: Management Settings (Touch)

    TAP-EX3 USER’S GUIDE MANAGEMENT SETTINGS (TOUCH) Management (Touch): Screen Settings Manage the behavior and security of the LCD screen: Timeout: When the touch screen is inactive past the duration of the Timeout time (in seconds), it will turn off to conserve power.

  • Page 41: Clock / Date

    TAP-EX3 USER’S GUIDE Management (Touch): Clock / Date Maintain the internal clock for the Range Extender by syncing with the Internet. Your clock and date settings need to be accurate in order for Logs and Wi-Fi Access Schedules to work correctly. If you wish for the Clock to show on your screen when the Range Extender is timed-out, toggle this to On.

  • Page 42: System Details

    TAP-EX3 USER’S GUIDE Management (Touch): System Details The Device Status provides you with a snapshot of your Range Extender’s current connections and settings. Home Wi-Fi Network Settings: This section displays the current status of the connection between the Range Extender and your 2.4GHz or 5GHz Home Network.
  • Page 43 TAP-EX3 USER’S GUIDE Device Details: This section provides you with information on the version and build time of your firmware. This is used to help our support department determine what firmware version your device is running. Current Date / Time is the setting for the System Clock.

  • Page 44: Statistics

    TAP-EX3 USER’S GUIDE Management (Touch): Statistics These statistics show the data activity for your 2.4GHz or 5GHz connections. Home Network: These statistics show the data activity for all upload and download data between the Home Network and the Range Extender. Extended Wi-Fi Network: These statistics show all data activity for all users connected wirelessly to the Range Extender.

  • Page 45: Usb Storage

    TAP-EX3 USER’S GUIDE Management (Touch): USB Storage Share a USB storage device with computers on both the Home Network and the Extended Network of the Range Extender. Insert a USB storage device, such as a flash drive or external hard drive, to the USB port on the side of the Range Extender and follow the directions below for your operating system.
  • Page 46 TAP-EX3 USER’S GUIDE Windows 7 & Vista To access the drive from your Windows desktop: Note: If the USB drive does not appear automatically under your Networked devices (Windows 7, Vista or Mac OS X), you will need to Map the Network Drive.
  • Page 47 TAP-EX3 USER’S GUIDE Windows XP To access the drive from your Windows desktop: Note: If the USB drive does not appear automatically under your Networked devices (Windows 7, Vista or Mac OS X), you will need to Map the Network Drive. Click the Start button...
  • Page 48 TAP-EX3 USER’S GUIDE Mac OS X To access the drive from your Mac desktop: Note: If the USB drive does not appear automatically under your Networked devices, you will need to Map your Network Drive (Instructions below). Open Finder b. On the left hand menu, under Shared, click AMPED_RE_USB To Map the network drive: Open...

  • Page 49: System Logs

    System Logs are useful for viewing the activity and history of the Range Extender. The System Logs are also used by Amped Wireless techs to help troubleshoot your Range Extender when needed. It is recommended that you enable all logs in the event that troubleshooting is required. All log entries are deleted each time the Range Extender reboots or is powered off.

  • Page 50: Upgrade Firmware

    TAP-EX3 USER’S GUIDE Management (Touch): Upgrade Firmware Amped Wireless continuously updates the firmware for all products in an effort to constantly improve our products and their user experiences. When connected to an active connection with Internet access, the Range Extender can...

  • Page 51: Reset Settings

    TAP-EX3 USER’S GUIDE Management (Touch): Reset Settings Reset the Range Extender’s settings to factory settings by pressing Reset. By resetting the Range Extender will lose all previous configurations and will need to run the Setup Wizard again to configure the Range Extender’s Settings.

  • Page 52: Accessing The Web Menu

    TAP-EX3 USER’S GUIDE ACCESSING THE WEB MENU The Range Extender can be configured via the simple to use Touch Screen Menu or via a web browser with the Web Menu. The Web Menu features a more advanced, more detailed interface with additional configuration options that may not be found on the Touch Screen Menu.

  • Page 53: Setup Guide (Web Menu)

    TAP-EX3 USER’S GUIDE SETUP GUIDE (WEB MENU) Find a Setup Location The location of where you install the Range Extender is very important to how it will function. The optimal setup location should be somewhere no more than halfway between your Wi-Fi router and your Wi-Fi dead zone.
  • Page 54 TAP-EX3 USER’S GUIDE Connect your PC, Tablet, or Smartphone to the Range Extender Attach the included antenna and product stand. b. Attach the Power Adapter to the Range Extender’s PWR Port and an available power outlet. (Check that the power toggle on the right side of the Extender is switched to ON) The Range Extender should boot up with the Amped Wireless logo and then the Dashboard screen should...

  • Page 55: Open Your Web Browser To Access The Setup Wizard

    TAP-EX3 USER’S GUIDE Open your Web Browser to Access the Setup Wizard Open your web browser b. Type http://setup.ampedwireless.com into the web address bar If the web menu fails to open, type in the following IP address into your web address bar: http://192.168.1.240 Disconnect your PC from all Wi-Fi networks...

  • Page 56: Welcome To The Dashboard

    TAP-EX3 USER’S GUIDE Welcome to the Dashboard The Dashboard will provide you with the current status of the Range Extender. Click SCAN to find an available network to extend. The diagram on this page displays the terms used to describe: 1) The network you are trying to extend (Home Network).

  • Page 57: Scan For A Home Network To Extend

    TAP-EX3 USER’S GUIDE Scan for a Home Network to Extend The Scan result will list all available 2.4GHz and 5GHz wireless networks detected by the Range Extender – including each network name (SSID), the operating channel, the type of security and the signal strength. If you are extending a dual band router, you will need to select the SSID of your 2.4GHz network and the SSID of your 5GHz network.

  • Page 58: Connecting To A Secure Network

    TAP-EX3 USER’S GUIDE Connecting to a Secure Network If the wireless network(s) you are trying to repeat has wireless security enabled, you will be prompted to enter a security key. If you are repeating a dual band router, you will need to enter the security key for both the 2.4GHz and 5GHz network.

  • Page 59: Extended Network Settings (Ssid And Security)

    TAP-EX3 USER’S GUIDE Extended Network Settings (SSID and Security) The default SSID of the Range Extender is “Amped_TAPEX3_2.4” “Amped_TAPEX3_5.0”. If you choose to "Clone" the settings from your Home Network, the wizard will copy the SSID and security key of your Home Network.
  • Page 60 TAP-EX3 USER’S GUIDE Connection Check DO NOT LEAVE OR REFRESH THIS PAGE. Allow the countdown to complete and the Wizard will automatically redirect you to the next step.
  • Page 61 TAP-EX3 USER’S GUIDE Connect to the new Extended Network During the countdown process, the Range Extender will reboot and disconnect the Wi-Fi connection. At this point, you will need to reconnect your PC or tablet to the new Extended Network. Follow the instructions on the screen to connect to the Extended Network.

  • Page 62: Setup Summary

    You may also attach any wired network devices to the wired ports on the side of the Range Extender. If you experience any problems during this process please contact Amped Wireless Elite Support at 888-573-8820.
  • Page 63 TAP-EX3 USER’S GUIDE Wired Port Routing The Setup Wizard automatically selects the Home Network (2.4GHz or 5GHz) your wired devices will be routed through to connect to the Internet. If you wish to change this setting you may do so from the web menu by accessing Network Settings >...
  • Page 64 TAP-EX3 USER’S GUIDE If the Home/Office Network connection fails try the following… The failed connection page will provide you with information on why the connection failed. Read the instructions carefully and retry your connection. The tips below will help to solve common issues: Check to make sure your Home Network security settings are correct.

  • Page 65: 5Ghz Wi-Fi Settings (Web Menu)

    TAP-EX3 USER’S GUIDE 5GHz WI-FI SETTINGS 5GHz Wi-Fi Settings: Home Network Settings (5GHz) The Home Network Settings (5GHz) page allows you to adjust settings for your 5GHz Home Network connection. These settings are for adjusting the Range Extender’s Home Network connection after you have already gone through the Setup Wizard and wish to adjust your current configurations.

  • Page 66: Extended Network Settings

    TAP-EX3 USER’S GUIDE 5GHz Wi-Fi Settings: Extended Network Settings (5GHz) The Extended Network Settings page allows you to adjust settings for your Extended Network. SSID of Extended Network: The name used to identify your Extended Network. This is the name that appears when a user scans for available Wi-Fi networks.
  • Page 67 TAP-EX3 USER’S GUIDE Guest Networks (5GHz) Click “Enable” to create a Guest Network. Guest Networks provide a separate wireless network, with unique settings for users to connect to. Band: Restrict the Wi-Fi protocol and speed used for the specific Guest Network. SSID: This is the name of your Guest Network.

  • Page 68: Security

    If you are using the Guest Network feature, you will be able to adjust the security settings for those additional network SSIDs here as well. For more information on the differences between the types of Wi-Fi security available, please visit the Learning Center on the Amped Wireless website: www.ampedwireless.com...

  • Page 69: Wi-Fi Protected Setup - Wps

    TAP-EX3 USER’S GUIDE 5GHz Wi-Fi Settings: Wi-Fi Protected Setup – WPS WPS is a Wi-Fi feature created to make Wi-Fi setup simple and easy. Some wireless routers and adapters support this feature with varying names (i.e. one touch setup or WPS). You may enable WPS setup here by selecting the type of WPS setup you wish to use.

  • Page 70: User Access

    TAP-EX3 USER’S GUIDE 5GHz Wi-Fi Settings: User Access User Access allows you to deny access or allow access to specific users connecting to the network. Each networking device has a unique address called a MAC address (a 12 digit hex number). By inputting the MAC address into the field, you can define whether that device is allowed into your network allowed.

  • Page 71: Wireless Coverage Controls

    TAP-EX3 USER’S GUIDE 5GHz Wi-Fi Settings: Wireless Coverage Controls Adjust the output power of the Range Extender to control the coverage distance of your 5GHz Extended Wireless Network. For a smaller coverage area you can select a lower output power. For the maximum wireless coverage select the 100% selection.

  • Page 72: Access Schedule

    TAP-EX3 USER’S GUIDE 5GHz Wi-Fi Settings: Access Schedule Access Schedules will enable or disable your 5GHz wireless access at a set time based on your predefined schedule. This feature is often used for restricting access to all users (such as children, employees, guests) during specific times of the day for parental control or security reasons.

  • Page 73: Advanced Settings

    TAP-EX3 USER’S GUIDE 5GHz Wi-Fi Settings: Advanced Settings Advanced Wireless Settings should only be adjusted by technically advanced users. It is not recommended that novice users adjust these settings to avoid degrading wireless performance.Here are a few definitions on some settings. Fragment Threshold: The Default and Recommended setting is at 2346, meaning the High Power Range Extender will never fragment any frames that it sends to wireless users.
  • Page 74 TAP-EX3 USER’S GUIDE IAPP: Inter-Access Point Protocol STBC: Space Time Block Coding improves reception by coding the data stream in blocks.

  • Page 75: Ghz Wi-Fi Settings (Web Menu)

    TAP-EX3 USER’S GUIDE 2.4GHz WI-FI SETTINGS 2.4GHz Wi-Fi Settings: Home Network Settings The Home Network Settings (2.4GHz) page allows you to adjust settings for your 2.4GHz Home Network connection. These settings are for adjusting the Range Extender’s Home Network connection after you have already gone through the Setup Wizard and wish to adjust your current configurations.

  • Page 76: Extended Network Settings

    TAP-EX3 USER’S GUIDE 2.4GHz Wi-Fi Settings: Extended Network Settings The Extended Network Settings page allows you to adjust settings for your Extended Network. SSID of Extended Network: The name used to identify your Extended Network. This is the name that appears when a user scans for available Wi-Fi networks.
  • Page 77 TAP-EX3 USER’S GUIDE 2.4GHz Wi-Fi Settings: Guest Networks Click “Enable” to create a Guest Network. Guest Networks provide a separate wireless network, with unique settings for users to connect to. Band: Restrict the Wi-Fi protocol and speed used for the specific Guest Network.

  • Page 78: Security

    If you are using the Guest Network feature, you will be able to adjust the security settings for those additional network SSIDs here as well. For more information on the differences between the types of Wi-Fi security available, please visit the Learning Center on the Amped Wireless website: www.ampedwireless.com...

  • Page 79: Wi-Fi Protected Setup - Wps

    TAP-EX3 USER’S GUIDE 2.4GHz Wi-Fi Settings: Wi-Fi Protected Setup – WPS WPS is a Wi-Fi feature created to make Wi-Fi setup simple and easy. Some wireless routers and adapters support this feature with varying names (i.e. one touch setup or WPS). You may enable WPS setup here by selecting the type of WPS setup you wish to use.

  • Page 80: User Access

    TAP-EX3 USER’S GUIDE 2.4GHz Wi-Fi Settings: User Access User Access allows you to deny access or allow access to specific users connecting to the network. Each networking device has a unique address called a MAC address (a 12 digit hex number). By inputting the MAC address into the field, you can define whether that device is allowed into your network allowed.

  • Page 81: Wireless Coverage Controls

    TAP-EX3 USER’S GUIDE 2.4GHz Wi-Fi Settings: Wireless Coverage Controls Adjust the output power of the Range Extender to control the coverage distance of your 2.4GHz Extended Wireless Network. For a smaller coverage area you can select a lower output power. For the maximum wireless coverage select the 100% selection.
  • Page 82 TAP-EX3 USER’S GUIDE 2.4GHz Wi-Fi Settings: Access Schedule Access Schedules will enable or disable your 2.4GHz wireless access at a set time based on your predefined schedule. This feature is often used for restricting access to all users (such as children, employees, guests) during specific times of the day for parental control or security reasons.

  • Page 83: Advanced Settings

    TAP-EX3 USER’S GUIDE 2.4GHz Wi-Fi Settings: Advanced Settings Advanced Wireless Settings should only be adjusted by technically advanced users. It is not recommended that novice users adjust these settings to avoid degrading wireless performance.Here are a few definitions on some settings. Fragment Threshold: The Default and Recommended setting is at 2346, meaning the High Power Range Extender will never fragment any frames that it sends to wireless users.
  • Page 84 TAP-EX3 USER’S GUIDE IAPP: Inter-Access Point Protocol STBC: Space Time Block Coding improves reception by coding the data stream in blocks.

  • Page 85: Boostband™ Technology (Web Menu)

    TAP-EX3 USER’S GUIDE BOOSTBAND™ TECHNOLOGY BoostBand Technology is a feature that increases the overall speed and performance of the Range Extender by streamlining dual band network traffic through a single Wi-Fi frequency band between the Router and Range Extender. Doing so optimizes network traffic through the fastest available frequency band.

  • Page 86: Network Settings (Web Menu)

    TAP-EX3 USER’S GUIDE NETWORK SETTINGS Network Settings: IP Settings IP Address: The IP address of the Range Extender. Subnet Mask: The subnet of the Range Extender. Default Gateway: The access point to another network, normally the Range Extender or your router. DHCP: The Range Extender includes a feature to help manage the IP addresses within your Extended Network and with your Home Network automatically.
  • Page 87 TAP-EX3 USER’S GUIDE DHCP Client Range: The range of IP addresses the Range Extender’s DHCP server will assign to users and devices connecting to the Range Extender. Static DHCP: You may set a static IP address within your DHCP network. The Range Extender will track the device via its MAC address and assign it a pre-defined IP address each time the device logs into the network.

  • Page 88: Wired Port Routing

    TAP-EX3 USER’S GUIDE Network Settings: Wired Port Routing If the Range Extender is connected to a dual band router, the Range Extender will automatically route the traffic from the device connected to the Range Extender’s wired port through the 5GHz Home Network to access the web with the fastest speeds.

  • Page 89: Management Features (Web Menu)

    TAP-EX3 USER’S GUIDE MANAGEMENT FEATURES The Management features on the Range Extender allow you to view the status of your Range Extender and adjust other settings such as your System Clock, Passwords, and Firmware Upgrades among other administrative functions.

  • Page 90: Device Status

    TAP-EX3 USER’S GUIDE Management: Device Status The System Status provides you with a snapshot of your Range Extender’s current connections and settings. System Information: This section provides you with information on the version and build time of your firmware. This is used to help our support department determine what firmware version your device is running.
  • Page 91 TAP-EX3 USER’S GUIDE Connection State: The Connection State will say "Connected" when there are no problems with the connection to your Home Network. If the Connection State shows "Waiting for Keys" then the WPA/WPA2 security key you entered is incorrect. If the Connection State shows "Scanning"...

  • Page 92: Network Statistics

    TAP-EX3 USER’S GUIDE Management: Network Statistics These statistics show the data activity for each network connection. Connection to Home Network: This statistics shows the data activity for all upload and download data between the Home Network and the Range Extender. Extended Wireless Network: These statistics shows all data activity for all users connected wirelessly to the Range Extender.

  • Page 93: System Clock

    TAP-EX3 USER’S GUIDE Management: System Clock Maintain the internal clock for the Range Extender by syncing with your computer’s time. Your system clock settings need to be accurate in order for logs and wireless access schedules to work correctly.

  • Page 94: System Logs

    System Logs are useful for viewing the activity and history of the Range Extender. The System Logs are also used by Amped Wireless Elite Support Concierges to help troubleshoot your Range Extender when needed. It is recommended that you enable all logs in the event that troubleshooting is required. All log entries are...

  • Page 95: Upgrade Firmware

    Manual Firmware Upgrade: In the case that the Range Extender does not have access to the Internet, you can manually upgrade the firmware by downloading the firmware file from the Amped Wireless Elite Support website. The firmware update is downloaded as a zip file and you will need to have an unzipping program to open the file.
  • Page 96 TAP-EX3 USER’S GUIDE Download the file from www.ampedwireless.com/support and remember the location where you saved it. Firmware files may also be provided by Amped Wireless Elite Support Concierges. b. Click Choose File and locate the file. Click Upload to begin upgrading.

  • Page 97: Save/Reload Settings

    TAP-EX3 USER’S GUIDE Management: Save/Reload Settings Saving your current settings allows you to back-up your current settings which may be reloaded at a later time. This feature may be useful for testing new features and settings without having to worry about returning to a stable platform. To save current settings: To load previously saved settings: Click Save...

  • Page 98: Password Settings

    TAP-EX3 USER’S GUIDE Management: Password Settings By default, the Range Extender does not require a password to log on to the web menu. If you wish to enable a password to protect unauthorized access to the web menu and Setup Wizard, you may enter one here.

  • Page 99: Technical Specifications

    TAP-EX3 USER’S GUIDE TECHNICAL SPECIFICATIONS Wireless Standard: 802.11a/b/g/n/ac Antennas: Frequency Band: 2.4 GHz, 5.0GHz  1 x Detachable High Gain Wireless Speed: 2.4GHz: 450Mbps (Tx/Rx) Dual Band Antenna 5.0GHz: 1300Mbps (Tx/Rx)  2 x Internal High Gain Antennas Amplifier: 3 x 2.4GHz Amplifiers ...

  • Page 100: Default Settings

    TAP-EX3 USER’S GUIDE DEFAULT SETTINGS The default settings for your Range Extender are listed here. If for some reason you need to return your Range Extender back to default settings, hold down the Reset button on the back panel for 10 seconds. The Range Extender will reset back to factory settings as listed below: IP Address: 192.168.1.240 Web Menu Access:...

  • Page 101: Troubleshooting & Support Information

    USER’S GUIDE TROUBLESHOOTING & SUPPORT INFORMATION We are here to help. If you have any issues with your Range Extender please contact us. To contact Amped Wireless’ Technical Support use one of the following methods: Phone: 888-573-8820 or 909-217-3168 Email: techsupport@ampedwireless.com...
  • Page 102 TAP-EX3 USER’S GUIDE Troubleshooting The tips in this guide are listed in order of relevance. Try solution (a) before trying solution (b), etc. Troubleshooting: Home Network Connection Issues I cannot connect to my Home Network. I received an error when running the Setup Wizard. Your Home Network may be secured.
  • Page 103 TAP-EX3 USER’S GUIDE I cannot find my Home Network when scanning for Wi-Fi networks in the Setup Wizard. The Range Extender may be out of range. Move the Range Extender closer to the Wi-Fi router and try the Setup Wizard again from the Touch Screen Menu. It is recommended that your Home Network shows a signal strength of 70% or greater in the Wizard SCAN results.
  • Page 104 TAP-EX3 USER’S GUIDE My Range Extender was working fine previously, but now I can no longer access the Internet through the Range Extender. Or, I had a POWER OUTAGE and now the Range Extender no longer works. The Range Extender should automatically heal itself and reconnect to your wireless network. However, in the event that it does not and you are not able to access the Internet or your home network please try the following options: The connection to your Home Network has been dropped.
  • Page 105 TAP-EX3 USER’S GUIDE d. Check to see that your home Wi-Fi router is still on. If it has been turned off please turn it back on. The Range Extender should automatically reconnect to your Home Network within 10 minutes. If the range extender does not automatically reconnect, try rebooting the Range Extender by unplugging the power cable and plugging it back in.
  • Page 106 TAP-EX3 USER’S GUIDE I cannot find any Wi-Fi networks (Home Networks) to extend. The Range Extender may be out of range. Move the Range Extender closer towards the Wi-Fi router and try the Setup Wizard again from the Touch Screen Menu. b.
  • Page 107 TAP-EX3 USER’S GUIDE I can no longer connect to the Range Extender wirelessly. Power on and off the Range Extender and try again. b. The connection to the Home Network may be down. Run through the Setup Wizard again. After you have successfully reset the Home Network connection, try connecting wirelessly again.
  • Page 108 TAP-EX3 USER’S GUIDE Network devices connected to the wired ports of the Range Extender do not have Internet access. The Wired Port Routing on the Range Extender may not be defined correctly. While connected to the Range Extender, open your web browser and access http://setup.ampedwireless.com From the web menu, go to...
  • Page 109 TAP-EX3 USER’S GUIDE The touch screen turns off too quickly. From the Dashboard screen, tap on Settings. Tap on Management Settings and then Screen Settings. This screen will allow you to adjust the timeout time for the screen to turn off when there is an interval of no activity.
  • Page 110 TAP-EX3 USER’S GUIDE The range from the Range Extender seems low. Check to see that your Wi-Fi output settings are at 100%. From the Dashboard, go to Settings, then to the Wi-Fi Settings menu and access the Wireless Coverage settings. Make sure the output power is at 100%.
  • Page 111 TAP-EX3 USER’S GUIDE Troubleshooting: Web Menu Access Issues I entered http://setup.ampedwireless.com and it failed to open the Web Menu. Make sure your computer is connected to the Range Extender’s Wi-Fi network: Amped_TAPEX3_2.4 or Amped_TAPEX3_5.0 b. Try to use a different web browser. We recommend the Google Chrome web browser. Try to open your web browser to the default IP address by putting this number into your web browser instead: 192.168.1.240 d.
  • Page 112 TAP-EX3 USER’S GUIDE I could NEVER log onto the Range Extender wirelessly. Check that your wireless adapter supports WPA2 or WPA wireless security. If it does not then you will need to change the wireless security on the Range Extender. Go to the Web Menu, select Wireless Settings and then Wireless Security.
  • Page 113 TAP-EX3 USER’S GUIDE seconds then let go. After the Range Extender has fully reset, use an Ethernet cable (not included) and connect to the Range Extender. Login to the Web Menu at http://setup.ampedwireless.com and run through the Wizard. Troubleshooting: USB Storage & Other Miscellaneous Issues I cannot access my USB storage device after I plug it into the Range Extender.
  • Page 114 TAP-EX3 USER’S GUIDE To Map the Network Drive: Click the Start button. b. Click Computer. Click Map Network Drive from the top bar. d. Select a drive letter (any), then enter in the folder field: \\AMPED_RE_USB \\shared disk IP address If the drive fails to open, click browse and locate...
  • Page 115 TAP-EX3 USER’S GUIDE To Map the network drive: Click the Start button. b. Right click My Computer and select Map Network Drive. Select a drive letter (any), then enter in the folder field: \\AMPED_RE_USB \\shareddisk IP address d. If the drive fails to open, click browse and locate AMPED_RE_USB...
  • Page 116 Make sure your USB storage device is not corrupted and is working properly and try again. Additional USB Storage troubleshooting tips may be available online at the Amped Wireless Elite Support Center. Please check the Elite Support Center for the latest updates and features for USB Storage support.

  • Page 117: Warranty And Regulatory Information

    The Amped Wireless (A division of Newo Corporation, Inc.) Limited Warranty Warranty Period: The Amped Wireless Limited Warranty is for one (1) year from the date of purchase for new products. Refurbished products carry the Limited Warranty for thirty (30) days after the date of purchase.
  • Page 118 A dated proof of original purchase and the RMA number is required to process warranty claims. You are responsible for properly packaging and shipping the product at your cost and risk to Amped Wireless. The bearer of cost related to shipping repaired or replaced product back to the purchaser will be at the sole...
  • Page 119 TAP-EX3 USER’S GUIDE discretion of Amped Wireless and determined based on the details of each RMA case. Customers outside of the United States of America are responsible for all shipping and handling costs including custom duties, taxes and all other related charges.
  • Page 120 TAP-EX3 USER’S GUIDE Regulatory Information FCC Statement and Declaration: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 121 TAP-EX3 USER’S GUIDE FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 122 TAP-EX3 USER’S GUIDE Industry Canada Statement: This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence.
  • Page 123 TAP-EX3 USER’S GUIDE les dispositifs fonctionnant dans la bande 5150-5250 MHz sont réservés uniquement pour une utilisation à l’intérieur afin de réduire les risques de brouillage préjudiciable aux systèmes de satellites mobiles utilisant les mêmes canaux. The maximum antenna gain permitted for devices in the band 5725-5850 MHz shall be such that the equipment still complies with the E.I.R.P..
  • Page 124 TAP-EX3 USER’S GUIDE This radio transmitter (TAP-EX3) has been approved by Industry Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

  • Page 125: Legal Notices And Disclaimers

    LEGAL NOTICES AND DISCLAIMERS Copyright Information and Trademark Usage Guidelines © 2014 Amped Wireless / Newo Corporation. All rights reserved. Amped Wireless, Newo Corporation, and the Amped Wireless logo are registered trademarks or trademarks of Newo Corporation. All non-Amped Wireless trademarks, logos, brands and products are trademarks or registered trademarks of their respective owners.
