Amped Wireless TAP-EX2 Setup Manual

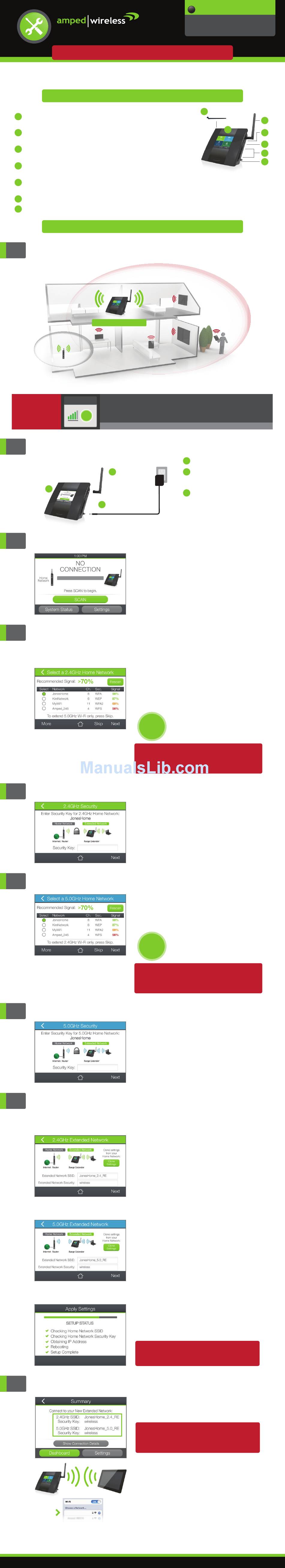

SETUP GUIDE
HIGH POWER TOUCH SCREEN
AC750 WI-FI RANGE EXTENDER

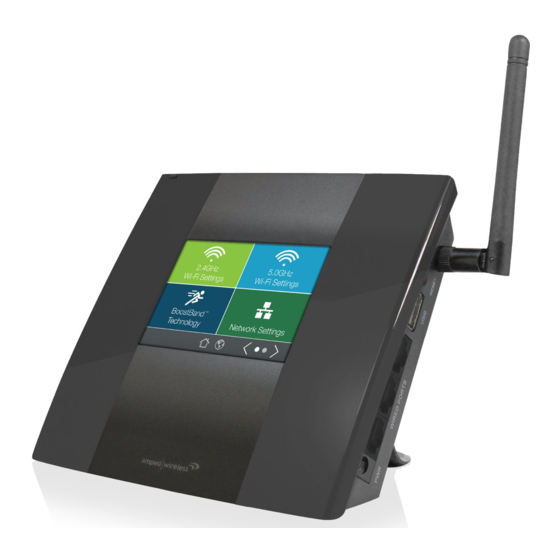

Getting to Know the Range Extender

LCD Screen: 3.5" LCD touch screen. Displays the user
1
interface for configuring the Range Extender.
2 Stylus: Input tool that assists in navigating the LCD
touch screen menu.
3 Antenna RJ-SMA antenna connector. Compatible with all
Connector:
antennas that have RP-SMA connectors.
4 Reset: Button used to reset device. Push down once to reboot, hold
down for 5-10 seconds to reset to factory default settings.
5 USB Port: USB 2.0 Port used to attach USB storage devices, such as
a USB flash drive or external hard drive, for file sharing.
6 Wired Ports: RJ-45 ports for connecting wired computers or network devices.
7 Power (PWR): Power adapter port. DC 12V, 1A.
Find an Optimal Setup Location Between your Wireless Router
1
and your Wireless Dead Zone
Wi-Fi Router
Home/Office Network
SIGNAL STRENGTH
IMPORTANT:
2
Power on the Range Extender
c
3

Welcome to the Dashboard

4

Scan for a 2.4GHz Home Network to Extend

The Range Extender can extend a single 2.4GHz network, a single 5GHz network or both
(2.4GHz and 5GHz) simultaneously. The wizard will walk you through the setup of the 2.4GHz
network first, and then the 5GHz network.
5

Home Network Security Settings (if necessary)

6

Scan for a 5GHz Home Network to Extend

7
Home Network Security Settings (if necessary)
8
Configure Settings for your Extended Network
The Range Extender features both a 2.4GHz and a 5GHz Extended Network. The wizard will
walk you through the setup of your 2.4GHz extended network first, and then the 5GHz extended
network.
9

Setup Summary

Amped_TAPEX2
READ FIRST

Setting Up Your Range Extender

Wi-Fi Range Extender
RECOMMENDED PLACE THE RANGE EXTENDER IN A LOCATION
WHERE IT CAN RECEIVE A STRONG SIGNAL
FROM YOUR WIRELESS ROUTER.
>70%
This can be done before or after setup is complete. The Range Extender will save your settings.
a
b
See back for additional connection instructions and features.
Phone: 888-573-8820 or 909-217-3168
Email: techsupport@ampedwireless.com
Web: www.ampedwireless.com/support
a
b
c
The Dashboard will provide you with the current status
of the Range Extender.
Tap Scan to find available networks to extend.
Note: The Setup Guide will refer to the existing network that you wish to extend
as the Home Network. The new, expanded network will be referred to as your
Extended Network.
Select the 2.4GHz Wi-Fi network that you wish to extend.
If you wish to only extend a 5GHz network and not a
2.4GHz network, tap Skip to move on to the 5GHz
network selection (Section 6).
Otherwise, tap Next to continue.
Recommended Signal
Select the Wi-Fi network with a signal
>70%
strength greater than 70% for the most
reliable connection.
Poor signal connections may cause slow speeds or
dropped connections. If you do not see your desired
wireless network, move the Range Extender closer to
the router and scan again as it may be out of range.
If your 2.4GHz Home Network has security enabled, you
will need to enter the key here.
Tap Next to continue.
Select the 5GHz Wi-Fi network that you wish to extend. If
you have already selected a 2.4GHz network and do not
wish to select a 5GHz network, tap Skip to continue.
Otherwise, tap Next to continue.
Recommended Signal
Select the Wi-Fi network with a signal
>70%
strength greater than 70% for the most
reliable connection.
Poor signal connections may cause slow speeds or
dropped connections. If you do not see your desired
wireless network, move the Range Extender closer to
the router and scan again as it may be out of range.
If your 5GHz Home Network has security enabled, you
will need to enter the key here.
Tap Next to continue.
The default ID of your 2.4GHz Extended Network is:
Amped_TAPEX2_2.4
If you choose to Clone Settings
Network, the wizard will copy the SSID and Security
Key of your Home Network. The SSID of the Extended
Network will have a "_RE" at the end of its name. For
example: Home_Network_RE
You can also manually enter a new Network ID and
Security Key. The new Security Key must be at least 8
characters long.
Tap Next to apply the settings. Repeat these steps for
your 5GHz Extended Network.
The default ID of your 5GHz Extended Network is:
Amped_TAPEX2_5.0
If you choose to Clone Settings
Network, the wizard will copy the SSID and Security
Key of your Home Network. The SSID of the Extended
Network will have a "_RE" at the end of its name. For
example: Home_Network_RE
You can also manually enter a new Network ID and
Security Key. The new Security Key must be at least 8
characters long.
Tap Next to apply the settings.
The Setup Wizard will apply your settings. Please be
patient. If there are any problems with the connection,
a prompt will appear letting you know what to fix.
At this point you can connect your Wi-Fi devices to
your Extended Network using the Wi-Fi network
name and password on the screen.
If you haven't already positioned your Range Extender
in an optimal location, you may do so now. All Range
Extender settings are saved and can be safely
powered off for relocation.
You may also attach any wired network devices to
the wired ports on the side of the Range Extender.
If you experience any problems during this process,
please contact Amped Wireless Elite Support:
Phone: 888-573-8820
Email: techsupport@ampedwireless.com
Web: www.ampedwireless.com/support
?
GOT QUESTIONS?
TAP-EX2
Stylus
2
1
Dead Zone
Attach the included antenna.
Attach the Power Adapter to the
Range Extender's power port
and an available power outlet.
The Amped Wireless logo will
appear as the unit boots up, then
the Dashboard screen will appear.
from your Home
from your Home
or 909-217-3168
3
4
5
6
7
