Summary of Contents for Zetronix CRESCENDO

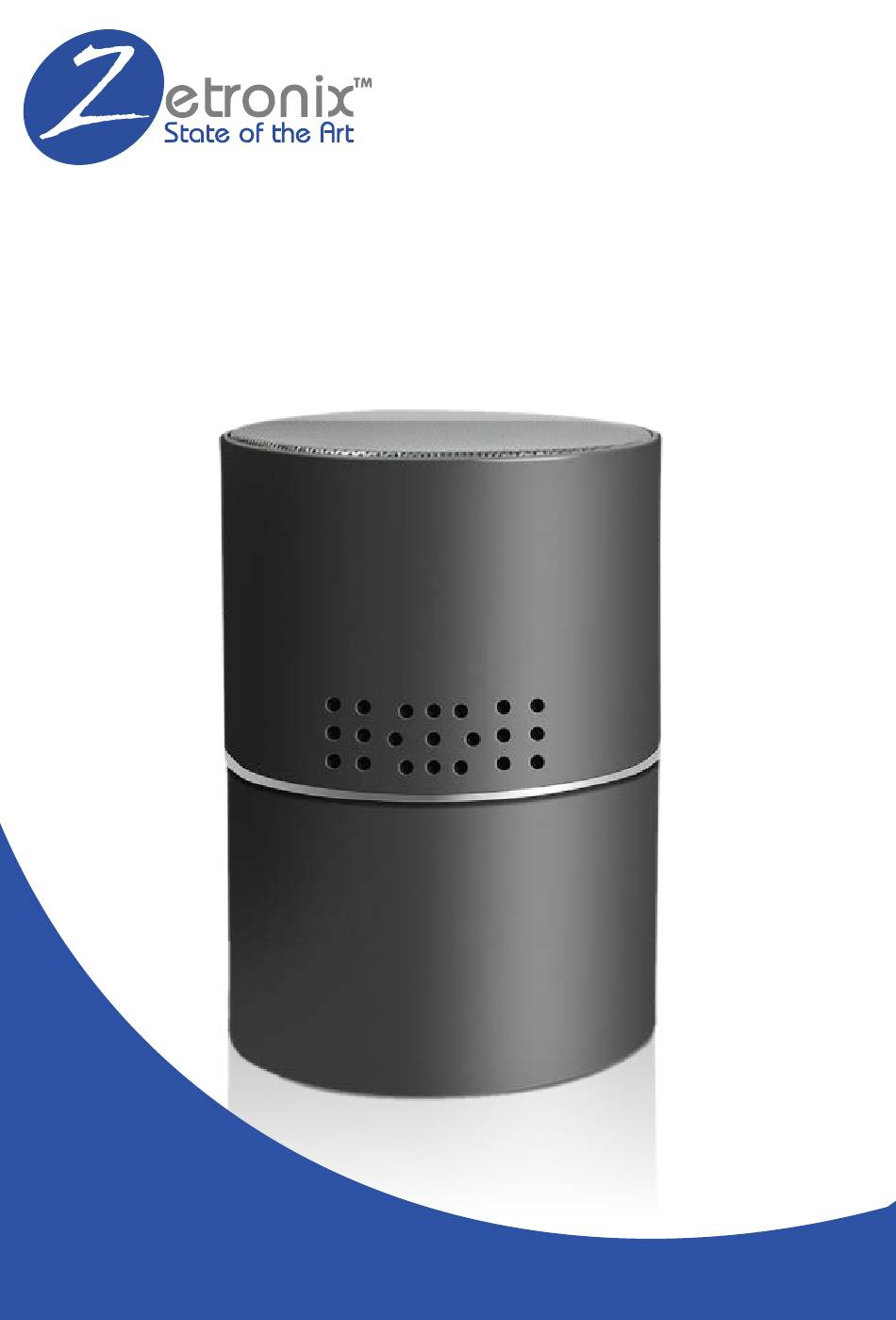

- Page 1 CRESCENDO SPEAKER CAMERA MANUAL HDSmartIPC...
- Page 3 IN THE BOX 1x Speaker Camera 1x USB cable 1X Driver CD 1x This manual Micro USB adapter 1X USB AC Wall Charger 1X Reset Pin...
- Page 4 ❻ MicroSD Card slot ❶ WiFi Camera ON/OFF ❼ Intercom Speaker ❷ Reset pinhole ❽ Loud Speaker ❸ USB Interface Port ❾ Hidden IR LEDs ❹ Bluetooth Search Switch ❿ Hidden Camera ❺ Wifi Indicator Light ❽ Speaker...
- Page 5 Power up the CRESCENDO Connect one end of the USB cord ) to the USB port on the CRESCENDO ❸ and the other end to the USB AC Wall Charger (F). Turn on the CRESCENDO’s WiFi Flip the WiFi switch ❶ on the back of the CRESCENDO to the ON position.
- Page 6 Connect to the CRESCENDO’s WiFi Open your smartphone settings, search and connect the device's wireless signal name starting with the letters "LM..." or "AI...",wait for Wi-Fi to connect, and phone status bar shows the Wi-Fi symbol in blue. ____________ ████████████...
- Page 7 Connect the phone to the CRESCENDO. z We a t h e r S t a t i o n - 5 0 0 w Enter the App, and the app will add just the connected camera automatically. if you dont see any listed press the plus sign (+) to add a new camera.
- Page 8 Add the camera Back on the App's main screen you will see a video preview display of the added camera. Press the gear icon to open settings then select Device settings. _____ ___ _______ ____...
- Page 9 Select Wi-Fi Config (Network configuration on Andoid phones) then look for your local WiFi network name (SSID). You will be prompted for your local network Password. The App will now connect to the camera. _____________ Quit and restart the App, and the device will start up with the WiFi connected within 30 secods.
- Page 10 Camera UID / Name Camera status Recorded videos in memory card Camera setting Files: Snapshots and Recorded videos Message: Alarm messages (Please insert micro sd card to get alarm pictures)
- Page 11 Advanced features: Set name: Set camera name like, Office. Living room. Kids room... Set new password: Set camera new password Wi-Fi config: Set camera to other Wi-Fi Video setting: Set SD card record mode / Resolution /File length … Motion alarm config: Set motion detection sensitivity Camera info: Camera ip address, Mac address, Reboot...
- Page 12 ❹ CRESCENDO to start the search. Under your phone Settings, ensure Blutooth is turned on, wait for it to search then select the 022BT device. All media played on your phone will be played out though CRESCENDO’s speaker.
- Page 13 Seting up camera name and password: Hit the gear icon below the camera view, then select Modify Device, you will be prompted to Set name, choose a new camera name, then set the Set new password. The Default (old) password is 8888. Enter your desired password, and hit OK.
- Page 14 Alarm rnotification will sent you a notification and record a snapshot when the camera detects motion. Under Device settings choose set Motion Alarm config and set Motion detection to ON. Alarm interval is the time it should continue to record after motion was initially triggered. ___________ To record the video on Alarm, please refer to the previus section.
- Page 15 Media can be recorded to a memory card installed on the device. First make sure that you have a MicroSD memory card installed in the CRESENDO. Hit the gear icon below the camera view to go into Device Stttings, then select MicroSD Card Config on Android phones and look for TF card set.
- Page 16 Videos can be reviewed and copied to a hard drive by inserting the memory card into your computer. You may have to use the included adapter (E). It will come up as a removable drive and all the files can be accessed by opening the folder.
- Page 17 Please refer to the next section on how to format the memory card. Restart the CRESDENDO Restart the app, disconnect the power from the CRESCENDO, turn off the WiFI ❶, for about 30 seconds, reconnect the power and finally turn on the WiFI ❶. Reset the CRESCENDO’s WiFi: While the Wifi power is on ❶, using the...
- Page 18 Connect the memory to your PC as instructed on page 18 of this manual. Locate your hard drive directory. It will be under “My Computer” or “This PC”. You can also open a new File Explorer window and your drives will be listed there. The memory card will appear as a “Removable Drive”...
- Page 19 From the options shown, make sure that you have selected FAT32 or exFAT as your file system. Leave other settings at their defaults. Click Start. After a few seconds the memory will be formatted.
- Page 20 Formatting the memory on a Mac Connect the memory card to your computer as instructed page 18 of this manual. Locate and open a program called “Disk Utility”. It is usually found by going into the application folder and opening the utility folder.
- Page 21 In Disk Utility, Select the drive from the list on the left. Most likely named “NO NAME”. Along the top of the window menu, click on the button labeled Erase (highlighted in the square above) From the dropdown menu labeled Format, choose MS-DOS (FAT).
- Page 22 Item Parameter Sensor 2 Megapixel Video Resolution 1920x1080 Video Format H.264 Frame Rate 25 FPS Rotation Angle 330 degrees Invisible 3M Night vision 5V/2A Micro USB Power Adapter 128MB MicroSD Me mory Ca pacity USB type Micro USB / USB 2.0 Mobile OS Support Android / iOS Desktop OS...
-
Page 23: 1-Year Limited Warranty
Zetronix Corporation ("Zetronix") warrants this product against defects in material or workmanship as follows: PRODUCT: Zetronix will repair this product with new or refurbished parts, free of charge, for a period of one (1) year from the date of original purchase in the event of a defect in materials or workmanship. - Page 24 PRODUCT: Zetronix will repair this product with new or refurbished parts, free of charge, for a period of one (1) year from the date of original purchase in the event of a defect in materials or workmanship.
- Page 25 Still Have Questions? 9AM-5PM EST...
- Page 28 ©2020 Zetronix Corp.
