Summary of Contents for Zetronix TRURO PRO

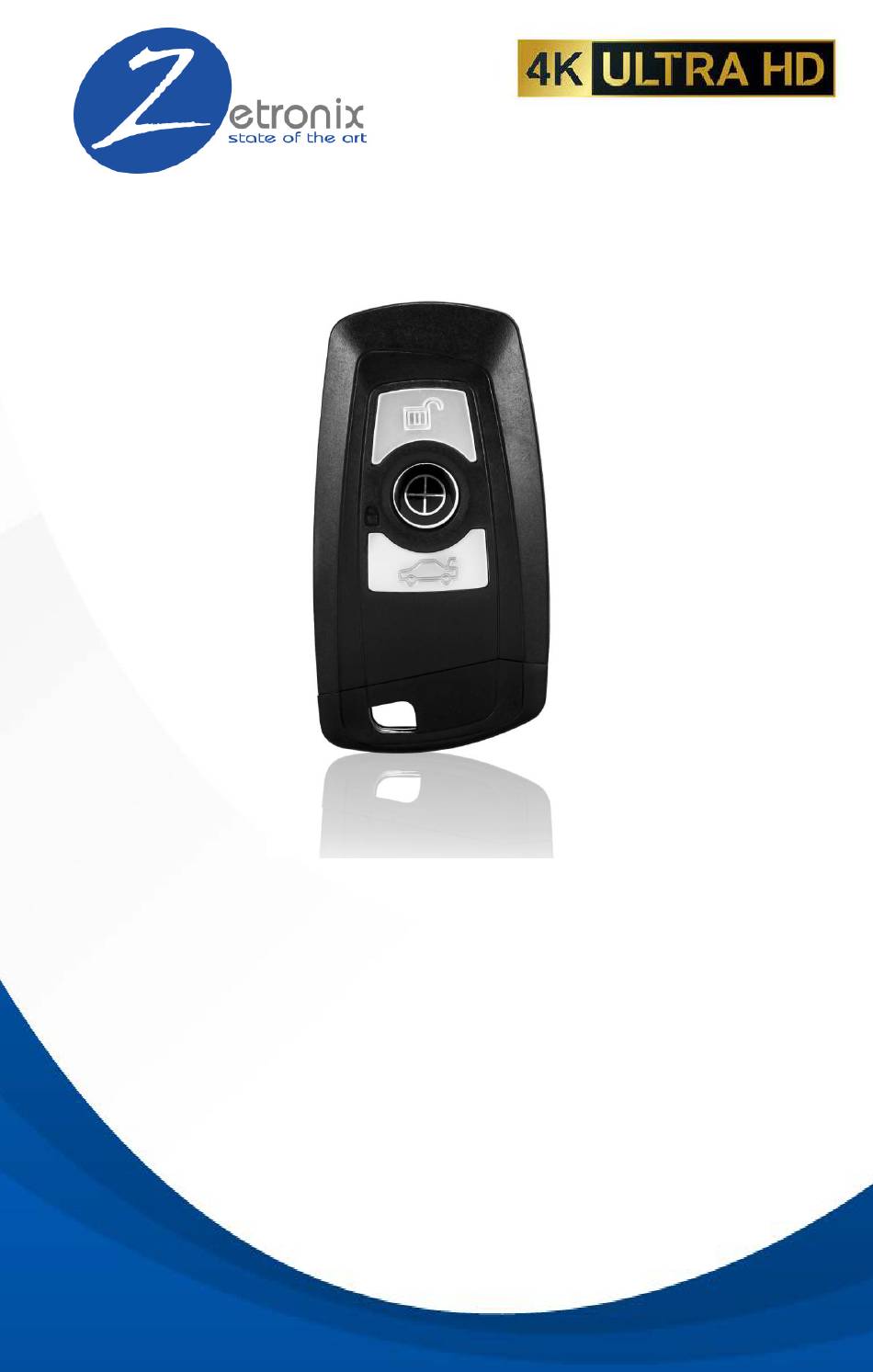

- Page 1 Mini Digital Video Recorder TRURO PRO zKChain-4K-WiFi User Manual...
- Page 2 Please read this user manual carefully before operating this product and keep it for your future reference. Features IMX 179 SONY 8.0MP sensor with WDR ► ► Frame rate up to 120fps ► Quickly video recording and photo shooting ► Wi-Fi Streaming Via IOS/ Android APP ►...
- Page 3 DIAGRAM Insert the memory card before using the camera Note: Please use a Class 10 high speed card, please format the memory card at FAT 32GB or above before using.
-
Page 4: Charging Instructions
Charging Instructions 1. Please fully charge the camera before using . 2. Connect the USB cable provide to an external 5V adapter, power bank or computer to the camera for charging. 3. While the camera is charging, the camera will automatically power on, If you do not need to use the camera while charging , please power off the camera , the red led light stays on. -
Page 5: Power On/Off
Power on / off 1. To pow er on t he cam er a , hol d and pr es s t he “② ” button for 3 seconds. The yellow led light will come on after the camera vibrates. 2. -
Page 6: Video Recording
Video Recording 1. Press and hold the “② ” button f or 3 s econds to power on the camera. The yellow LED light comes on after the camera vibrates. Press the “③” button once to start recording after it vibrates, recording is indicated with a flashing red led light. - Page 7 Turn on/off the indicator led light 1. Hold and press the “②” button for 3 seconds to power on the camera . The yellow led light will indicate after the camera vibrating. 2. Then hold the “①” button for 3 seconds , all indicators turn off after vibrating.
-
Page 8: App Download
APP Download Please download the “ 4k cam ” app before using the camera in wifi mode . 4K Cam App 4K Cam Download from App Store Download from Play Store ( IOS) ( Android ) 1. Scan the QR Code to download APP 2. -
Page 9: Wifi Mode
WIFI mode 1. Press and hold “②” button for 3 seconds to power on the camera . The yellow led light will indicate after the camera vibrating. 2. Hold the “③” button for 3 seconds. The camera will change to WIFI mode after vibrating. At this time, the blue indicator will flash slowly. - Page 10 4. Open the APP "4K CAM " to add the ca era device Click: “WIFI Connect” to add the camera into the app device listing. This APP can only add up to 3 cameras. Note: After connecting successful, the blue indicator will co e on.
- Page 11 About the APP Delete device Downloaded Downloaded Images Replay Videos Replay Exit Camera Settings...
- Page 12 Quantity of Resolution Electricity selection Memory Card Confirm Images/Videos Button Replay Shooting / Recording Switch Browse photos/ videos in memory card Click the share button to download the photos and videos on to you smart phone Camera settings Menu Note: In WIFI mode, The camera only allows shooting and recording on APP .
-
Page 13: Time Setting
Time setting 1. When you connect the camera to WIFI, the camera will automatically synchronize the phone system time. 2. Time does not need to be reset unless battery is exhausted. Media Playback There are three ways to view the videos and images . 1. -
Page 14: Product Specifications
Product specifications Lens angle: 75 ° Minimum 1 Lux illumination: Video format: Video compression H.264 (Advanced Edition) format: 4K25FPS:3840*2160; 2.7K30FPS:2720*1520; 1080P60FPS; Video resolution: 1808P30FPS; 720P120FPS; 720P60FPS Video frame rate: 25fps-120fps Photo format: Photo resolution: 30M.20M.14M.10M.7M.5M.4M Memory: Micro SD support 32 - 128GB USB interface: USB 2.0 Charging voltage:... -
Page 15: Camera Reset
Camera Reset Reset the camera when it does not operate normally , Use a pin to poke into the reset hole. Click the reset button one time. When the camera will powers off, the reset is done . Turn on the camera to operate it again. Troubleshooting Could not power on Low battery : Please fully... -
Page 16: Important Reminders
Precautions (1) When the device is under video recording status, the body will heat up, which is normal. To ensure heat dissipation, please use this device in the well ventilated environment. Do not wrap this device when in use. (2) Do not place the device in the damp working environment. The device is not waterproof. - Page 17 STILL HAVE QUESTIONS? Do NOT return your camera Please contact Zetronix first for additional assistance By Phone....877-644-7592 By Email..support@zetronix.com Live Chat with Zetronix 9AM-5PM EST Monday to Friday...
Need help?
Do you have a question about the TRURO PRO and is the answer not in the manual?
Questions and answers
Recording stops by itself within a minute or so. Plenty of battery life and plenty of room on the media card. This started happening recently. Please help.
The Zetronix TRURO PRO may stop recording by itself within a minute due to a low battery. The manual advises fully charging the battery or keeping the camera connected to a charger to prevent it from shutting off soon after turning on.
This answer is automatically generated
