Summary of Contents for Zetronix ATOM

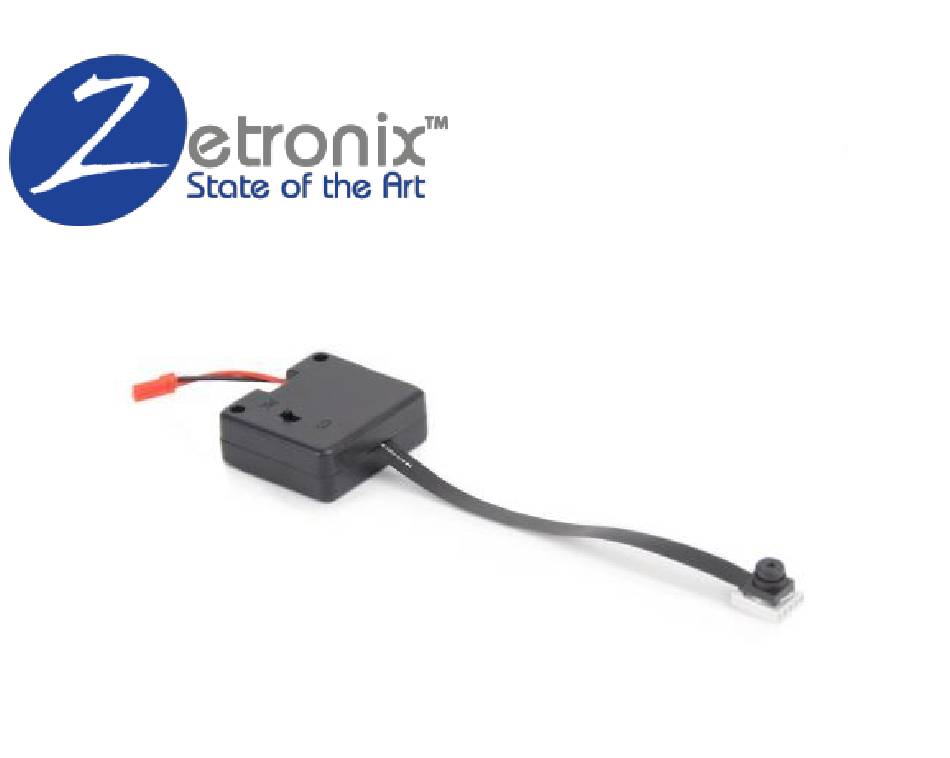

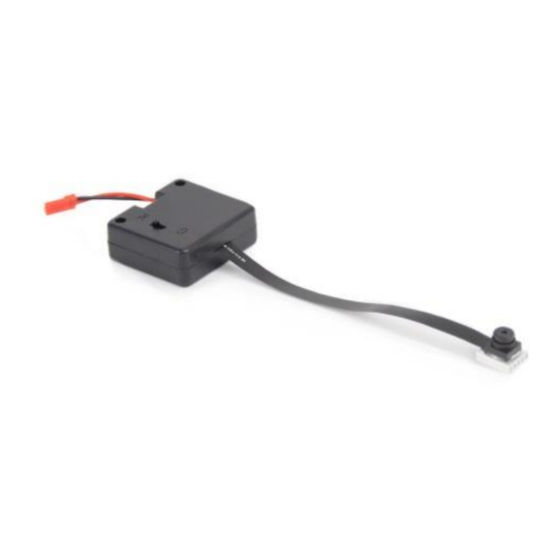

- Page 1 Self-Install ATOM Hidden Camera Kit USER MANUAL...
- Page 3 ❶ ❶ Camera ❷ Pinhole Function Button ❸ Function LED Indicator ❹ Battery Connector ❷ ❸ ❺ Memory Card Slot ❹ ❺ ❻ ❻ Recording Mode Switch ❼ On/Off Switch ❽ USB Power & Charge Port ❾ Charge LED Indicator ❼...
- Page 4 Date/Time Stamp Setup – 1/2 Setting the Date and Ti me stamp for your videos is easy. Zetronix provides an easy-to- use application for both Windows and Mac that will automatically help you set up the time stamp. It can be found at the following address.
- Page 5 Date/Time Stamp Setup – 2/2 On some systems you may get a warning during installation. This is normal. Simply click RUN ANYWA Y and continue. On an Apple computer you may get a similar warning. Go into CONTROL PANEL and choose SECURITY. UNLOCK the security settings and choose ALLOW ALL Once you have installed the program, make sure you turn SECURITY...
-
Page 6: Operation
Operation – 1/2 Continuous Recording Mode 1. Connect the battery to the battery connector ❹ 2. Insert a Micro SD memory card into the card slot ❺ 3. Switch the Recording Mode Switch ❻ to the "C" position. 4. Place the On/Off switch ❼ to the “ On” position. The function LED indicator ❸... - Page 7 To resume recording, press the function button ❷ again. The LED will blink blue twice and turn off to indicate that it is recording again.
- Page 8 Operation – 2/2 Motion Detection Recording Mode 1. Connect the battery to the battery connection ❹ 2. Insert a Micro SD memory card into the card slot ❺ 3. Switch the Recording Mode Switch ❻ to the "M" position. 4. Place the On/Off switch ❼ to the “ On” position. The LED indicator ❸...
- Page 9 Formatting Memory on a PC/Windows - 1/2 Formatting the memory card deletes all files and may fix recording issues caused by memory corruption. Locate your hard drive directory. It will be under “My Computer” or “This PC”. You can also open a new File Explorer window and your drives will be listed there.
- Page 10 Formatting Memory on a PC/Windows - 2/2 From the options shown, make sure that you have selected FAT32 other as your file system. Leave settings at their defaults. Click Start. WARNING: Any files on your card will be lost including your time- stamp settings.
- Page 11 Formatting Memory on a Mac/iOS – 1/2 Formatting the memory card deletes all files and may fix recording issues caused by memory corruption. Locate and open a program called “ Disk Utility”. It is usually found going into the application and opening the utility folder folder.
- Page 12 Formatting Memory on a Mac/iOS – 2/2 Disk Utility, Select your camera removable drive from the list on the left. From the options on the right click the menu button labeled (highlighted in blue below) From the dropdown menu labeled Er ase choose MS-DOS (FAT).
-
Page 13: Video Playback
Video Playback Videos can be revie wed and copied to a hard drive removing the micro SD card from the camera and inserting into a computer. It will come up as a removable drive and all the files can be accessed opening the folder named "DCIM': ound For playback we currently recommend a free program called VLC Player f... -
Page 14: Battery Charging
Battery Charging 1. Connect the battery to the battery connection ❹ 2. Connect the included USB cable to the USB port ❽ 3. Connect the other end of the USB cable to the USB wall charger and plug in the charger to an A/C outlet. A full charge may take anywhere from 1 to 6 hours. -
Page 15: Device Specifications
Device Specifications Sensor 2 Megapixel CMOS Video Resolution 1920x1080 Compression Format h.264 Video Format .MOV Frame Rate 30 FPS Camera Angle 90 Degrees Max Memory 64GB... - Page 16 Still Have Questions? Do not return your camera For additional assistance contact Zetronix Tech Support Phone••••••••••••••••••••••••• 877-644-7592 Email•••••••••••••••••support@Zetronix.com Live Chat at Zetronix.com 9AM-5PM EST Monday to Friday...
- Page 17 (1) year from the date of original purchas e in the event of a defect in materials or w orkmanship. REP AIRS: Zetronix w ill repair or replac e defec tive parts us ed in the repair or replac ement of this produc t w ith...
- Page 18 (1) year from the date of origina l purchas e in the event of a defect in materials or w orkmanship. REP AIRS: Zetronix w ill repair or replac e defec tive parts us ed in the repair or replac ement of this product w ith...
- Page 19 Zetronix. This warranty is invalid if the factory-applied serial number has been altered or removed from the product.
- Page 20 ©2018 Zetronix Corp. ©2018 Zetronix Corp.
