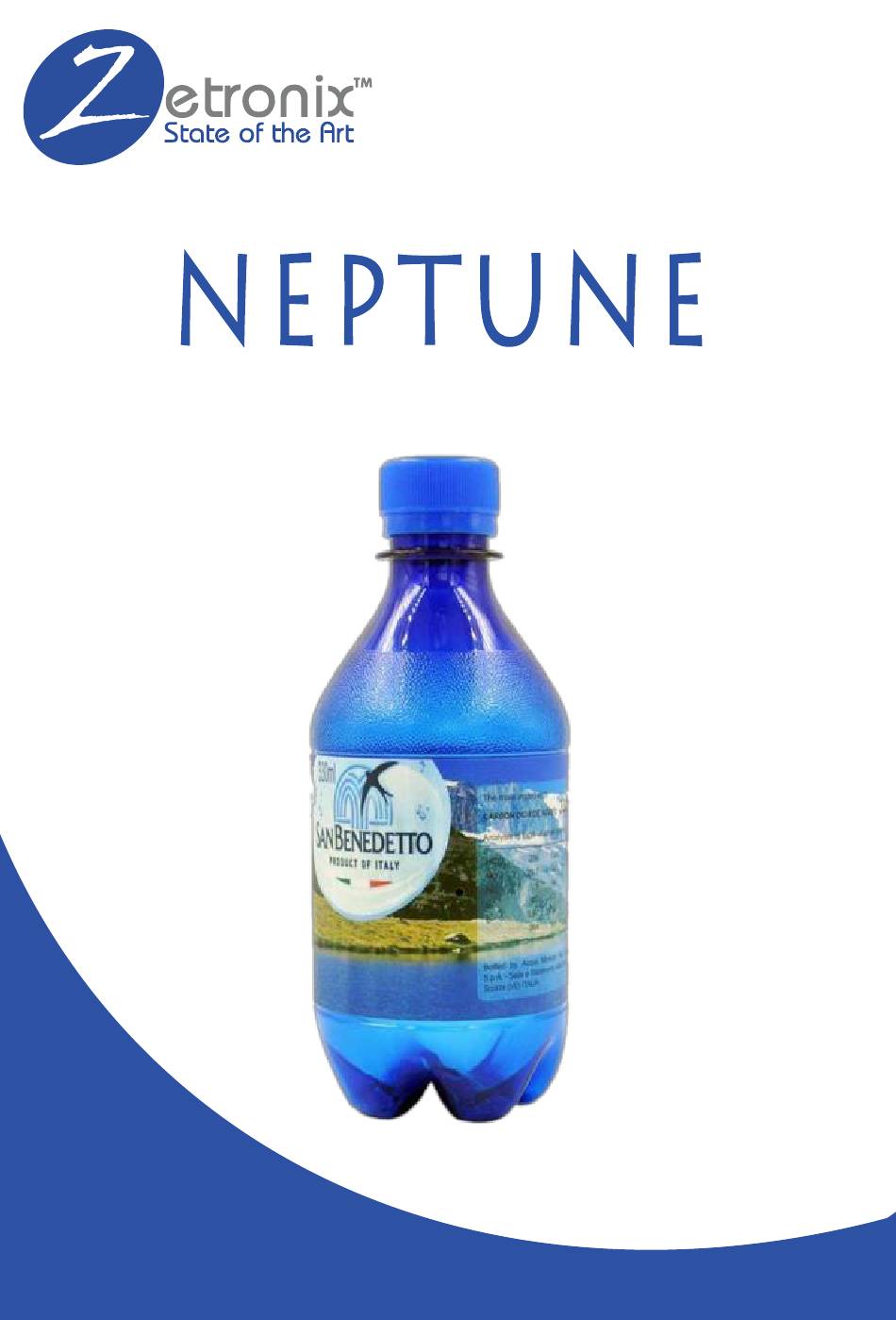

- Page 1 HIDDEN CAMERA BOTTLE MANUAL...
- Page 2 MA N UA...
- Page 3 Contents In the Box Page 1 Diagram Page 2 Getting Started Page 3 Camera Operation Page 7 Media Playback Computer Page 8 Date & Time Stamp Settings Page 9 Troubleshooting Page 10 Formatting on PC Page 11 Formatting on Mac Page 13 Product Specifications Page 15...
- Page 4 1x Bottle 1x USB cable 1x Extra Labels 1x This Manual 1X Camera Device Page 1...
- Page 5 ❶ Micro USB Card Slot ❹ USB Port ❷ Reset pinhole ❺ Function Button ❸ Hidden blue Light ❻ Camera Lens Page 2...
- Page 6 Charge the Camera Device Please fully charge the camera before operation. Connect the included USB cable (B) to an USB AC Charger, and to the bottle Camera Device’s USB Port ❹. While charging the blue light will blink ❸ slowly. Once fully charged the light will stay on solid.
- Page 7 Push the card all the way into the card slot ❶ until you feel a click. You may have to use your fingernail or a small tool. Notch To remove the card, simply push it further in again so it toggles back out. Page 4...
- Page 8 Hide the Camera Place the camera device in the bottle’s depression; Ensure the function button ❺ is towards the top of the bottle. Button Next use one of the included labels (C) to wrap it around the bottle while holding the camera device in place.
- Page 9 Make sure the hole on the label lines up with the camera lens ❻. Camera Hole Since the function ❺ Function button will be hidden Button behind the label, you will have to poke around about half inch above the camera hole until you feel it click.
- Page 10 Turning the camera ON/OFF. To turn on the camera device, press and hold the Function Button ❺ for 3 seconds. The Blue light ❸ will come on indicating the camera is on stand -by. To turn off the device, simply press and hold the Function button ❺...
- Page 11 To view the recorded videos, connect the Camera Device to your computer by connecting the included USB cable (B) to the Camera’s USB port ❹ and your computer’s USB port. In 30 seconds your computer should prompt you with options for viewing the files.
- Page 12 To update or remove the video date/time stamp watermark on the video recording, please download the zUtility App from the Zetronix website. https://www.zetronix.com/download After downloading and installing the App, you will be prompted to choose the device. From here choose the zBottle, choose Time/date Setup and follow the on-screen instructions.
- Page 13 Most issues can be solved by formatting the memory card or by resetting the camera Formatting the memory: WARNING: formatting the memory will wipe out all the recorded media previously stored. Formatting the memory will clean up any file corruption that may exist preventing the device from operating correctly.
- Page 14 First ensure that the memory card is in the camera device, connect the camera to your PC as instructed on page 8 of this manual. Locate your hard drive directory. It will be under “My Computer” or “This PC”. You can also open a new File Explorer window and your drives will be listed there.
- Page 15 From the options shown, make sure that you have selected FAT32 as your file system. Leave other settings at their defaults. Click Start. After a few seconds the memory will be formatted. Page 12...
- Page 16 First ensure that the memory card is in the camera device, connect the camera to your Computer as instructed on page 8 of this manual. Locate and open a program called “Disk Utility”. It is usually found by going into the application folder and opening the utility folder.
- Page 17 In Disk Utility, Select the drive from the list on the left. Most likely named “NO NAME”. Along the top of the window menu, click on the button labeled Erase (highlighted in the square above) From the dropdown menu labeled Format, choose MS-DOS (FAT).
- Page 18 Item Parameter Sensor 2 Megapixel Video Resolution 1920x1080 Video Format Frame Rate 30 FPS 64GB MicroSD Me mory Ca pacity USB type Micro USB / USB 2.0 Mobile OS Support Android / iOS Desktop OS Winsows 7,8,10/Mac OS X Page 15...
-
Page 19: 1-Year Limited Warranty
Zetronix Corporation ("Zetronix") warrants this product against defects in material or workmanship as follows: PRODUCT: Zetronix will repair this product with new or refurbished parts, free of charge, for a period of one (1) year from the date of original purchase in the event of a defect in materials or workmanship. - Page 20 PRODUCT: Zetronix will repair this product with new or refurbished parts, free of charge, for a period of one (1) year from the date of original purchase in the event of a defect in materials or workmanship.
- Page 21 Still Have Questions? 9AM-5PM EST Page 18...
- Page 22 Page 19...
- Page 23 Page 20...
- Page 24 ©2018 Zetronix Corp. Page 21...
