Summary of Contents for BKI SM-24

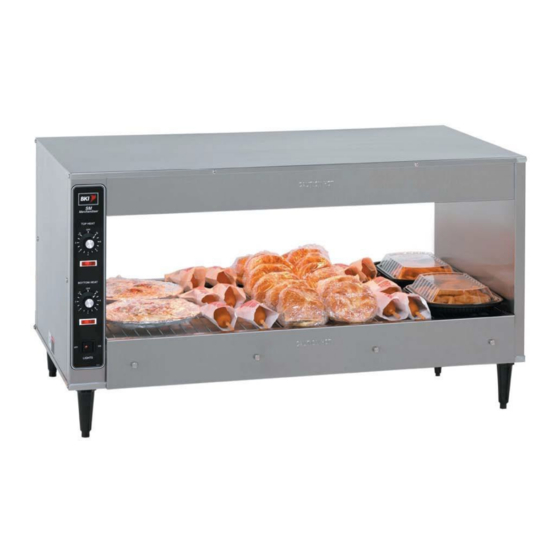

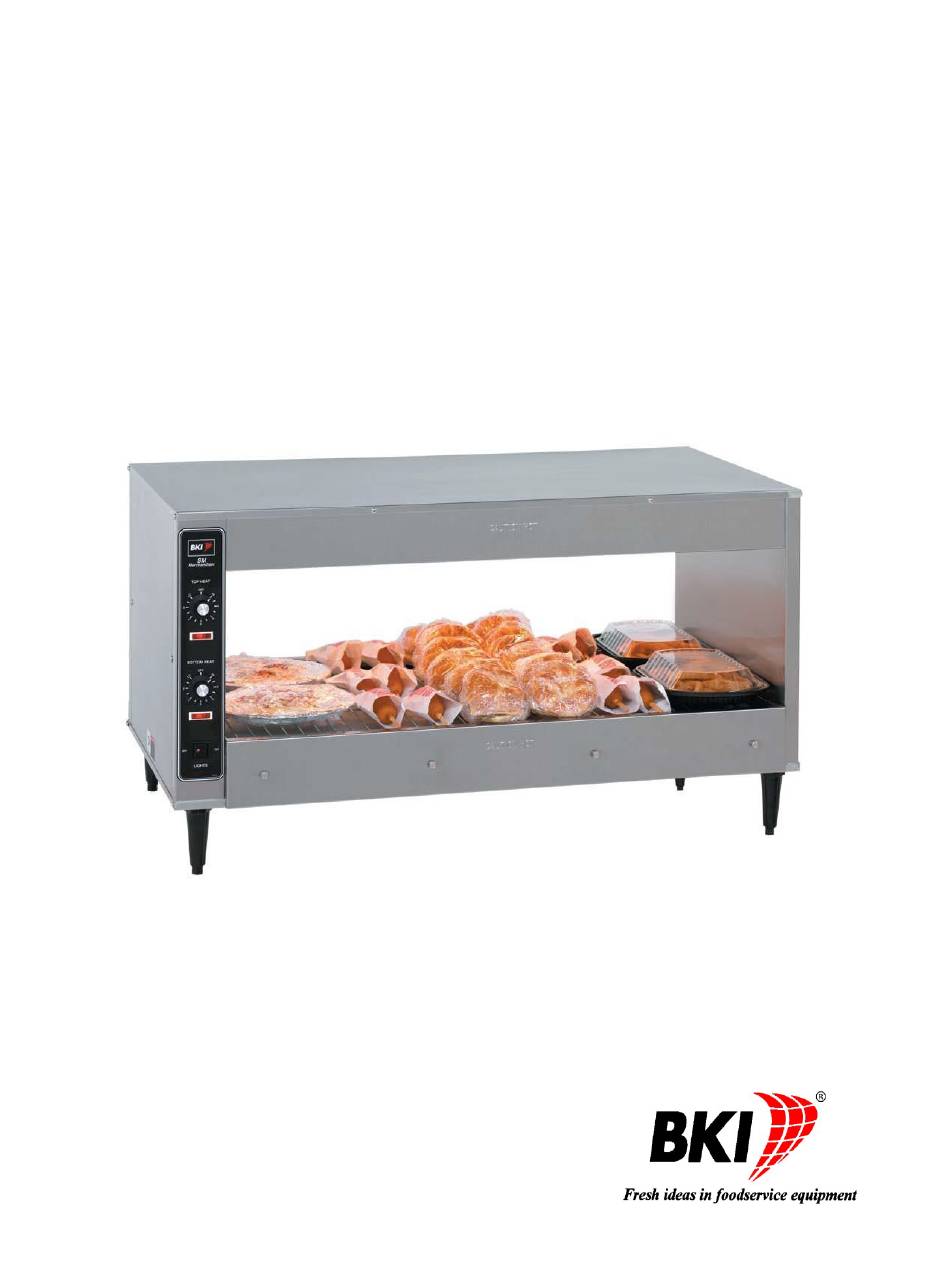

- Page 1 MODE D’EMPLOI Sandwich Merchandiser MODÈLES SM-24, SM-27, SM-27-2L, SM-39, SM-51, SM- 63, SM-72, SM-75 Date de fabrication Avril, 2019 et au-delà SS-OM-028F.02 Revised 9/2/2020...
- Page 2 PIÈCES DE RECHANGE Les pièces FEO de l'usine BKI bénéficient d'une garantie de 90 jours sur les matériaux à partir de la date de l'installation par un centre de service agréé par l'usine BKI.
-
Page 3: Table Of Contents
Instructions for Shipping Damage .......................... 6 Electrical Information and Grounding ........................6 Important Installation Instructions .......................... 6 Operation ................................... 7 Models SM-24, SM-27, SM-39, SM-51, SM-63, SM-72, SM-75 ................7 Controls and Indicators ............................7 Unit Startup and Preheating..........................8 Unit Shutdown ..............................8 Model SM27-2L .............................. -
Page 4: Introduction
BKI. The BKI name and trademark on this unit assures you of the finest in design and engineering — that it has been built with care and dedication — using the best materials available. Attention to the operating instructions regarding proper installation, operation, and maintenance will result in long lasting dependability to insure the highest profitable return on your investment. -
Page 5: Pratiques D'interventions Sûres
étiquettes de sécurité sur cette unité. Si vous avez besoin d'étiquettes de sécurité neuves, obtenir le numéro de l'étiquette illustrée à la page 6, puis téléphoner au service technique BKI (802) 658- 6600.. En cas d'urgence Il est nécessaire de se préparer aux incendies, blessures et autres urgences... -
Page 6: Étiquettes De Sécurité
Sandwich Merchandiser Introduction Étiquettes de sécurité Models SM-24, SM-27, SM-39, SM-51, SM-63, SM-72, SM-75... - Page 7 Sandwich Merchandiser Introduction Model SM27-2L...
-
Page 8: Installation
This unit, when installed by an authorized BKI service agent, must be wired for use in accordance with all applicable local, state, and federal codes. For specific electrical requirements and connections refer to the wiring diagram attached to the unit or provided in the Service Manual. -
Page 9: Operation
Sandwich Merchandiser Operation Operation Models SM-24, SM-27, SM-39, SM-51, SM-63, SM-72, SM-75 Controls and Indicators... -
Page 10: Unit Startup And Preheating
Sandwich Merchandiser Operation Item # Description Function TOP HEAT temperature Controls the temperature of the ceramic heaters. control TOP HEAT pilot light Cycles on and off to indicate when the ceramic heaters turn on and off. BOTTOM HEAT Controls the temperature of the heating element. temperature control BOTTOM HEAT pilot light Cycles on and off to indicate when the heating element turns on and... -
Page 11: Model Sm27-2L
Sandwich Merchandiser Operation Model SM27-2L Controls and Indicators... -
Page 12: Unit Startup And Preheating
Sandwich Merchandiser Operation Item # Description Function Upper Sandwich Warmer Controls the temperature of the Upper Sandwich Warmer ceramic TOP HEAT temperature heaters. control Upper Sandwich Warmer Cycles on and off to indicate when the Upper Sandwich Warmer TOP HEAT pilot light ceramic heaters turn on and off. -
Page 13: Temperature Adjustment
Sandwich Merchandiser Operation Temperature Adjustment After loading the unit with product, it may be necessary to adjust the temperature control knobs in order to maintain the proper internal temperature for the product on display. The temperature control knobs should be set to the lowest possible number that will maintain the proper product temperature. -
Page 14: Maintenance
Sandwich Merchandiser Maintenance Maintenance Le non-respect de l’entretien indiqué ci-dessous pourrait donner lieu à un accident grave ATTENTION ou endommager l’équipement. Il pourrait y avoir électrocution, défaillance du matériel ou dégâts matériels si l’installation électrique est faite par un électricien non agréé. Veillez à ce qu’un électricien agréé effectue l’installation conformément aux codes national et local. -
Page 15: Troubleshooting
Product temperature is Make sure product is above 160° F when loaded. temperature too low when loaded. Faulty component in Contact an authorized BKI service agent for heating circuit corrective action. Unit is not heating No power to unit Make sure power cords are connected and circuit breaker is on. -
Page 16: Notes
Sandwich Merchandiser Notes Notes... - Page 17 Sandwich Merchandiser Notes...
- Page 18 42 Allen Martin Drive, Essex Junction, VT 05495, USA http://www.bkideas.com Made and printed in the U.S.A...
