Warranty Information LIMITED ONE YEAR WARRANTY BKI (The “Company”) warrants to the original purchaser/user, that at time of shipment from the Company factory, this equipment will be free from defect in materials and workmanship. Written notice of a claim under this Warranty must be given within ONE YEAR AND THREE MONTHS from date of shipment from the factory.

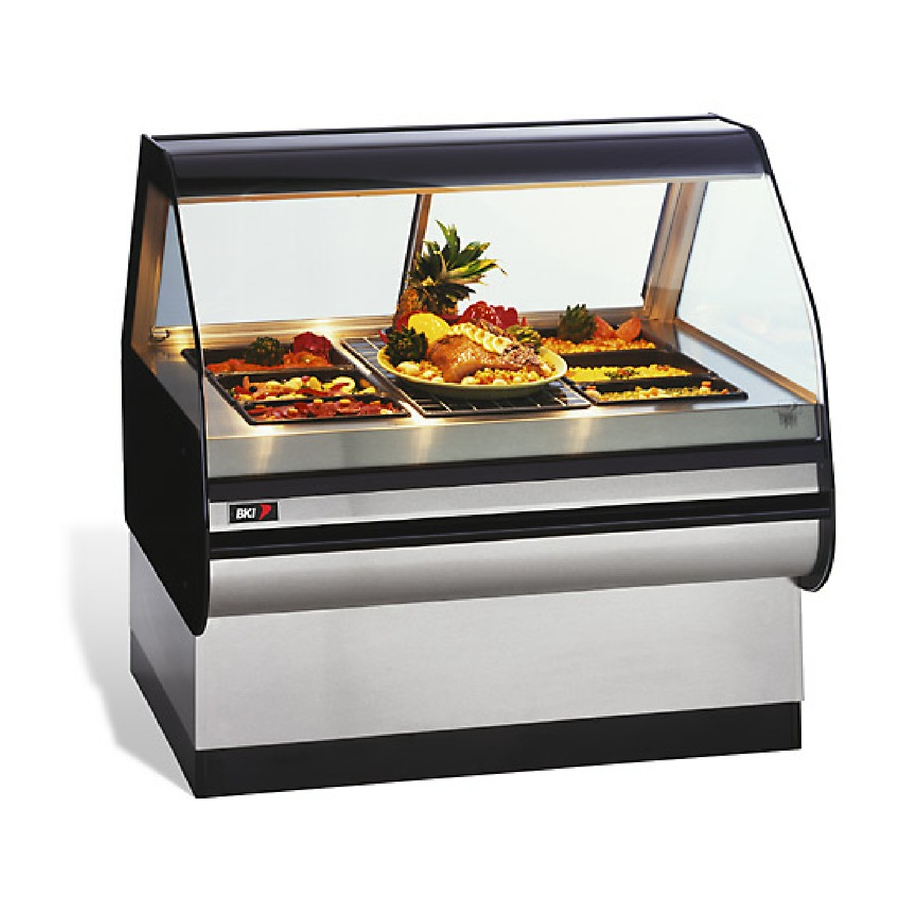

Hot Food Deli Case Congratulations! You have chosen a Hot Food Deli Case that will give you many years of fine service from the original manufacturer, BKI. The BKI name and trademark on this unit assures you of the finest in design and engineering -- that it has been built with care and dedication -- using the best materials available.
Hot Food Deli Case Specific Precautions Equipotential Ground Plane When a high current flows through a conductor, differences in potential appear between the conductor and nearby metallic surfaces near the appliance. As a result, sparks may be produced between the appliance and surrounding metal surfaces.
Page 6
Hot Food Deli Case Keep Safety Labels Clean and in Good Condition Do not remove or cover any safety labels on your equipment. Keep all safety labels clean and in good condition. Replace any damaged or missing safety labels. If you need new safety labels, contact: Technical Services Department P.O.
Hot Food Deli Case Controls and Indicators The deli case controls are shown in the figure below. The pushbutton switches turn the power supply to the case on and off. The touchscreen interface is used to operate the case and display temperatures. Hardware Controls Item # Description...
Hot Food Deli Case Operation Software Controls - Default Screen Menu Button The Default Screen appears on the touchscreen during normal operation. The screen shows the menu button and a representive temperature. The representative temperature does not correspond to the internal temperature of the food products in the case.
Hot Food Deli Case Operation Software Controls - Programming the Menu Button Controller There is a unique set of touches to enter the programming mode. This prevents the case settings from being inadvertently changed. Enter the programming mode from the Default Screen by touching the lower left of the touchscreen, then the lower right and then the Menu Button [M] in that order.
Hot Food Deli Case Operation Preheating You should allow the equipment to preheat at the programmed temperature settings for a minimum of 30 minutes before loading it with product. For initial start up, program the controller for each well and upper heater to a setting of 5.
Hot Food Deli Case Unpacking and Handling YOU are responsible for filling all freight claims with the delivering truck line. Inspect all cartons and crates for damage as soon as they arrive. If damage to cartons or crates is found, or if a shortage is found, note this on the bill of lading (all copies) prior to signing.
Hot Food Deli Case 1. Level the case using the leg levelers at the corners of the case (Figure 1). 2. Raise the low end of the case to level it, do not lower the high end. 3. Check for level side-to-side and front-to-back. 4.
Hot Food Deli Case End Panel Mounting 1. Now, attach the End Trim Panels to the base ends. The studs on the Trim Panels pass through the mounting holes in the base ends (see Figure 2). Both End Trim Panels are the same. 2.
Hot Food Deli Case Pedestal Model Pedestal mounted cases are provided with a mounting frame that runs the full length of the case. This allows the pedestals to be located at any point along the length of the case. Each case should be supported by at least two pedestals.
Hot Food Deli Case 7. Proceed in the same manner until all the cases in the line are level and bolted together. 8. Complete the line up by slipping the Counter Top Joint Cover over the ends flanges of the adjoining counter tops.
Hot Food Deli Case Installation Counter Model Counter Mounted cases must be mounted on a level surface that can support the weight of the case and it contents. Use a carpenter’s level as shown in Figure 3 to level the case. These cases are to be sealed to the counter if required by local health codes.
Hot Food Deli Case Case Joining Trim 1. After leveling the cases and bolting the bases together, bolt the canopies together as shown in Fig. 6 with a ¼”-20 x ¾” Hex Head Screw and Keps Nut. 2. Mount the Upper Front & Base Front Joint Trims by holding them in place and marking the hole locations on the case.
Hot Food Deli Case Failure to comply with the maintenance below could result in a serious accident. Electrocution, equipment failure or property damage could result if an unlicensed electrician performs electrical repair. Ensure that a licensed electrician perform electrical repair. Scheduled Maintenance Use the following table to help manage scheduled maintenance activities.
Hot Food Deli Case Troubleshooting Refer to the table below for troubleshooting information. Problem Electrical No Heat Holding Temperature Not Adequate Cause Possible Solution No Power to the case. Check circuit breaker or fuses at building power panel. If problem persists, contact an authorized BKI service agent for corrective action.
