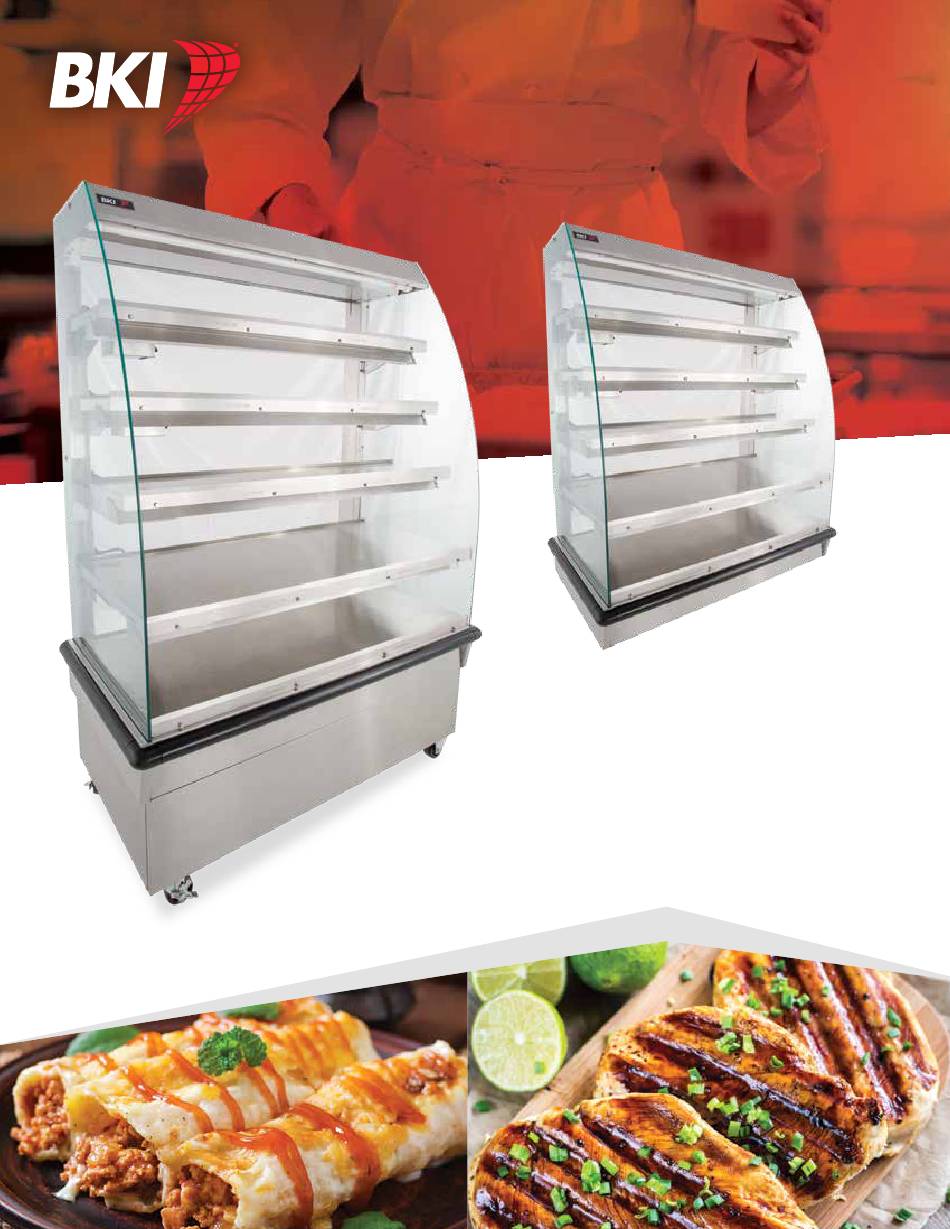

- Page 1 Multi-Shelf Merchandiser Series SERIES: MDW Operation Manual...
- Page 2 Warranty is in lieu of all other warranties, expressed or implied, and all other obligations or liabilities on the manufacturer’s part. BKI shall in no event be liable for any special, indirect or consequential damages, or in any event for damages in excess of the purchase price of the unit.
-
Page 3: Table Of Contents
Replacement Parts ..................Error! Bookmark not defined. Shelf and Lights ..................Error! Bookmark not defined. Switch Plate ....................Error! Bookmark not defined. Ballasts ..................... Error! Bookmark not defined. Wiring Diagrams ............................13 BKI Worldwide is a wholly owned subsidiary of Standex International Corporation. SS-OM-002.03 Revised 10/16/18... -
Page 4: Introduction
This unit is manufactured by BKI which assures you of the finest in design and engineering -- that it has been built with care and dedication -- using the best materials available. Attention to the operating instructions regarding proper installation, operation, and maintenance will result in long lasting dependability to insure the highest profitable return on your investment. -
Page 5: Safe Work Practices
Multi-Deck Warmer Safe Work Practices California Residents Only. This product can expose you to chemicals including chromium, and lead which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov. - Page 6 Multi-Deck Warmer Know your responsibilities as an Employer • Make certain your employees know how to operate the equipment. • Make certain your employees are aware of the safety precautions on the equipment and in this manual. • Make certain that you have thoroughly trained your employees about operating the equipment safely.
-
Page 7: Operation
Multi-Deck Warmer Operation Controls and Indicators SHELF THERMOSTAT SOLID BACK UNITS - ACCESS FROM FRONT PASS-THRU UNITS - ACCESS FROM BACK POWER LIGHTS POWER & LIGHT SWITCH PLATE SOLID BACK UNITS - LOCATED ON FRONT PASS-THRU UNITS - LOCATED ON BACK Figure 1 Hardware Controls Item #... -
Page 8: Shelf Temperature
Multi-Deck Warmer Shelf Temperature The temperature of the shelves is controlled by thermostats on each shelf and on the base of the unit (see Figure 1). Set each shelf thermostat on “7” for the initial start up of the unit. Power Up and Preheating 1. -
Page 9: Installation
Multi-Deck Warmer Installation Unpacking and Handling YOU are responsible for filling all freight claims with the delivering truck line. Inspect all cartons and crates for damage as soon as they arrive. If damage to cartons or crates is found, or if a shortage is found, note this on the bill of lading (all copies) prior to signing. - Page 10 Multi-Deck Warmer Figure 2 SS-OM-002.03 Revised 10/16/18...
-
Page 11: Counter Model
Multi-Deck Warmer Counter Model Counter mounted units must be mounted on a level surface that can support the weight of the unit and its contents. Use a carpenter’s level to level the unit. These units are to be sealed to the counter if required by local health codes. Seal the perimeter of the units to the counter using a silicone-type sealant (Dow Corning RTV #732 or equivalent). - Page 12 Multi-Deck Warmer WIDTH + 1/2 in [13 mm] 9 in 10 5/8 in [229 mm] [269 mm] 50 1/8 in [1273 mm] 65 3/16 in 10 1/2 in Counter [1655 mm] [266 mm] Model Floor Model 10 5/16 in 20 5/8 in 20 5/8 in [263 mm] 10 5/8 in...
-
Page 13: Maintenance
Multi-Deck Warmer Maintenance Failure to comply with the maintenance below could result in a serious accident. Electrocution, equipment failure or property damage could result if an unlicensed electrician performs electrical repair. Ensure that a licensed electrician performs electrical repair. Scheduled Maintenance Use the following table to help manage scheduled maintenance activities. -
Page 14: Troubleshooting
No Power to the unit. Check circuit breaker or fuses at building power panel. If problem persists, contact an authorized BKI service agent for corrective action. Power switch is OFF and Lights Place the Power circuit breaker circuit breaker is OFF. -
Page 15: Wiring Diagrams
Multi-Deck Warmer Wiring Diagrams Refer to the table below to find the wiring diagram associated with your unit. Model Drawing # Page # MDW36-3C SB68694600 MDW36-3V SB68694700 MDW36-3VW SB68694800 MDW36-4C SB68694300 MDW36-4V SB68694400 MDW36-4VW SB68694500 MDW36-5C SB68694000 MDW36-5V SB68694100 MDW36-5VW SB68694200 MDW48-3C SB68693600... - Page 16 Multi-Deck Warmer MDW36-3C COMPONENT LEGEND Description Part No. B0084 BALLAST, T8, 120V-240V CB0065 CIRCUIT BREAKER, 2P EB68692700 CORDSET, 250V (USA) EB68692800 CORDSET, 120V (USA) HEATER, 20"x36", 120V C0172 HEATER, 20"x36", 208V C0763 C0762 HEATER, 20"x36", 230V C0175 HEATER, 10"x36", 120V C0176 HEATER, 10"x36", 208V HEATER, 10"x36", 230V...
- Page 17 Multi-Deck Warmer MDW36-3V COMPONENT LEGEND Description Part No. BALLAST, T8, 120V-240V B0084 CIRCUIT BREAKER, 2P CB0065 EB68692700 CORDSET, 250V (USA) EB68692800 CORDSET, 120V (USA) C0175 HEATER, 10"x36", 120V C0176 HEATER, 10"x36", 208V HEATER, 10"x36", 230V C0177 LAMP, SHATTER-PROOF FL0041 SHROUD, T8 LAMP MA68653400 PROBE, 3"...
- Page 18 Multi-Deck Warmer MDW36-3WV COMPONENT LEGEND Description Part No. BALLAST, T8, 120V-240V B0084 CB0065 CIRCUIT BREAKER, 2P EB68692700 CORDSET, 250V (USA) EB68692800 CORDSET, 120V (USA) C0172 HEATER, 20"x36", 120V C0763 HEATER, 20"x36", 208V HEATER, 20"x36", 230V C0762 LAMP, SHATTER-PROOF FL0041 SHROUD, T8 LAMP MA68653400 T0174 PROBE, 3"...
- Page 19 Multi-Deck Warmer MDW36-4C COMPONENT LEGEND Description Part No. B0084 BALLAST, T8, 120V-240V CIRCUIT BREAKER, 2P CB0065 EB68692700 CORDSET, 250V (USA) CORDSET, 120V (USA) EB68692800 HEATER, 20"x36", 120V C0172 HEATER, 20"x36", 208V C0763 HEATER, 20"x36", 230V C0762 HEATER, 10"x36", 120V C0175 HEATER, 10"x36", 208V C0176 HEATER, 10"x36", 230V...
- Page 20 Multi-Deck Warmer MDW36-4V COMPONENT LEGEND Description Part No. BALLAST, T8, 120V-240V B0084 CIRCUIT BREAKER, 2P CB0065 CORDSET, 250V (USA) EB68692700 CORDSET, 120V (USA) EB68692800 HEATER, 10"x36", 120V C0175 C0176 HEATER, 10"x36", 208V C0177 HEATER, 10"x36", 230V FL0041 LAMP, SHATTER-PROOF MA68653400 SHROUD, T8 LAMP T0174 PROBE, 3"...
- Page 21 Multi-Deck Warmer MDW36-4WV COMPONENT LEGEND Part No. Description B0084 BALLAST, T8, 120V-240V CIRCUIT BREAKER, 2P CB0065 EB68692700 CORDSET, 250V (USA) HEATER, 20"x36", 208V C0763 HEATER, 20"x36", 230V C0762 LAMP, SHATTER-PROOF FL0041 SHROUD, T8 LAMP MA68653400 T0174 PROBE, 3" THERMISTOR S0356 SWITCH, ROCKER, DPST T0109 THERMOSTAT, 150F-250F...
- Page 22 Multi-Deck Warmer MDW36-5C COMPONENT LEGEND Description Part No. B0084 BALLAST, T8, 120V-240V CB0065 CIRCUIT BREAKER, 2P EB68692700 CORDSET, 250V (USA) C0763 HEATER, 20"x36", 208V HEATER, 20"x36", 230V C0762 HEATER, 10"x36", 208V C0176 HEATER, 10"x36", 230V C0177 FL0041 LAMP, SHATTER-PROOF MA68653400 SHROUD, T8 LAMP T0174 PROBE, 3"...
- Page 23 Multi-Deck Warmer MDW36-5V COMPONENT LEGEND Description Part No. B0084 BALLAST, T8, 120V-240V CB0065 CIRCUIT BREAKER, 2P EB68692700 CORDSET, 250V (USA) EB68692800 CORDSET, 120V (USA) C0175 HEATER, 10"x36", 120V HEATER, 10"x36", 208V C0176 HEATER, 10"x36", 230V C0177 LAMP, SHATTER-PROOF FL0041 MA68653400 SHROUD, T8 LAMP T0174 PROBE, 3"...
- Page 24 Multi-Deck Warmer MDW36-5WV COMPONENT LEGEND Description Part No. BALLAST, T8, 120V-240V B0084 CIRCUIT BREAKER, 2P CB0065 EB68692700 CORDSET, 250V (USA) C0763 HEATER, 20"x36", 208V C0762 HEATER, 20"x36", 230V FL0041 LAMP, SHATTER-PROOF MA68653400 SHROUD, T8 LAMP T0174 PROBE, 3" THERMISTOR S0356 SWITCH, ROCKER, DPST T0109 THERMOSTAT, 150F-250F...
- Page 25 Multi-Deck Warmer MDW48-3C COMPONENT LEGEND Description Part No. B0084 BALLAST, T8, 120V-240V CB0065 CIRCUIT BREAKER, 2P EB68692700 CORDSET, 250V (USA) EB68692800 CORDSET, 120V (USA) C0173 HEATER, 20"x48", 120V HEATER, 20"x48", 208V C0764 HEATER, 20"x48", 230V C0765 C0174 HEATER, 10"x48", 120V C0171 HEATER, 10"x48", 208V C0178...
- Page 26 Multi-Deck Warmer MDW48-3V COMPONENT LEGEND Description Part No. B0084 BALLAST, T8, 120V-240V CB0065 CIRCUIT BREAKER, 2P EB68692700 CORDSET, 250V (USA) EB68692800 CORDSET, 120V (USA) C0174 HEATER, 10"x48", 120V C0171 HEATER, 10"x48", 208V HEATER, 10"x48", 230V C0178 LAMP, SHATTER-PROOF FL0042 MA68653400 SHROUD, T8 LAMP T0174 PROBE, 3"...
- Page 27 Multi-Deck Warmer MDW48-3WV COMPONENT LEGEND Description Part No. BALLAST, T8, 120V-240V B0084 CB0065 CIRCUIT BREAKER, 2P EB68692700 CORDSET, 250V (USA) C0764 HEATER, 20"x48", 208V C0765 HEATER, 20"x48", 230V LAMP, SHATTER-PROOF FL0042 SHROUD, T8 LAMP MA68653400 T0174 PROBE, 3" THERMISTOR S0356 SWITCH, ROCKER, DPST T0109 THERMOSTAT, 150F-250F...
- Page 28 Multi-Deck Warmer MDW48-4C COMPONENT LEGEND Description Part No. BALLAST, T8, 120V-240V B0084 CIRCUIT BREAKER, 2P CB0065 EB68692700 CORDSET, 250V (USA) C0764 HEATER, 20"x48", 208V C0765 HEATER, 20"x48", 230V C0171 HEATER, 10"x48", 208V HEATER, 10"x48", 230V C0178 LAMP, SHATTER-PROOF FL0042 SHROUD, T8 LAMP MA68653400 PROBE, 3"...
- Page 29 Multi-Deck Warmer MDW48-4V COMPONENT LEGEND Part No. Description B0084 BALLAST, T8, 120V-240V CB0065 CIRCUIT BREAKER, 2P EB68692700 CORDSET, 250V (USA) EB68692800 CORDSET, 120V (USA) HEATER, 10"x48", 120V C0174 HEATER, 10"x48", 208V C0171 HEATER, 10"x48", 230V C0178 LAMP, SHATTER-PROOF FL0042 SHROUD, T8 LAMP MA68653400 T0174 PROBE, 3"...
- Page 30 Multi-Deck Warmer MDW48-4WV COMPONENT LEGEND Description Part No. B0084 BALLAST, T8, 120V-240V CB0065 CIRCUIT BREAKER, 2P EB68692700 CORDSET, 250V (USA) C0764 HEATER, 20"x48", 208V C0765 HEATER, 20"x48", 230V FL0042 LAMP, SHATTER-PROOF SHROUD, T8 LAMP MA68653400 PROBE, 3" THERMISTOR T0174 S0356 SWITCH, ROCKER, DPST T0109 THERMOSTAT, 150F-250F...
- Page 31 Multi-Deck Warmer MDW48-5C COMPONENT LEGEND Description Part No. BALLAST, T8, 120V-240V B0084 CIRCUIT BREAKER, 2P CB0065 EB68692700 CORDSET, 250V (USA) C0764 HEATER, 20"x48", 208V C0765 HEATER, 20"x48", 230V HEATER, 10"x48", 208V C0171 HEATER, 10"x48", 230V C0178 LAMP, SHATTER-PROOF FL0042 SHROUD, T8 LAMP MA68653400 PROBE, 3"...
- Page 32 Multi-Deck Warmer MDW48-5V COMPONENT LEGEND Description Part No. BALLAST, T8, 120V-240V B0084 CIRCUIT BREAKER, 2P CB0065 EB68692700 CORDSET, 250V (USA) C0171 HEATER, 10"x48", 208V C0178 HEATER, 10"x48", 230V FL0042 LAMP, SHATTER-PROOF MA68653400 SHROUD, T8 LAMP T0174 PROBE, 3" THERMISTOR S0356 SWITCH, ROCKER, DPST THERMOSTAT, 150F-250F T0109...
- Page 33 Multi-Deck Warmer MDW48-5WV COMPONENT LEGEND Part No. Description B0084 BALLAST, T8, 120V-240V CB0065 CIRCUIT BREAKER, 2P EB68692700 CORDSET, 250V (USA) HEATER, 20"x48", 208V C0764 HEATER, 20"x48", 230V C0765 LAMP, SHATTER-PROOF FL0042 SHROUD, T8 LAMP MA68653400 T0174 PROBE, 3" THERMISTOR S0356 SWITCH, ROCKER, DPST T0109 THERMOSTAT, 150F-250F...
