- Page 1 Anemometer AM706-H Operation & Installation Manual Document： NLT-AM706-SSEN Edition： V190314 Website:www.ninglutech.com...
- Page 2 * * * * * * Quick Operating Guide [Mode]： Relative speed/direction + True speed/direction mode Relative speed/direction + Max speed + Average speed mode [MENU] ： Set Wind Alarm, Speed Unit, Avg Time, Input Show, Language, Back Color and Dig Color.
-
Page 3: Table Of Contents
Contents Introduction ..............1 System Composition ................1 Main Unit AM706E ................ 1 Sensor unit AM706H ..............1 Principle of Measurement ............... 2 Function and Operation ..........3 Display Layout ..................3 Function ....................3 Power on/off ..................3 Brightness..................3 OK .................... - Page 4 Technical Specification ................12 Maintenance ..............13 Main Unit ....................13 Sensor Part ................... 13 Calibration ..............14 Installation ..............15 Installation of Main Unit AM706E ............15 Power Adapter Installation ..............16 Installation of Wind sensor AM706H ............. 17 Wiring Explanation ............
-
Page 5: Introduction

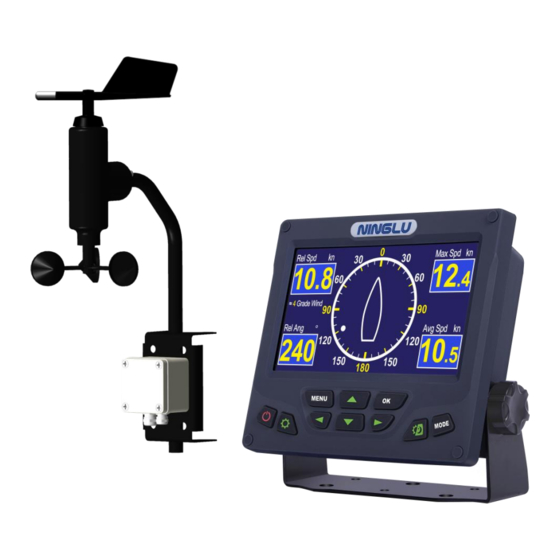

Introduction The Marine Anemometer AM706-H is a combined instrument for wind speed and direction. It can measure relative wind speed (accuracy ±5%, min 0.1m/s), relative wind direction (digital display accuracy 1 ° , analog display accuracy 10 ° and output accuracy ± 1 ° ). GYRO （HDT） , SPEEDLOG （VBW）... -
Page 6: Principle Of Measurement
Introduction Principle of Measurement The wind speed sensor has a rotor with three wind cups which spins as the wind moves past the boat. The Wind speed sensor measures how fast the rotor is spinning to calculate the wind speed. The wind direction sensor has a wind vane which points in the direction that the wind is coming from. -
Page 7: Function And Operation
Function and Operation Display Layout Wind Speed Digital Display Wind Direction Analog Display Wind Direction Digital Display Operation Keyboard Power on/off Menu Mode Brightness Arrow keys Day/Night Mode Function Power on/off Press the on-off key to turn on /off the system. Brightness In Day/Night mode, press the brightness key to adjust the screen brightness. -
Page 8: Day/Night Mode
Function and Operation Press [OK] key to save the settings in the menu and return to the main screen. Day/Night Mode Press the Day/Night mode key to switch the day mode and night mode. MODE Press [MODE] key to select Relative Mode（relative speed + relative angle + max speed + average speed）... -
Page 9: Arrow Keys
Function and Operation Arrow Keys In the menu mode, press up/down arrow keys to select the setting items and press left/right arrow keys to select the setting values. MENU Menu Explanation Item Range Default Wind Alarm [Off 1~60m/s] Speed Unit [m/s km/h knots] Avg Time [1 min 2 min 5 min 10 min]... -
Page 10: Speed Unit
Function and Operation value, the relative speed numbers return to white color and not flash. Then the system will be working normally. Press up/down arrow keys to select the item ‘Wind Alarm’ and press left/right arrow keys to set the wind alarm values. Setting Range is 1~60m/s and default is Off Speed Unit Set the wind speed unit. -
Page 11: Language
Function and Operation Language Set the system language. Press up/down arrow keys to select the item ‘Language’ and press left/right arrow keys to select English and Chinese. Setting Range is English and 中文 and default is English. Back Color Set the background color. Press up/down arrow keys to select the item ‘Back Color’... -
Page 12: Data Transmission For Nmea0183
Function and Operation Data transmission for NMEA0183 Main Unit Output --MWV $--MWV, x.x , a , x.x , a , A*hh<CR><LF> 4 5 6 1) Wind angle, 0 to 359 degrees 2) Reference, R = Relative, T = Ture 3) Wind Speed 4) Wind Speed Units, K=km/h / M=m/s / N=knots 5) Status, A = Data Valid, V = Data invalid 6) Checksum... -
Page 13: Gps Data Input--Vtg
Function and Operation GPS Data Input--VTG $--VTG, x.x,T , x.x,M , x.x,N , x.x,K , a*hh<CR><LF> (1) Course over ground, degree true (2) Course over ground, degree magnetic (3) Speed over ground, knots (4) Speed over ground, km/h (5) Mode indicator， A=Autonomous mode D=Differential mode E=Estimated（dead reckoning）mode... -
Page 14: Speedlog Data Input--Vhw
Function and Operation Speedlog Data Input--VHW $--VHW, x.x,T , x.x,M , x.x,N , x.x,K*hh<CR><LF> (1) Heading, degrees True (2) Heading, degrees Magnetic (3) Speed, knots (4) Speed, km/hr Gyro Data Input--HDT $--HDT, x.x , T * hh<CR><LF> (1) Heading, degree true (2) T = true (3) Checksum value... -
Page 15: Specification
Specification Basic Specification Main Unit Dimension（AM706E）：W188mm H166mm D65 mm Weight： Main Unit 2kg Sensor 8kg 24V DC （20-32V） Power Supply： Power through adapter： 110/220V 50/60Hz AC Power： < 5W (24V DC) NMEA Input Baud Rate： 4800bps (9600 bps for GPS data input) Wind Output Baud Rate：... -
Page 16: Technical Specification
Specification Technical Specification Wind Speed Range： 0～60m/s Wind Speed Accuracy： ± 5%（min0.1m/s） Wind Direction Range： 0～359° Wind Direction Accuracy： ± 1° ≤ Min Start Speed： 0.5m/s... -
Page 17: Maintenance
Maintenance Main Unit The main unit is maintenance-free. If doing the cleaning, use soft cloth and mild detergent, and avoid water drop. Sensor Part When there is ice or dirt on sensor to disturb the normal work, please clear in time. -
Page 18: Calibration
Calibration Calibration of AM706 wind vane after finishing the installation. Press POWER key to turn power on. 按主机上的开关键开机 风向标指向船头的同时， 按下防水接 线盒的按钮。 最后关上防水接线盒。... -
Page 19: Installation
Installation Installation of Main Unit AM706E The Main unit AM706E has three mounting methods, table, hanging and flush mounting. The holder supplied by original factory setting is used in table and hung mounting. For flushing mounting, embed the main unit into the bridge control panel (the dimension is shown below) and tighten the rotary knob to fix the main unit. -
Page 20: Power Adapter Installation
Installation Power Adapter Installation Power adapter（GA-240150），AC220/110V to DC24V，adapter holder and screws. Unit：mm... -
Page 21: Installation Of Wind Sensor Am706H
Installation Installation of Wind sensor AM706H Sensor AM706H should be installed in the place with free wind in the ship. Mounting Holder is φ40 and Activity Radius is 320 mm. After finishing the installation of the main unit and sensor, please make the calibration. Note 1. -
Page 22: Wiring Explanation
Wiring Explanation System View Wind Sensor AM706H... -
Page 23: Wiring Diagram Of Am706E Back Cover
Wiring Explanation Wiring Diagram of AM706E Back Cover... -
Page 24: System External Wiring Diagram
Wiring Explanation System External Wiring Diagram... -
Page 25: Appendix
Appendix Wind Grade Table Grade Speed（m/s） Speed（km/h） Grade Speed（m/s） Speed（km/h） 0.0~0.2 <1 24.5~28.4 89~102 0.3~1.5 28.5~32.6 103~117 1.6~3.3 6~11 32.7~36.9 118~133 3.4~5.4 12~19 37.0~41.4 134~149 5.5~7.9 20~28 41.5~46.1 150~166 8.0~10.7 29~38 46.2~50.9 167~183 10.8~13.8 39~49 51.0~56.0 184~20 13.9~17.1 50~61 56.1~61.2 202~220 ≥61.3 ≥221...
